DxChart<T>.DefaultPane Property

Specifies the pane that displays all axes and series with unspecified Pane property.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
[Parameter]
public string DefaultPane { get; set; }

#Property Value

Type Description
String

The pane name.

#Remarks

The DefaultPane property accepts the value specified by the DxChartPane.Name property. This allows you to specify the pane that displays all axes and series with unspecified Pane property.

Note

When the DefaultPane property value is undefined, the property accepts the value of the last specified pane in the markup.

razor
<DxChart @ref="@chart"
         Data="weatherForecasts"
         Width="100%"
         DefaultPane="TopPane"
         Height="500px">
    <DxChartTitle Text="Annual Weather in Hilo, Hawaii" />
    <DxChartLegend HorizontalAlignment="HorizontalAlignment.Center"
                   VerticalAlignment="VerticalEdge.Bottom"
                   Position="RelativePosition.Outside" />
    <DxChartPane Name="TopPane" />
    <DxChartPane Name="BottomPane" />
    <DxChartRangeAreaSeries Name="Temperature Range, °F"
                            ArgumentField="@(i => new DateTime(2000, i.Date.Month, 1))"
                            ValueField="@((DetailedWeatherSummary  s) => s.AverageTemperatureF)"
                            Color="@(Color.FromArgb(176, 218, 255))">
    </DxChartRangeAreaSeries>
    <DxChartSplineSeries Name="Average Temperature, °F"
                         SummaryMethod="Enumerable.Average"
                         ArgumentField="@(i => new DateTime(2000, i.Date.Month, 1))"
                         ValueField="@((DetailedWeatherSummary  s) => s.AverageTemperatureF)"
                         Color="@(Color.FromArgb(0, 169, 230))">
        <DxChartSeriesLabel Visible="true" ValueFormat="@(ChartElementFormat.FromLdmlString("0#.## °F"))" />
    </DxChartSplineSeries>
    <DxChartBarSeries Pane="BottomPane"
                      Name="Precipitation, inch"
                      ArgumentField="@(i => new DateTime(2000, i.Date.Month, 1))"
                      SummaryMethod="Enumerable.Average"
                      ValueField="@((DetailedWeatherSummary  s) => s.PrecipitationInch)"
                      Color="@(Color.FromArgb(220, 53, 69))">
        <DxChartSeriesLabel Visible="true"
                            ValueFormat="@(ChartElementFormat.FromLdmlString("0#.## inch"))" />
    </DxChartBarSeries>
    <DxChartValueAxis>
        <DxChartAxisTitle Text="Temperature, °F" />
    </DxChartValueAxis>
    <DxChartValueAxis Pane="BottomPane"
                        SideMarginsEnabled="true">
        <DxChartAxisTitle Text="Precipitation, inch" />
    </DxChartValueAxis>
    <DxChartArgumentAxis>
        <DxChartAxisLabel Format="ChartElementFormat.Month" />
    </DxChartArgumentAxis>
</DxChart>

@code {
    IEnumerable<DetailedWeatherSummary> weatherForecasts;

    protected override async Task OnInitializedAsync() {
        var weatherForecasts = await WeatherSummaryDataProvider.GetDataAsync();
        this.weatherForecasts = weatherForecasts.Where((DetailedWeatherSummary i) => i.City == "HILO");
    }
}

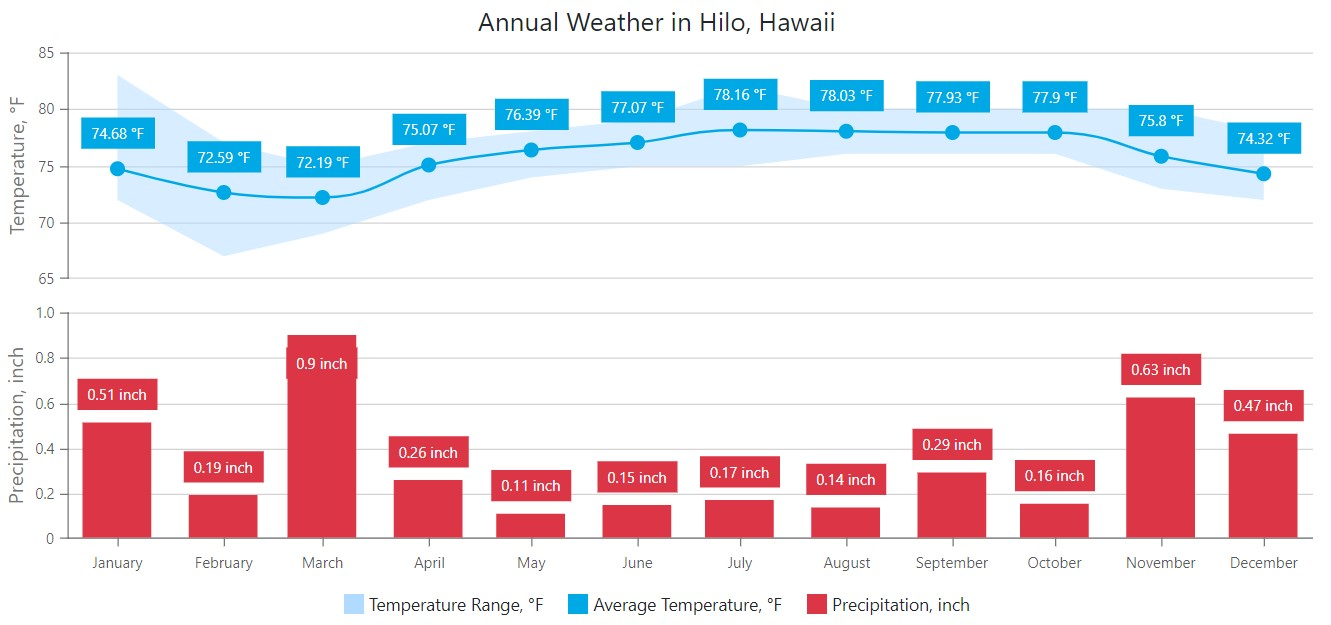

DxChart - Default pane
