NavigationUrlMatchMode Enum

Lists values that specify how navigation components synchronize automatic item selection and the current browser URL.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
public enum NavigationUrlMatchMode

#Members

Name Description
None

Automatic selection synchronization is disabled.

CurrentPath

The component selects an item if the item’s NavigateUrl property value matches the current browser URL. The query string appended to the URL is ignored.

Prefix

The component selects an item if the item’s NavigateUrl property value starts with the current browser URL and vice versa.

Exact

The component selects an item if the item’s NavigateUrl property value matches the current browser URL.

#Related API Members

The following properties accept/return NavigationUrlMatchMode values:

#Remarks

The component can automatically select and expand to an item based on the item’s NavigateUrl property value and the current browser URL. Use the UrlMatchMode property and set the SelectionMode property value to Single to enable this functionality.

In the following example, the Accordion selects an item if the NavigateUrl property value matches the current page’s address:

razor
<div class="p-2">
    <DxAccordion UrlMatchMode="NavigationUrlMatchMode.Exact"
                 SelectionMode="NavigationSelectionMode.Single">
        <Items>
            <DxAccordionItem Text="Shapes" NavigateUrl="shapes">
                <Items>
                    <DxAccordionItem Text="Circle" />
                    <DxAccordionItem Text="Square" />
                </Items>
            </DxAccordionItem>
            <DxAccordionItem Text="Templates" />
        </Items>
    </DxAccordion>
</div>

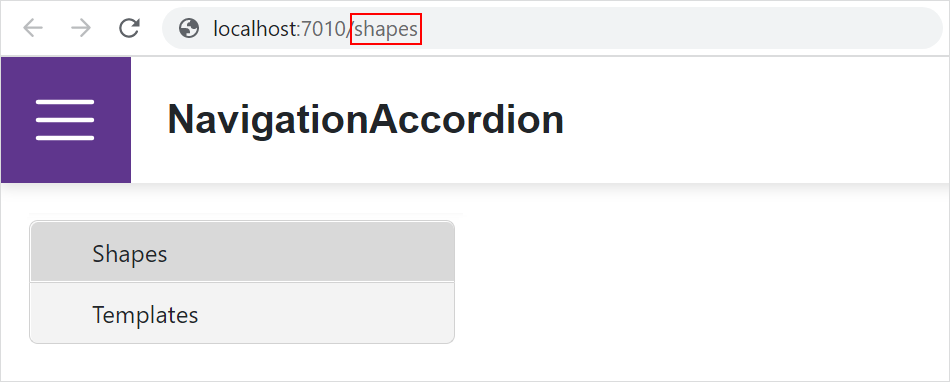

Url Match Mode Result

You can also use the DxAccordionItem.UrlMatchMode property to specify this option for individual items.
