ChartEventPanKey Enum

Lists values that specify the key that allows users to pan the chart when the AllowDragToZoom property is enabled.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
public enum ChartEventPanKey

#Members

Name Description
Alt

The Alt key.

Ctrl

The Ctrl key.

Meta

The Meta key (the Windows key for Windows OS; the Cmd key for Mac OS).

Shift

The Shift key.

#Related API Members

The following properties accept/return ChartEventPanKey values:

#Remarks

When the AllowDragToZoom property is set to true, users can not pan the chart with the mouse. To enable panning, users should press the key specified by the PanKey property.

The following example zooms the selected area and pans the chart when the Shift key is pressed:

razor
<DxChart Data="@DataSource"
         Width="100%">
    <DxChartTitle Text="Life Expectancy vs. Birth Rate" />
    <DxChartLegend Position="RelativePosition.Inside"
                   VerticalAlignment="VerticalEdge.Top"
                   HorizontalAlignment="HorizontalAlignment.Right" />
    <DxChartScatterSeries ArgumentField="@((BirthLife i) => i.LifeExp)"
                          ValueField="@((BirthLife i) => i.BirthRate)"
                          Filter="@((BirthLife i) => i.Year == 1970)"
                          Name="1970">
        <DxChartSeriesPoint Size="8" />
    </DxChartScatterSeries>
    <DxChartScatterSeries ArgumentField="@((BirthLife i) => i.LifeExp)"
                          ValueField="@((BirthLife i) => i.BirthRate)"
                          Filter="@((BirthLife i) => i.Year == 2010)"
                          Name="2010">
        <DxChartSeriesPoint Size="8" />
    </DxChartScatterSeries>
    <DxChartArgumentAxis>
        <DxChartAxisTitle Text="Life Expectancy" />
    </DxChartArgumentAxis>
    <DxChartValueAxis>
        <DxChartAxisTitle Text="Birth Rate" />
    </DxChartValueAxis>
    <DxChartTooltip Enabled="true">
        <div style="margin: 0.75rem">
            <div>@(((BirthLife)context.Point.DataItems.First()).Country) @(((BirthLife)context.Point.DataItems.First()).Year)</div>
        </div>
    </DxChartTooltip>
    <DxChartZoomAndPanSettings ArgumentAxisZoomAndPanMode="ChartAxisZoomAndPanMode.Both"
                               ValueAxisZoomAndPanMode="ChartAxisZoomAndPanMode.Both"
                               AllowDragToZoom="true"
                               AllowMouseWheel="true"
                               PanKey="ChartEventPanKey.Shift" />
</DxChart>

@code {
    IEnumerable<BirthLife> DataSource = Enumerable.Empty<BirthLife>();
    protected override void OnInitialized() {
        DataSource = ChartBirthLifeDataProvider.GenerateData();
    }
}

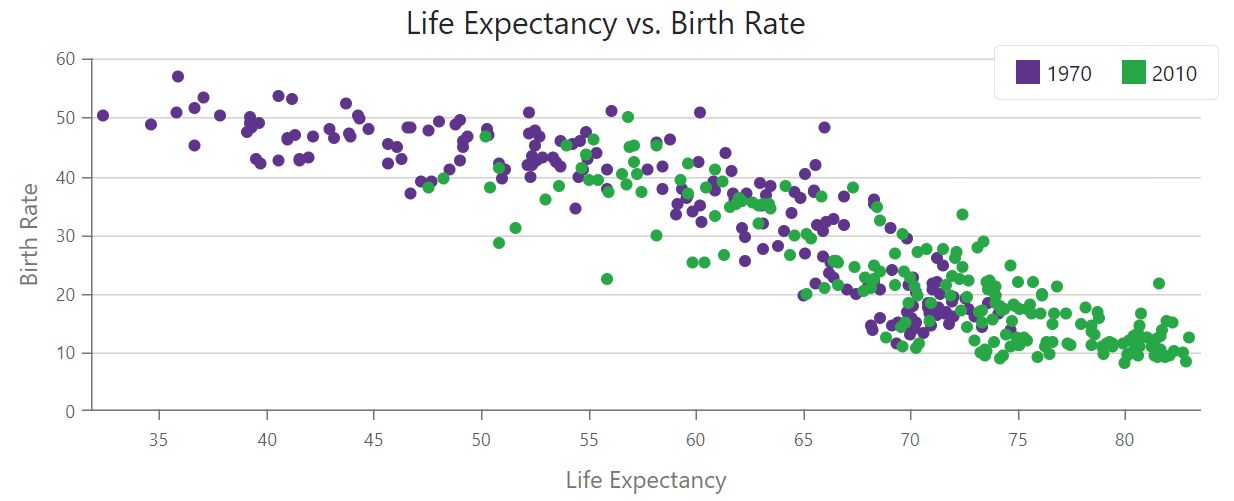

DxChart - Zoom Selected Area

Run Demo: Chart - Zoom Selected Area
