DxTimeEdit<T> Class

A time editor with a drop-down time picker.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

Declaration

public class DxTimeEdit<T> :
    DxMaskedInputBase<T>,
    IDropDownOwner,
    IFocusableEditor

Type Parameters

Name	Description
T	The data type. Supported types: DateTime, TimeSpan, TimeOnly, and their nullable instances.

Remarks

The DevExpress Time Edit for Blazor (<DxTimeEdit>) displays a drop-down time picker. A user can enter the time into the text box or pick it in the drop-down window.

The component’s appearance depends on the current culture. If the culture does not use a 12-hour time format, time values are in 24-hour format and the drop-down window’s AM/PM column is not displayed.

Run Demo: Time Edit

Add a Time Edit to a Project

Follow the steps below to add the Time Edit component to an application:

1. Use a DevExpress Project Template to create a new Blazor Server or Blazor WebAssembly application. If you use a Microsoft project template or already have a Blazor project, configure your project to incorporate DevExpress Blazor components.
2. Add the <DxTimeEdit>…</DxTimeEdit> markup to a .razor file.
3. Configure the component: specify the editor’s value, apply a mask, add a clear button and placeholder, and so on (see the sections below).

.NET 8 and .NET 9 Specifics

Blazor Time Edit does not support static render mode. Enable interactivity to use the component in your application. Refer to the following topic for more details: Enable Interactive Render Mode.

Edit Value

Use the Time property to specify or read the control’s edit value. To limit the value range, use the MinTime and MaxTime properties. Refer to the following section for details: Set a Time Range.

You can use the @bind attribute to bind the Time property to a data field. Refer to the following help topic for details: Two-Way Data Binding.

<DxTimeEdit @bind-Time="@TimeValue" ></DxTimeEdit>

@code {
    TimeSpan TimeValue { get; set; } = DateTime.Now.TimeOfDay;
}

If you do not use two-way binding, handle the TimeChanged event to respond to the editor’s time change. The following code snippet enables the Update Time button if the specified value differs from the system time.

<DxTimeEdit Time="@Time"
            TimeChanged="@((TimeSpan newValue) => OnTimeChanged(newValue))">
</DxTimeEdit>

<button type="button" class="btn btn-primary" disabled="@IsDisabled">Update Time</button>

@code {
    TimeSpan Time = DateTime.Now.TimeOfDay;
    bool IsDisabled = true;

    void OnTimeChanged(TimeSpan newValue) {
        Time = newValue;
        if (newValue != DateTime.Now.TimeOfDay)
            IsDisabled = false;
        else IsDisabled = true;
    }
}

Apply a Mask

The Time Edit component supports date-time masks. Apply a date-time mask to the component to display its value in a specific time format. Users can navigate between mask sections (such as hours, minutes, and seconds) and increase/decrease section values with the Up and Down arrow keys and mouse wheel.

Run Demo: Mask

Assign a predefined or custom pattern to the Mask property to apply a mask. To customize mask settings, add the DxDateTimeMaskProperties component to the Time Edit markup.

The following code snippet applies a date-time mask:

<DxTimeEdit @bind-Time="@Time"
            Mask="@DateTimeMask.ShortTime">
    <DxDateTimeMaskProperties CaretMode="@MaskCaretMode.Advancing" />
</DxTimeEdit>

@code {
    DateTime Time { get; set; } = DateTime.Now;
}

Null Time Values and Placeholder

If the Time Edit component is bound to a nullable DateTime or TimeSpan object, users can delete the editor’s value (set it to null).

You can also set the ClearButtonDisplayMode property to Auto to show the Clear button when the editor has a non-null value. Use the NullText property to specify the prompt text (placeholder) when the editor’s value is null.

<DxTimeEdit @bind-Time="@TimeValue"
            ClearButtonDisplayMode="DataEditorClearButtonDisplayMode.Auto"
            NullText="Select time...">
</DxTimeEdit>

@code {
    TimeSpan? TimeValue { get; set; } = DateTime.Now.TimeOfDay;
}

Run Demo: Time Edit - Null Time Values and Placeholder

Time Format

Use the following properties to specify a value format:

Format

Applies the same time format in display and edit modes.

DisplayFormat

Specifies the time format in display mode.

See the Standard Date and Time Format Strings and Custom Date and Time Format Strings MSDN articles for more information about supported formats.

The following example applies the a 12-hour clock format in display mode and the a 24-hour clock format in edit mode:

<DxTimeEdit @bind-Time="@TimeValue"
            Format="HH:mm"
            DisplayFormat="@DisplayFormat"></DxTimeEdit>

@code {
    TimeSpan TimeValue { get; set; } = DateTime.Now.TimeOfDay;
    string DisplayFormat { get; } = string.IsNullOrEmpty(System.Globalization.CultureInfo.CurrentCulture.DateTimeFormat.AMDesignator) ? "HH:mm" : "h:mm tt";
}

Run Demo: Time Edit - Display Format

You can also specify Time Edit’s scroll picker format. Use the ScrollPickerFormat property to do this.

<DxTimeEdit @bind-Time="TimeValue" ScrollPickerFormat="tt hh" Format="hh tt" />

@code {
    TimeSpan? TimeValue { get; set; } = DateTime.Now.TimeOfDay;
}

Set a Time Range

Use the MinTime and MaxTime properties to specify a range of available time values. The Time Edit’s time picker disables times outside the range.

The default minimum and maximum values are System.DateTime.MinValue and System.DateTime.MaxValue. Custom values should meet the following criteria:

• MaxTime is greater than MinTime.
• MaxTime is less than 24 hours.
• MinTime is greater than or equal to zero.

Note

• If a user types a value that is out of the range, the Time Edit keeps the previously selected time.
• The Time Edit shows a notification message each time a user tries to navigate to a time value that is out of the range. To customize the notification text, use the OutOfRangeNotificationText property.
• You can set the Time property to a time outside the range. In this case, the Time Edit shows this specified time, and the Time Edit’s picker displays the closest available time.

The following code snippet implements the Time Edit component that allows users to select time from the current hour.

<DxTimeEdit @bind-Time="@TimeValue"
            MinTime="@MinTime"
            MaxTime="@MaxTime">
</DxTimeEdit>

@code {
    TimeSpan TimeValue { get; set; } = DateTime.Now.TimeOfDay;
    TimeSpan MinTime { get; set; }
    TimeSpan MaxTime { get; set; }

    protected override void OnInitialized() {
        MinTime = new TimeSpan(TimeValue.Hours, 0, 0);
        MaxTime = new TimeSpan(TimeValue.Hours, 59, 59);
    }
}

Run Demo: Time Edit — Time Range

Appearance Customization

Use the SizeMode property to specify a Time Edit size. The following code snippet applies different size modes to Time Edit components.

<DxTimeEdit @bind-Time="@TimeValue" SizeMode="SizeMode.Small"></DxTimeEdit>

<DxTimeEdit @bind-Time="@TimeValue" SizeMode="SizeMode.Medium"></DxTimeEdit>

<DxTimeEdit @bind-Time="@TimeValue" SizeMode="SizeMode.Large"></DxTimeEdit>

@code {
    TimeSpan TimeValue { get; set; } = DateTime.Now.TimeOfDay;
}

To customize Time Edit input, use the InputCssClass property. The following code snippet applies several CSS rules to the input:

<style>
    .my-style {
        height: 50px;
        background: orange;
        font-weight: 800;
    }
</style>

<DxTimeEdit Time="DateTime.Now" InputCssClass="my-style"></DxTimeEdit>

For more information, refer to the following help topics:

• Size Modes
• CSS Classes

Hide Built-In Drop-Down Button

Set the ShowDropDownButton to false to hide the built-in button that invokes a drop-down time picker. If you need a custom drop-down button, you can add a new command button.

Add Command Buttons

You can add custom command buttons to the Time Edit component. Refer to Command Buttons for more information.

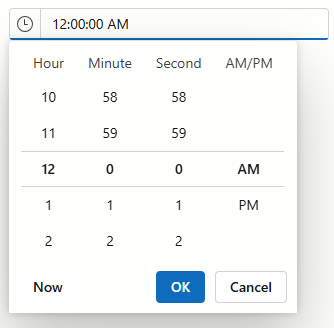

The following code snippet hides the built-in drop-down button, adds a new drop-down button, and specifies its position.

<DxTimeEdit Time="DateTime.Today.TimeOfDay" ShowDropDownButton=false>
    <Buttons>
        <DxTimeEditDropDownButton Position="EditorButtonPosition.Left"/>
    </Buttons>
</DxTimeEdit>

Input Validation

You can add a standalone Time Edit or a Form Layout to the Blazor’s standard EditForm. This form validates user input and informs users of errors. Use the model’s data annotation attributes to specify input restrictions.

Razor

<EditForm Model="@starship" Context="EditFormContext">
    <DataAnnotationsValidator />
    <DxFormLayout >
        <DxFormLayoutItem Caption="Time:" ColSpanMd="6" >
            <Template >
                <DxTimeEdit @bind-Time="@starship.Time" />
            </Template>
        </DxFormLayoutItem>
        @*...*@
    </DxFormLayout>
</EditForm>

@code {
    private Starship starship=new Starship();
}

Starship

using System.ComponentModel.DataAnnotations;

public class Starship
{
    [Required]
    [InvalidAttributeAttribute(ErrorMessage = "The Time value cannot be later than 6 PM.")]
    public TimeSpan Time { get; set; }
    // ...
}

[AttributeUsage(AttributeTargets.Property | AttributeTargets.Field | AttributeTargets.Parameter, AllowMultiple = false)]
public class InvalidAttributeAttribute: ValidationAttribute
{
    public override bool IsValid(object value)
    {
        return (TimeSpan)value <= new TimeSpan(18, 0, 0);
    }
}

For more information, refer to the following help topic: Validate Input.

Run Demo: Form Validation

Drop-Down Window Direction

Use the DropDownDirection property to specify the direction in which the drop-down window is displayed relative to the input element. The default value is Down. The following code changes the direction to Up:

<DxTimeEdit Time="DateTime.Now.TimeOfDay" DropDownDirection="DropDownDirection.Up" />

Note

If the editor is close to a browser window’s edge and there is not enough space to display the drop-down window in the specified direction, the drop-down window is displayed in the opposite direction.

Keyboard Navigation

The DevExpress Blazor Time Edit supports keyboard navigation. Users can navigate to the editor’s input element and within the time picker.

Run Demo: Time Edit

Shortcut Keys for Input Element

The following shortcut keys are available when the editor’s input element is focused:

Shortcut Keys	Description
Tab	Moves focus to the next focusable element on a page. Note that the drop-down button, custom buttons, and the Clear button are excluded from the page tab sequence.
Shift + Tab	Moves focus to the previous focusable element on a page.
Alt + Down Arrow	Opens the drop-down time picker.

Shortcut Keys for Drop-Down Time Picker

The following shortcut keys are available when the drop-down time picker is open:

Shortcut Keys	Description
Right Arrow	Moves focus to the next carousel (Hour, Minute, Second, AM/PM). If the current carousel is the last, focus does not change.
Left Arrow	Moves focus to the previous carousel (AM/PM, Second, Minute, Hour). If the current carousel is the first, focus does not change.
Up Arrow	Selects the previous value in the current carousel.
Down Arrow	Selects the next value in the current carousel.
Tab	Moves focus to the next focusable element in the time picker. When focus is on the last focusable element in the time picker, moves focus to the first focusable element.
Shift + Tab	Moves focus to the previous focusable element in the time picker. When focus is on the first focusable element in the time picker, moves focus to the last focusable element.
Space, Enter	Selects the time and moves focus to the next carousel. If the current carousel is the last, closes the time picker, updates the Time parameter value, and moves focus to the input element.
Esc, Alt + Up Arrow	Closes the time picker and moves focus to the input element.

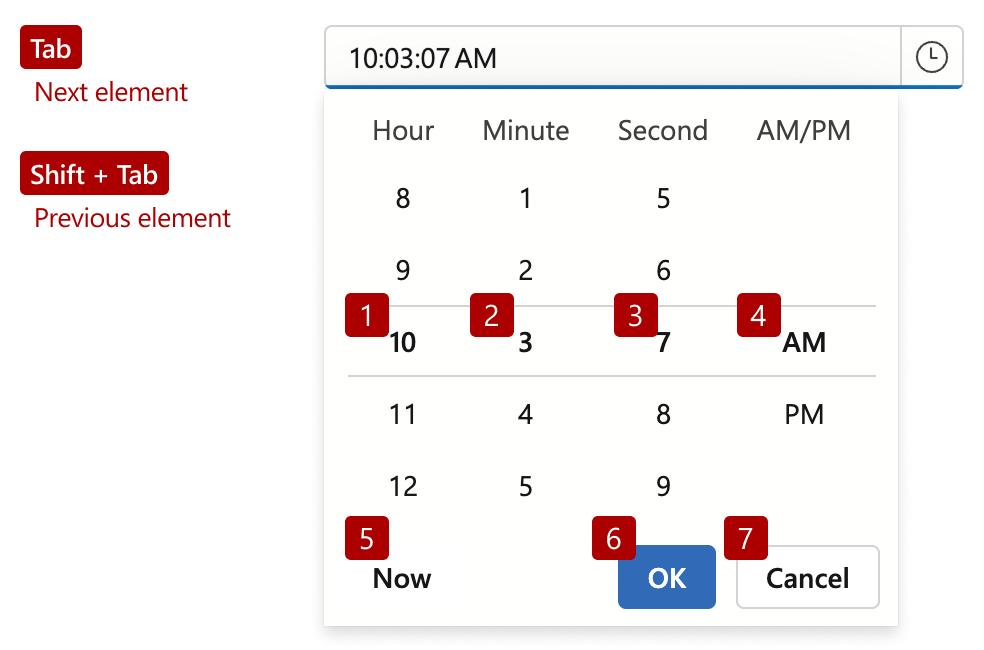

Tab Sequence in Time Picker

Read-Only State

<DxTimeEdit> supports a read-only state. Set the ReadOnly property to true to activate this option.

<DxTimeEdit @bind-Time="@Time" ReadOnly="true"> </DxTimeEdit>

@code {
  TimeSpan Time = DateTime.Now.TimeOfDay;
}

Run Demo: Time Edit - Read-Only and Disabled Modes

HTML Attributes and Events

You can use HTML attributes and events to configure the Time Edit.

<DxTimeEdit Time="DateTime.Now.TimeOfDay"
            id="time"
            name="time"
            autocomplete="on"
            @oncopy="MyFunction">
</DxTimeEdit>

@code {
    void MyFunction(){
        //...
    }
}

Troubleshooting

If a Blazor application throws unexpected exceptions, refer to the following help topic: Troubleshooting.

Implements

IHandleEvent

IHandleAfterRender

IAsyncDisposable

IComponent

Inheritance

Object

ComponentBase

DxComponentBase

DevExpress.Blazor.Base.DxAsyncDisposableComponent

DevExpress.Blazor.Base.DxDecoratedComponent

DxComponent

DxDataEditor<T>

DxInputDataEditorBase<T>

DxMaskedInputBase<T>

DxTimeEdit<T>
