GridColumnGroupFooterTemplateContext Class

Stores information about a group footer cell in the Grid and is passed as the context parameter to the DxGrid.ColumnGroupFooterTemplate and DxGridColumn.GroupFooterTemplate properties.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

Declaration

public class GridColumnGroupFooterTemplateContext

Remarks

The DxGrid.ColumnGroupFooterTemplate and DxGridColumn.GroupFooterTemplate accept a GridColumnGroupFooterTemplateContext object as the context parameter. You can use the parameter’s members to get information about the current group footer cell.

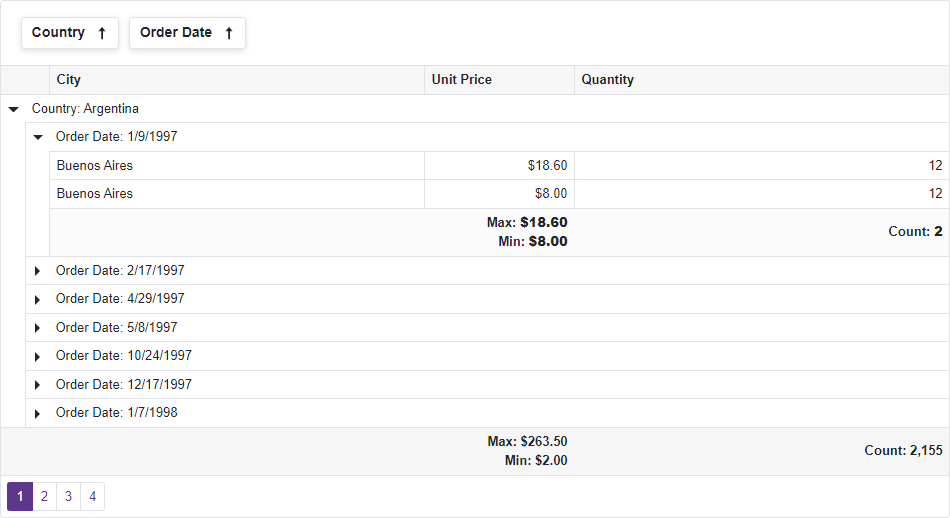

The following code snippet makes all group summary values bold.

Razor

@using Microsoft.EntityFrameworkCore
@inject IDbContextFactory<NorthwindContext> NorthwindContextFactory
@implements IDisposable

<DxGrid Data="@Data" ShowGroupPanel="true">
    <Columns>
        <DxGridDataColumn FieldName="Country" GroupIndex="0" />
        <DxGridDataColumn FieldName="City" />
        <DxGridDataColumn FieldName="OrderDate" GroupIndex="1" />
        <DxGridDataColumn FieldName="UnitPrice" DisplayFormat="c" Width="150px" />
        <DxGridDataColumn FieldName="Quantity" />
    </Columns>
    <ColumnGroupFooterTemplate>
        @{
            var summaryItems = context.SummaryItems;
            if (summaryItems.Any()) {
                foreach (var i in summaryItems) {
                    @context.Grid.GetGroupSummaryLabel(i, context.GroupRowVisibleIndex)
                    <text>: </text>
                    <b>@context.Grid.GetGroupSummaryFormattedValue(i, context.GroupRowVisibleIndex)</b><br />
                }
            }
        }
    </ColumnGroupFooterTemplate>
    <TotalSummary>
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Max" FieldName="UnitPrice" />
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Min" FieldName="UnitPrice" />
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Count" FieldName="Quantity" />
    </TotalSummary>
    <GroupSummary>
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Max" FieldName="UnitPrice" FooterColumnName="UnitPrice" />
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Min" FieldName="UnitPrice" FooterColumnName="UnitPrice" />
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Count" FieldName="Quantity" FooterColumnName="Quantity" />
    </GroupSummary>
</DxGrid>

@code {
    object Data { get; set; }
    NorthwindContext Northwind { get; set; }

    protected override void OnInitialized() {
        Northwind = NorthwindContextFactory.CreateDbContext();
        Data = Northwind.Invoices
            .ToList();
    }

    public void Dispose() {
        Northwind?.Dispose();
    }

}

Invoice

using System;
#nullable disable

namespace Grid.Northwind {
    public partial class Invoice {
        public string ShipName { get; set; }
        public string ShipAddress { get; set; }
        public string ShipCity { get; set; }
        public string ShipRegion { get; set; }
        public string ShipPostalCode { get; set; }
        public string ShipCountry { get; set; }
        public string CustomerId { get; set; }
        public string CustomerName { get; set; }
        public string Address { get; set; }
        public string City { get; set; }
        public string Region { get; set; }
        public string PostalCode { get; set; }
        public string Country { get; set; }
        public string Salesperson { get; set; }
        public int OrderId { get; set; }
        public DateTime? OrderDate { get; set; }
        public DateTime? RequiredDate { get; set; }
        public DateTime? ShippedDate { get; set; }
        public string ShipperName { get; set; }
        public int ProductId { get; set; }
        public string ProductName { get; set; }
        public decimal UnitPrice { get; set; }
        public short Quantity { get; set; }
        public float Discount { get; set; }
        public decimal? ExtendedPrice { get; set; }
        public decimal? Freight { get; set; }
    }
}

NorthwindContext.cs

using Microsoft.EntityFrameworkCore;
#nullable disable

namespace Grid.Northwind {
    public partial class NorthwindContext : DbContext {

        public NorthwindContext(DbContextOptions<NorthwindContext> options)
            : base(options) {
        }

        public virtual DbSet<Category> Categories { get; set; }
        public virtual DbSet<Customer> Customers { get; set; }
        public virtual DbSet<Invoice> Invoices { get; set; }
        public virtual DbSet<Order> Orders { get; set; }
        public virtual DbSet<OrderDetail> OrderDetails { get; set; }
        public virtual DbSet<Product> Products { get; set; }
        public virtual DbSet<Shipper> Shippers { get; set; }
        public virtual DbSet<Supplier> Suppliers { get; set; }
        public virtual DbSet<Employee> Employees { get; set; }

        protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder) {
            if(!optionsBuilder.IsConfigured) {
                optionsBuilder.UseSqlServer("Server=.\\sqlexpress;Database=Northwind;Integrated Security=true");
            }
        }

        protected override void OnModelCreating(ModelBuilder modelBuilder) {
            modelBuilder.HasAnnotation("Relational:Collation", "SQL_Latin1_General_CP1_CI_AS");
            modelBuilder.Entity<Category>(entity => {
                entity.HasIndex(e => e.CategoryName, "CategoryName");
                entity.Property(e => e.CategoryId).HasColumnName("CategoryID");
                entity.Property(e => e.CategoryName)
                    .IsRequired()
                    .HasMaxLength(15);
                entity.Property(e => e.Description).HasColumnType("ntext");
                entity.Property(e => e.Picture).HasColumnType("image");
            });
            modelBuilder.Entity<Customer>(entity => {
                entity.HasIndex(e => e.City, "City");
                entity.HasIndex(e => e.CompanyName, "CompanyName");
                entity.HasIndex(e => e.PostalCode, "PostalCode");
                entity.HasIndex(e => e.Region, "Region");
                entity.Property(e => e.CustomerId)
                    .HasMaxLength(5)
                    .HasColumnName("CustomerID")
                    .IsFixedLength(true);
                entity.Property(e => e.Address).HasMaxLength(60);
                entity.Property(e => e.City).HasMaxLength(15);
                entity.Property(e => e.CompanyName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.ContactName).HasMaxLength(30);
                entity.Property(e => e.ContactTitle).HasMaxLength(30);
                entity.Property(e => e.Country).HasMaxLength(15);
                entity.Property(e => e.Fax).HasMaxLength(24);
                entity.Property(e => e.Phone).HasMaxLength(24);
                entity.Property(e => e.PostalCode).HasMaxLength(10);
                entity.Property(e => e.Region).HasMaxLength(15);
            });
            modelBuilder.Entity<Invoice>(entity => {
                entity.HasNoKey();
                entity.ToView("Invoices");
                entity.Property(e => e.Address).HasMaxLength(60);
                entity.Property(e => e.City).HasMaxLength(15);
                entity.Property(e => e.Country).HasMaxLength(15);
                entity.Property(e => e.CustomerId)
                    .HasMaxLength(5)
                    .HasColumnName("CustomerID")
                    .IsFixedLength(true);
                entity.Property(e => e.CustomerName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.ExtendedPrice).HasColumnType("money");
                entity.Property(e => e.Freight).HasColumnType("money");
                entity.Property(e => e.OrderDate).HasColumnType("datetime");
                entity.Property(e => e.OrderId).HasColumnName("OrderID");
                entity.Property(e => e.PostalCode).HasMaxLength(10);
                entity.Property(e => e.ProductId).HasColumnName("ProductID");
                entity.Property(e => e.ProductName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.Region).HasMaxLength(15);
                entity.Property(e => e.RequiredDate).HasColumnType("datetime");
                entity.Property(e => e.Salesperson)
                    .IsRequired()
                    .HasMaxLength(31);
                entity.Property(e => e.ShipAddress).HasMaxLength(60);
                entity.Property(e => e.ShipCity).HasMaxLength(15);
                entity.Property(e => e.ShipCountry).HasMaxLength(15);
                entity.Property(e => e.ShipName).HasMaxLength(40);
                entity.Property(e => e.ShipPostalCode).HasMaxLength(10);
                entity.Property(e => e.ShipRegion).HasMaxLength(15);
                entity.Property(e => e.ShippedDate).HasColumnType("datetime");
                entity.Property(e => e.ShipperName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.UnitPrice).HasColumnType("money");
            });
            modelBuilder.Entity<Order>(entity => {
                entity.HasIndex(e => e.CustomerId, "CustomerID");
                entity.HasIndex(e => e.CustomerId, "CustomersOrders");
                entity.HasIndex(e => e.EmployeeId, "EmployeeID");
                entity.HasIndex(e => e.EmployeeId, "EmployeesOrders");
                entity.HasIndex(e => e.OrderDate, "OrderDate");
                entity.HasIndex(e => e.ShipPostalCode, "ShipPostalCode");
                entity.HasIndex(e => e.ShippedDate, "ShippedDate");
                entity.HasIndex(e => e.ShipVia, "ShippersOrders");
                entity.Property(e => e.OrderId).HasColumnName("OrderID");
                entity.Property(e => e.CustomerId)
                    .HasMaxLength(5)
                    .HasColumnName("CustomerID")
                    .IsFixedLength(true);
                entity.Property(e => e.EmployeeId).HasColumnName("EmployeeID");
                entity.Property(e => e.Freight)
                    .HasColumnType("money")
                    .HasDefaultValueSql("((0))");
                entity.Property(e => e.OrderDate).HasColumnType("datetime");
                entity.Property(e => e.RequiredDate).HasColumnType("datetime");
                entity.Property(e => e.ShipAddress).HasMaxLength(60);
                entity.Property(e => e.ShipCity).HasMaxLength(15);
                entity.Property(e => e.ShipCountry).HasMaxLength(15);
                entity.Property(e => e.ShipName).HasMaxLength(40);
                entity.Property(e => e.ShipPostalCode).HasMaxLength(10);
                entity.Property(e => e.ShipRegion).HasMaxLength(15);
                entity.Property(e => e.ShippedDate).HasColumnType("datetime");
                entity.HasOne(d => d.Customer)
                    .WithMany(p => p.Orders)
                    .HasForeignKey(d => d.CustomerId)
                    .HasConstraintName("FK_Orders_Customers");
                entity.HasOne(d => d.ShipViaNavigation)
                    .WithMany(p => p.Orders)
                    .HasForeignKey(d => d.ShipVia)
                    .HasConstraintName("FK_Orders_Shippers");
            });
            modelBuilder.Entity<OrderDetail>(entity => {
                entity.HasKey(e => new { e.OrderId, e.ProductId })
                    .HasName("PK_Order_Details");
                entity.ToTable("Order Details");
                entity.HasIndex(e => e.OrderId, "OrderID");
                entity.HasIndex(e => e.OrderId, "OrdersOrder_Details");
                entity.HasIndex(e => e.ProductId, "ProductID");
                entity.HasIndex(e => e.ProductId, "ProductsOrder_Details");
                entity.Property(e => e.OrderId).HasColumnName("OrderID");
                entity.Property(e => e.ProductId).HasColumnName("ProductID");
                entity.Property(e => e.Quantity).HasDefaultValueSql("((1))");
                entity.Property(e => e.UnitPrice).HasColumnType("money");
                entity.HasOne(d => d.Order)
                    .WithMany(p => p.OrderDetails)
                    .HasForeignKey(d => d.OrderId)
                    .OnDelete(DeleteBehavior.ClientSetNull)
                    .HasConstraintName("FK_Order_Details_Orders");
                entity.HasOne(d => d.Product)
                    .WithMany(p => p.OrderDetails)
                    .HasForeignKey(d => d.ProductId)
                    .OnDelete(DeleteBehavior.ClientSetNull)
                    .HasConstraintName("FK_Order_Details_Products");
            });
            modelBuilder.Entity<Product>(entity => {
                entity.HasIndex(e => e.CategoryId, "CategoriesProducts");
                entity.HasIndex(e => e.CategoryId, "CategoryID");
                entity.HasIndex(e => e.ProductName, "ProductName");
                entity.HasIndex(e => e.SupplierId, "SupplierID");
                entity.HasIndex(e => e.SupplierId, "SuppliersProducts");
                entity.Property(e => e.ProductId).HasColumnName("ProductID");
                entity.Property(e => e.CategoryId).HasColumnName("CategoryID");
                entity.Property(e => e.ProductName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.QuantityPerUnit).HasMaxLength(20);
                entity.Property(e => e.ReorderLevel).HasDefaultValueSql("((0))");
                entity.Property(e => e.SupplierId).HasColumnName("SupplierID");
                entity.Property(e => e.UnitPrice)
                    .HasColumnType("money")
                    .HasDefaultValueSql("((0))");
                entity.Property(e => e.UnitsInStock).HasDefaultValueSql("((0))");
                entity.Property(e => e.UnitsOnOrder).HasDefaultValueSql("((0))");
                entity.HasOne(d => d.Category)
                    .WithMany(p => p.Products)
                    .HasForeignKey(d => d.CategoryId)
                    .HasConstraintName("FK_Products_Categories");
                entity.HasOne(d => d.Supplier)
                    .WithMany(p => p.Products)
                    .HasForeignKey(d => d.SupplierId)
                    .HasConstraintName("FK_Products_Suppliers");
            });
            modelBuilder.Entity<Shipper>(entity => {
                entity.Property(e => e.ShipperId).HasColumnName("ShipperID");
                entity.Property(e => e.CompanyName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.Phone).HasMaxLength(24);
            });
            modelBuilder.Entity<Supplier>(entity => {
                entity.HasIndex(e => e.CompanyName, "CompanyName");
                entity.HasIndex(e => e.PostalCode, "PostalCode");
                entity.Property(e => e.SupplierId).HasColumnName("SupplierID");
                entity.Property(e => e.Address).HasMaxLength(60);
                entity.Property(e => e.City).HasMaxLength(15);
                entity.Property(e => e.CompanyName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.ContactName).HasMaxLength(30);
                entity.Property(e => e.ContactTitle).HasMaxLength(30);
                entity.Property(e => e.Country).HasMaxLength(15);
                entity.Property(e => e.Fax).HasMaxLength(24);
                entity.Property(e => e.HomePage).HasColumnType("ntext");
                entity.Property(e => e.Phone).HasMaxLength(24);
                entity.Property(e => e.PostalCode).HasMaxLength(10);
                entity.Property(e => e.Region).HasMaxLength(15);
            });
            modelBuilder.Entity<Employee>(entity => {
                entity.HasIndex(e => e.EmployeeId, "EmployeeId");
                entity.HasIndex(e => e.LastName, "LastName");
                entity.HasIndex(e => e.FirstName, "FirstName");
                entity.HasIndex(e => e.Title, "Title");
                entity.HasIndex(e => e.BirthDate, "BirthDate");
                entity.HasIndex(e => e.HireDate, "HireDate");
                entity.HasIndex(e => e.Notes, "Notes");
            });
            OnModelCreatingPartial(modelBuilder);
        }

        partial void OnModelCreatingPartial(ModelBuilder modelBuilder);
    }
}

Program.cs

using Microsoft.EntityFrameworkCore;
// ...
builder.Services.AddDbContextFactory<NorthwindContext>((sp, options) => {
    var env = sp.GetRequiredService<IWebHostEnvironment>();
    var dbPath = Path.Combine(env.ContentRootPath, "Northwind-5e44b51f.mdf");
    options.UseSqlServer("Server=(localdb)\\MSSQLLocalDB;Integrated Security=true;AttachDbFileName=" + dbPath);
});

Inheritance

Object

GridColumnGroupFooterTemplateContext
