DxChartStackedLineSeries<T, TArgument, TValue> Class

Defines a stacked line series.

Assembly: DevExpress.Blazor.v25.2.dll

Declaration

public class DxChartStackedLineSeries<T, TArgument, TValue> :
    DxChartLineSeriesBase<T, TArgument, TValue>

Type Parameters

Name	Description
T	The data type.
TArgument	The argument type.
TValue	The value type.

Remarks

Stacked line series visualize cumulative values (you need to add more than one series). The topmost series displays the total of all available values. Follow the steps below to create a stacked line series:

Use the DxChart.Data property to specify a data source.
Add a DxChartStackedLineSeries object to chart markup.
Use series ArgumentField and ValueField properties to specify data source fields that supply arguments and values for chart points.
Optional. Specify series Filter and SummaryMethod properties to filter and aggregate series values.

The following example filters data by region. It also groups arguments by date and calculates aggregate values using the Enumerable.Sum method. For a sample data source, refer to our GitHub repository.

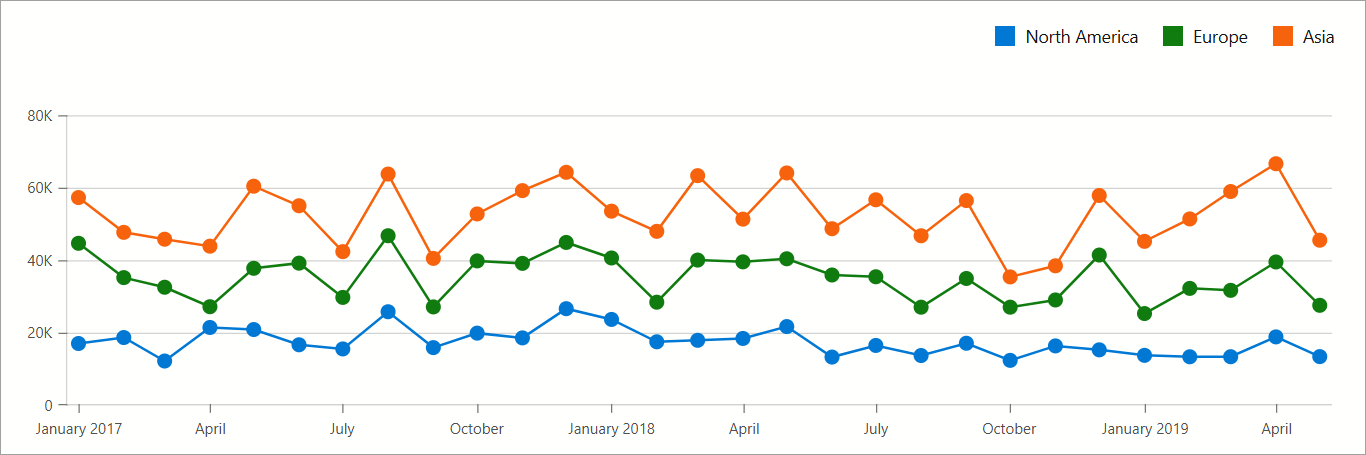

DxChart - Stacked Line Series

@inject ISalesInfoDataProvider Sales

<DxChart Data="@ChartsData"
         Width="100%"
         LabelOverlap="ChartLabelOverlap.Hide">
    <DxChartStackedLineSeries Name="North America"
                              T="SaleInfo"
                              TArgument="DateTime"
                              TValue="int"
                              ArgumentField="si => new DateTime(si.Date.Year, si.Date.Month, 1)"
                              ValueField="si => si.Amount"
                              SummaryMethod="Enumerable.Sum"
                              Filter='si => si.Region == "North America" '
                              HoverMode="ChartContinuousSeriesHoverMode.None">
        <DxChartSeriesPoint Visible=ShowSeriesPointMarkers
                            HoverMode="ChartSeriesPointHoverMode.None" />
        <DxChartSeriesLabel Visible=ShowSeriesLabels
                            ValueFormat="ChartElementFormat.Thousands(1)" />
    </DxChartStackedLineSeries>
    <DxChartStackedLineSeries Name="Europe"
                              T="SaleInfo"
                              TArgument="DateTime"
                              TValue="int"
                              ArgumentField="si => new DateTime(si.Date.Year, si.Date.Month, 1)"
                              ValueField="si => si.Amount"
                              SummaryMethod="Enumerable.Sum"
                              Filter='si => si.Region == "Europe" '
                              HoverMode="ChartContinuousSeriesHoverMode.None">
        <DxChartSeriesPoint Visible=ShowSeriesPointMarkers
                            HoverMode="ChartSeriesPointHoverMode.None" />
        <DxChartSeriesLabel Visible=ShowSeriesLabels
                            ValueFormat="ChartElementFormat.Thousands(1)" />
    </DxChartStackedLineSeries>
    <DxChartStackedLineSeries Name="Asia"
                              T="SaleInfo"
                              TArgument="DateTime"
                              TValue="int"
                              ArgumentField="si => new DateTime(si.Date.Year, si.Date.Month, 1)"
                              ValueField="si => si.Amount"
                              SummaryMethod="Enumerable.Sum"
                              Filter='si => si.Region == "Asia" '
                              HoverMode="ChartContinuousSeriesHoverMode.None">
        <DxChartSeriesPoint Visible=ShowSeriesPointMarkers
                            HoverMode="ChartSeriesPointHoverMode.None" />
        <DxChartSeriesLabel Visible=ShowSeriesLabels
                            ValueFormat="ChartElementFormat.Thousands(1)" />
    </DxChartStackedLineSeries>
    <DxChartLegend Position="RelativePosition.Outside"
                   HorizontalAlignment="HorizontalAlignment.Right" />
@* ... *@
</DxChart>
@* ... *@
@code {
    IEnumerable<SaleInfo> ChartsData;

    [Parameter] public bool ShowSeriesPointMarkers { get; set; }
    [Parameter] public bool ShowSeriesLabels { get; set; }

    protected override async Task OnInitializedAsync() {
        ChartsData = await Sales.GetSalesAsync();
    }
}

Run Demo: DxChart - Stacked Line Series
