TreeListUnboundColumnDataEventArgs Class

Contains data for the UnboundColumnData event.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.Grid.v26.1.dll

Declaration

public class TreeListUnboundColumnDataEventArgs

Remarks

Handle the UnboundColumnData event to populate unbound columns with data.

Example

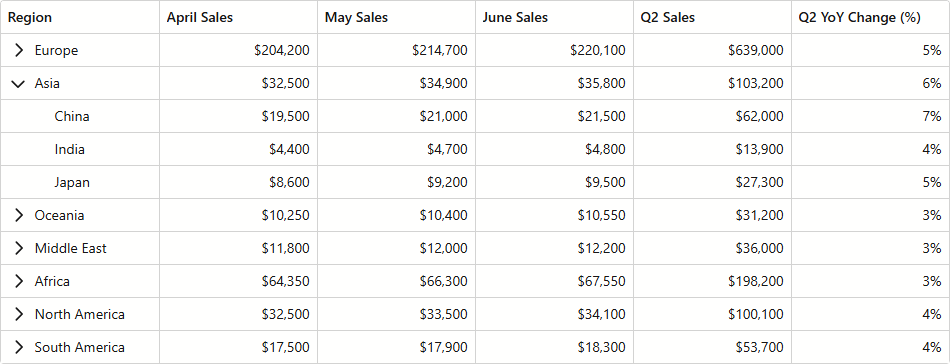

The following code snippet creates two unbound columns:

• Q2 Sales uses UnboundExpression to calculate cell values.
• Q2 YoY Change (%) uses a UnboundColumnData event handler to obtain column data.

Razor

@inject ISalesByRegionDataProvider SalesByRegionDataProvider

<DxTreeList Data="TreeListData"
            KeyFieldName="ID"
            ParentKeyFieldName="RegionID"
            ShowAllRows="true"
            ColumnResizeMode="TreeListColumnResizeMode.NextColumn"
            TextWrapEnabled="false"
            SizeMode="Params.SizeMode"
            CssClass="max-h-480"
            UnboundColumnData="TreeList_UnboundColumnData">
    <Columns>
        <DxTreeListDataColumn FieldName="Region" />
        <DxTreeListDataColumn FieldName="AprilSales" DisplayFormat="c0" />
        <DxTreeListDataColumn FieldName="MaySales" DisplayFormat="c0" />
        <DxTreeListDataColumn FieldName="JuneSales" DisplayFormat="c0" />
        <DxTreeListDataColumn FieldName="Q2Sales"
                              Caption="Q2 Sales"
                              DisplayFormat="c0"
                              UnboundType="TreeListUnboundColumnType.Decimal"
                              UnboundExpression="[AprilSales] + [MaySales] + [JuneSales]" />
        <DxTreeListDataColumn FieldName="Q2YoYChange"
                              Caption="Q2 YoY Change (%)"
                              DisplayFormat="p0"
                              UnboundType="TreeListUnboundColumnType.Decimal" />
    </Columns>
</DxTreeList>

@code {
    object TreeListData { get; set; }

    protected override void OnInitialized() {
        TreeListData = SalesByRegionDataProvider.GenerateData();
    }

    void TreeList_UnboundColumnData(TreeListUnboundColumnDataEventArgs e) {
        if(e.FieldName == "Q2YoYChange") {
            var sales = ((SalesByRegion) e.DataItem);
            var currentValue = (decimal)e.GetRowValue("Q2Sales");
            var prevValue = sales.MonthlySalesPrev[3] + sales.MonthlySalesPrev[4] + sales.MonthlySalesPrev[5];
            e.Value = (currentValue - prevValue) / currentValue;
        }
    }
}

SalesByRegion.cs

namespace BlazorDemo.Data {
    public class SalesByRegion {
        public SalesByRegion(int id, int regionId, string region, decimal[] monthlySales, decimal[] monthlySalesPrev, double marketShare) {
            ID = id;
            RegionID = regionId;
            Region = region;
            MonthlySales = monthlySales;
            MonthlySalesPrev = monthlySalesPrev;
            MarketShare = marketShare;
        }
        public int ID { get; set; }
        public int RegionID { get; set; }
        public string Region { get; set; }
        public decimal[] MonthlySales { get; set; }
        public decimal[] MonthlySalesPrev { get; set; }
        public double MarketShare { get; set; }

        decimal Calc(decimal current, decimal previous) {
            return (current - previous) / current;
        }

        public decimal JanuarySales => MonthlySales[0];
        public decimal FebruarySales => MonthlySales[1];
        public decimal MarchSales => MonthlySales[2];
        public decimal AprilSales => MonthlySales[3];
        public decimal MaySales => MonthlySales[4];
        public decimal JuneSales => MonthlySales[5];
        public decimal JulySales => MonthlySales[6];
        public decimal AugustSales => MonthlySales[7];
        public decimal SeptemberSales => MonthlySales[8];
        public decimal OctoberSales => MonthlySales[9];
        public decimal NovemberSales => MonthlySales[10];
        public decimal DecemberSales => MonthlySales[11];

        public decimal JanuaryChange => Calc(JanuarySales, MonthlySalesPrev[0]);
        public decimal FebruaryChange => Calc(FebruarySales, MonthlySalesPrev[1]);
        public decimal MarchChange => Calc(MarchSales, MonthlySalesPrev[2]);
        public decimal AprilChange => Calc(AprilSales, MonthlySalesPrev[3]);
        public decimal MayChange => Calc(MaySales, MonthlySalesPrev[4]);
        public decimal JuneChange => Calc(JuneSales, MonthlySalesPrev[5]);
        public decimal JulyChange => Calc(JulySales, MonthlySalesPrev[6]);
        public decimal AugustChange => Calc(AugustSales, MonthlySalesPrev[7]);
        public decimal SeptemberChange => Calc(SeptemberSales, MonthlySalesPrev[8]);
        public decimal OctoberChange => Calc(OctoberSales, MonthlySalesPrev[9]);
        public decimal NovemberChange => Calc(NovemberSales, MonthlySalesPrev[10]);
        public decimal DecemberChange => Calc(DecemberSales, MonthlySalesPrev[11]);
    }
}

ISalesByRegionDataProvider.cs

using System.Collections.Generic;
using BlazorDemo.Data;

namespace BlazorDemo.DataProviders {
    public interface ISalesByRegionDataProvider {
        public List<SalesByRegion> GenerateData();
    }
}

SalesByRegionDataProvider.cs

using System.Collections.Generic;
using BlazorDemo.Data;

namespace BlazorDemo.DataProviders.Implementation {
    public class SalesByRegionDataProvider : ISalesByRegionDataProvider {
        public List<SalesByRegion> GenerateData() {
            return [
                new SalesByRegion(1, 0, "Europe",
                    [187200, 194400, 206400, 204200, 214700, 220100, 226600, 231500, 234300, 237300, 241000, 244700],
                    [178400, 185600, 195600, 195400, 203900, 209200, 215700, 220600, 223500, 226600, 230300, 234000], 0.7),

                new SalesByRegion(2, 1, "Austria",
                    [19000, 20000, 22000, 21000, 24000, 25000, 27000, 28000, 29000, 30000, 31000, 32000],
                    [17000, 18000, 19000, 19500, 21000, 22000, 24000, 25000, 26000, 27000, 28000, 29000], 0.92),

                new SalesByRegion(3, 1, "Belgium",
                    [10500, 10000, 9500, 10000, 10200, 10000, 9800, 9500, 8800, 9200, 9000, 8800],
                    [11800, 11500, 11400, 11700, 11600, 11400, 11200, 11000, 11000, 10800, 10600, 10400], 0.16),

                new SalesByRegion(4, 1, "Denmark",
                    [18000, 18500, 19000, 19500, 20000, 20500, 21000, 21500, 21000, 20500, 20000, 19500],
                    [17000, 17500, 18000, 18500, 19000, 19500, 20000, 20500, 20000, 19500, 19000, 18500], 0.56),

                new SalesByRegion(5, 1, "France",
                    [20000, 21000, 18000, 22000, 24000, 25000, 26000, 27000, 23000, 28000, 28500, 29000],
                    [19000, 20000, 21000, 20500, 22000, 23000, 24000, 25000, 25500, 26000, 26500, 27000], 0.51),

                new SalesByRegion(6, 1, "Germany",
                    [28000, 29000, 31000, 30500, 32000, 33000, 34000, 35000, 35500, 36000, 37000, 38000],
                    [26000, 27000, 29000, 28500, 30000, 31000, 32000, 33000, 33500, 34000, 35000, 36000], 0.93),

                new SalesByRegion(7, 1, "Ireland",
                    [8500, 9000, 9500, 9800, 10200, 10500, 10800, 11000, 11200, 11400, 11600, 11800],
                    [8200, 8700, 9200, 9500, 9900, 10200, 10500, 10700, 10900, 11100, 11300, 11500], 0.34),

                new SalesByRegion(8, 1, "Italy",
                    [15000, 15500, 16500, 16200, 17000, 17500, 18000, 18500, 19000, 19500, 20000, 20500],
                    [14500, 15000, 16000, 15700, 16500, 17000, 17500, 18000, 18500, 19000, 19500, 20000], 0.22),

                new SalesByRegion(9, 1, "Netherlands",
                    [8000, 8300, 8800, 8600, 9000, 9200, 9400, 9500, 9600, 9700, 9800, 9900],
                    [7800, 8100, 8600, 8400, 8800, 9000, 9200, 9300, 9400, 9500, 9600, 9700], 0.85),

                new SalesByRegion(10, 1, "Poland",
                    [7500, 7800, 8500, 8200, 8800, 9000, 9300, 9500, 9700, 9800, 10000, 10200],
                    [7200, 7500, 8200, 7900, 8500, 8700, 9000, 9200, 9400, 9500, 9700, 9900], 0.52),

                new SalesByRegion(11, 1, "Romania",
                    [4200, 4400, 4600, 4700, 4900, 5000, 5100, 5200, 5300, 5400, 5500, 5600],
                    [4000, 4200, 4400, 4500, 4700, 4800, 4900, 5000, 5100, 5200, 5300, 5400], 0.3),

                new SalesByRegion(12, 1, "Spain",
                    [10500, 10800, 11000, 11200, 11000, 10800, 10500, 10200, 10000, 9800, 9600, 9400],
                    [10500, 10700, 9800, 11700, 11500, 11300, 11000, 10700, 9200, 10300, 10100, 9900], 0.82),

                new SalesByRegion(13, 1, "Switzerland",
                    [8500, 8800, 9000, 9200, 9500, 9700, 10000, 10200, 10500, 10700, 11000, 11200],
                    [8700, 9000, 8300, 9400, 9700, 9900, 10200, 10400, 9700, 10900, 11200, 11400], 0.14),

                new SalesByRegion(14, 1, "United Kingdom",
                    [13000, 13300, 14000, 13800, 14300, 14600, 15000, 15200, 15500, 15800, 16000, 16300],
                    [12500, 12800, 13500, 13300, 13800, 14100, 14500, 14700, 15000, 15300, 15500, 15800], 0.91),

                new SalesByRegion(15, 1, "Ukraine",
                    [16000, 16500, 17500, 17000, 18000, 18500, 19000, 19500, 20000, 20500, 21000, 21500],
                    [15000, 15500, 16500, 16000, 17000, 17500, 18000, 18500, 19000, 19500, 20000, 20500], 0.6),

                new SalesByRegion(16, 0, "Asia",
                    [30000, 31700, 33300, 32500, 34900, 35800, 37500, 38400, 39300, 40200, 41000, 41800],
                    [27800, 29500, 31100, 30300, 32700, 33600, 35300, 36200, 37100, 38000, 38800, 39600], 0.52),

                new SalesByRegion(17, 16, "China",
                    [18000, 19000, 20000, 19500, 21000, 21500, 22500, 23000, 23500, 24000, 24500, 25000],
                    [16500, 17500, 18500, 18000, 19500, 20000, 21000, 21500, 22000, 22500, 23000, 23500], 0.82),

                new SalesByRegion(18, 16, "India",
                    [4000, 4200, 4500, 4400, 4700, 4800, 5000, 5200, 5300, 5400, 5500, 5600],
                    [3800, 4000, 4300, 4200, 4500, 4600, 4800, 5000, 5100, 5200, 5300, 5400], 0.44),

                new SalesByRegion(19, 16, "Japan",
                    [8000, 8500, 8800, 8600, 9200, 9500, 10000, 10200, 10500, 10800, 11000, 11200],
                    [7500, 8000, 8300, 8100, 8700, 9000, 9500, 9700, 10000, 10300, 10500, 10700], 0.7),

                new SalesByRegion(20, 0, "Oceania",
                    [9500, 9750, 10000, 10250, 10400, 10550, 10700, 10850, 10900, 10950, 11000, 11050],
                    [9200, 9450, 9700, 9950, 10100, 10250, 10400, 10550, 10600, 10650, 10700, 10750], 0.8),

                new SalesByRegion(21, 20, "Australia",
                    [7600, 7800, 8000, 8200, 8400, 8600, 8800, 9000, 9100, 9200, 9300, 9400],
                    [7300, 7500, 7700, 7900, 8100, 8300, 8500, 8700, 8800, 8900, 9000, 9100], 0.75),

                new SalesByRegion(22, 20, "New Zealand",
                    [1900, 1950, 2000, 2050, 2000, 1950, 1900, 1850, 1800, 1750, 1700, 1650],
                    [1900, 1950, 2000, 2050, 2000, 1950, 1900, 1850, 1800, 1750, 1700, 1650], 0.4),

                new SalesByRegion(23, 0, "Middle East",
                    [11000, 11300, 11600, 11800, 12000, 12200, 12500, 12700, 12900, 13000, 13200, 13400],
                    [10700, 11000, 11300, 11500, 11700, 11900, 12200, 12400, 12600, 12700, 12900, 13100], 0.58),

                new SalesByRegion(24, 23, "Saudi Arabia",
                    [4500, 4600, 4800, 4900, 5000, 5100, 5200, 5300, 5400, 5500, 5600, 5700],
                    [4300, 4400, 4600, 4700, 4800, 4900, 5000, 5100, 5200, 5300, 5400, 5500], 0.65),

                new SalesByRegion(25, 23, "United Arab Emirates",
                    [6500, 6700, 6800, 6900, 7000, 7100, 7300, 7400, 7500, 7500, 7600, 7700],
                    [6400, 6600, 6700, 6800, 6900, 7000, 7200, 7300, 7400, 7400, 7500, 7600], 0.35),

                new SalesByRegion(26, 0, "Africa",
                    [60300, 62200, 63900, 64350, 66300, 67550, 69200, 70450, 71800, 72850, 73900, 74950],
                    [58450, 60350, 62050, 62500, 64450, 65700, 67350, 68600, 69950, 71000, 72050, 73100], 0.41),

                new SalesByRegion(27, 26, "Egypt",
                    [7500, 7700, 7900, 8000, 8200, 8300, 8500, 8600, 8700, 8800, 8900, 9000],
                    [7300, 7500, 7700, 7800, 8000, 8100, 8300, 8400, 8500, 8600, 8700, 8800], 0.52),

                new SalesByRegion(28, 26, "Nigeria",
                    [14500, 15000, 15500, 15200, 16000, 16500, 17000, 17500, 18000, 18300, 18500, 18800],
                    [14000, 14500, 15000, 14700, 15500, 16000, 16500, 17000, 17500, 17800, 18000, 18300], 0.3),

                new SalesByRegion(29, 26, "South Africa",
                    [16000, 16500, 17000, 17200, 17500, 17700, 18000, 18200, 18500, 18700, 19000, 19200],
                    [15500, 16000, 16500, 16700, 17000, 17200, 17500, 17700, 18000, 18200, 18500, 18700], 0.62),

                new SalesByRegion(30, 26, "Kenya",
                    [10500, 10800, 11000, 11200, 11500, 11700, 12000, 12200, 12400, 12600, 12800, 13000],
                    [10200, 10500, 10700, 10900, 11200, 11400, 11700, 11900, 12100, 12300, 12500, 12700], 0.55),

                new SalesByRegion(31, 26, "Morocco",
                    [10000, 10300, 10500, 10700, 11000, 11200, 11500, 11700, 11900, 12100, 12300, 12500],
                    [9700, 10000, 10200, 10400, 10700, 10900, 11200, 11400, 11600, 11800, 12000, 12200], 0.48),

                new SalesByRegion(32, 26, "Ghana",
                    [1800, 1900, 2000, 2050, 2100, 2150, 2200, 2250, 2300, 2350, 2400, 2450],
                    [1750, 1850, 1950, 2000, 2050, 2100, 2150, 2200, 2250, 2300, 2350, 2400], 0.38),

                new SalesByRegion(33, 0, "North America",
                    [30000, 31000, 32000, 32500, 33500, 34100, 35100, 35500, 36000, 36500, 37000, 37500],
                    [28500, 29500, 30500, 31000, 32000, 32600, 33600, 34000, 34500, 35000, 35500, 36000], 0.84),

                new SalesByRegion(34, 33, "Canada",
                    [11000, 11300, 11700, 12000, 12300, 12600, 12900, 13100, 13400, 13700, 14000, 14300],
                    [10500, 10800, 11200, 11500, 11800, 12100, 12400, 12600, 12900, 13200, 13500, 13800], 0.64),

                new SalesByRegion(35, 33, "USA",
                    [19000, 19700, 20300, 20500, 21200, 21500, 22200, 22400, 22600, 22800, 23000, 23200],
                    [18000, 18700, 19300, 19500, 20200, 20500, 21200, 21400, 21600, 21800, 22000, 22200], 0.87),

                new SalesByRegion(36, 0, "South America",
                    [16000, 16600, 17100, 17500, 17900, 18300, 18700, 19100, 19400, 19700, 20000, 20300],
                    [15200, 15800, 16300, 16700, 17100, 17500, 17900, 18300, 18600, 18900, 19200, 19500], 0.32),

                new SalesByRegion(37, 36, "Argentina",
                    [5500, 5700, 5900, 6000, 6200, 6300, 6500, 6600, 6700, 6800, 6900, 7000],
                    [5200, 5400, 5600, 5700, 5900, 6000, 6200, 6300, 6400, 6500, 6600, 6700], 0.88),

                new SalesByRegion(38, 36, "Brazil",
                    [4200, 4400, 4500, 4600, 4700, 4800, 4900, 5000, 5100, 5200, 5300, 5400],
                    [4000, 4200, 4300, 4400, 4500, 4600, 4700, 4800, 4900, 5000, 5100, 5200], 0.1),

                new SalesByRegion(39, 36, "Chile",
                    [6300, 6500, 6700, 6900, 7000, 7200, 7300, 7500, 7600, 7700, 7800, 7900],
                    [6000, 6200, 6400, 6600, 6700, 6900, 7000, 7200, 7300, 7400, 7500, 7600], 0.7)
            ];
        }
    }
}

Run Demo: Unbound Columns

Inheritance

Object

TreeListUnboundColumnDataEventArgs
