TreeListDocumentExportCustomizeColumnEventArgs Class

Contains information for the CustomizeColumn event.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.1.dll

NuGet Package: DevExpress.Blazor

Declaration

public class TreeListDocumentExportCustomizeColumnEventArgs :
    GridDocumentExportCustomizeColumnEventArgsBase

Remarks

When exporting TreeList data to PDF, handle the CustomizeColumn event to exclude certain columns from export and style data cells.

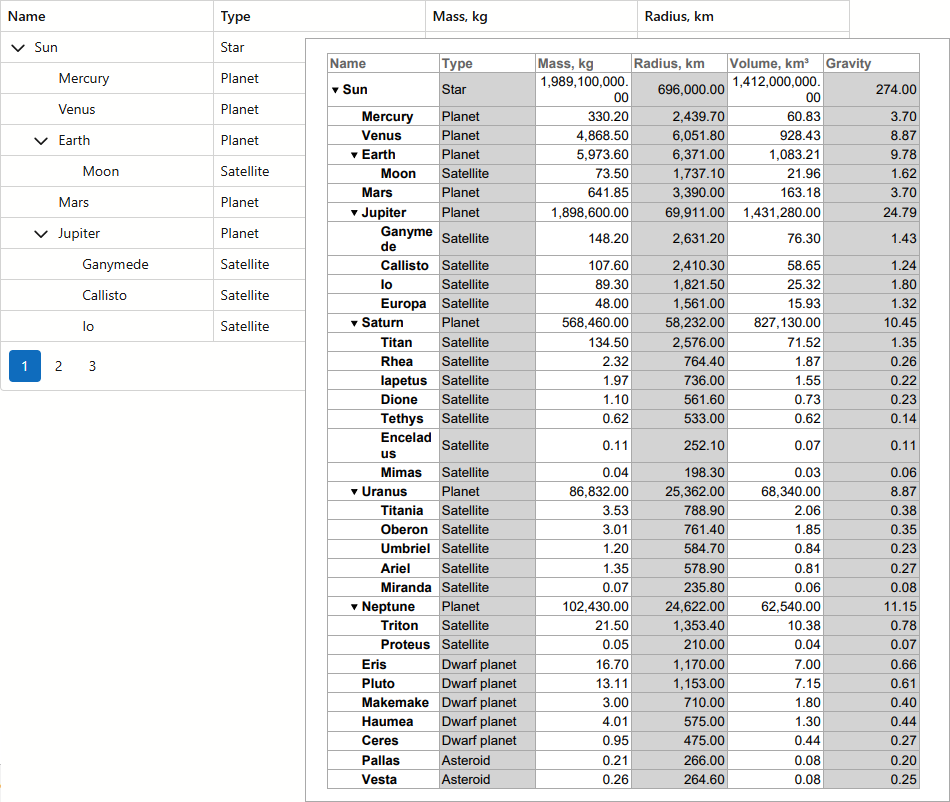

The following example exports TreeList data to PDF and customizes output table appearance:

Razor

@rendermode InteractiveServer
@using DevExpress.Drawing
@inject SpaceObjectDataProvider SpaceObjectDataProvider

<DxTreeList @ref="TreeList" Data="TreeListData" ChildrenFieldName="Satellites">
    <Columns>
        <DxTreeListDataColumn FieldName="Name" />
        <DxTreeListDataColumn FieldName="TypeOfObject" Caption="Type" />
        <DxTreeListDataColumn FieldName="Mass10pow21kg" Caption="Mass, kg" DisplayFormat="N2" />
        <DxTreeListDataColumn FieldName="MeanRadiusInKM" Caption="Radius, km" DisplayFormat="N2" />
        <DxTreeListDataColumn FieldName="Volume10pow9KM3" Caption="Volume, km³" DisplayFormat="N2" Visible="false" />
        <DxTreeListDataColumn FieldName="SurfaceGravity" Caption="Gravity" DisplayFormat="N2" Visible="false" />
    </Columns>
    <ToolbarTemplate>
        <DxToolbar>
            <DxToolbarItem Text="Export to PDF" Click="ExportPdf_Click" BeginGroup="true" />
        </DxToolbar>
    </ToolbarTemplate>
</DxTreeList>

@code {
    ITreeList TreeList { get; set; }
    object TreeListData { get; set; }
    protected override async Task OnInitializedAsync() {
        TreeListData = SpaceObjectDataProvider.GenerateData();
    }
    async Task ExportPdf_Click() {
        await TreeList.ExportToPdfAsync("ExportResult", new TreeListPdfExportOptions() {
            FitToPage = false,
            CustomizeColumn = OnCustomizeColumn,
        });
    }
    void OnCustomizeColumn (TreeListDocumentExportCustomizeColumnEventArgs args) {
        args.Width = 300;
        args.IsHidden = false;
        if (args.ColumnIndex % 2 == 1)
            args.DataCellStyle.BackColor = System.Drawing.Color.LightGray;
        if (args.FieldName == "Name") {
            args.DataCellStyle.Font = new DXFont(args.DataCellStyle.Font, DXFontStyle.Bold);
            args.Width = 400;
        }
    }
}

SpaceObject

using System.Collections.Generic;

public class SpaceObject {
    public string Name { get; set; }
    public double MeanRadiusInKM { get; set; }
    public double Volume10pow9KM3 { get; set; }
    public double Mass10pow21kg { get; set; }
    public double Density { get; set; }
    public double SurfaceGravity { get; set; }
    public string TypeOfObject { get; set; }
    public List<SpaceObject> Satellites { get; set; }
    public SpaceObject(
        string name,
        double meanRadiusInKM,
        double volume10pow9KM3,
        double mass10pow21kg,
        double density,
        double surfaceGravity,
        string typeOfObject,
        List<SpaceObject> satellites = null
    ) {
        Name = name;
        MeanRadiusInKM = meanRadiusInKM;
        Volume10pow9KM3 = volume10pow9KM3;
        Mass10pow21kg = mass10pow21kg;
        Density = density;
        SurfaceGravity = surfaceGravity;
        TypeOfObject = typeOfObject;
        Satellites = satellites ?? new List<SpaceObject>();
    }
}

SpaceObjectDataProvider

public class SpaceObjectDataProvider {
    public List<SpaceObject> GenerateData() {
        return new List<SpaceObject>() {
            new SpaceObject("Sun", 696000, 1412000000, 1989100000, 1.409, 274.0, "Star", new List<SpaceObject>() {
                new SpaceObject("Mercury", 2439.7, 60.83, 330.2, 5.43, 3.7, "Planet"),
                new SpaceObject("Venus", 6051.8, 928.43, 4868.5, 5.24, 8.872, "Planet"),
                new SpaceObject("Earth", 6371.0, 1083.21, 5973.6, 5.515, 9.78033, "Planet", new List<SpaceObject> () {
                    new SpaceObject("Moon", 1737.1, 21.958, 73.5, 3.3464, 1.625, "Satellite")
                }),
                new SpaceObject("Mars", 3390.0, 163.18, 641.85, 3.94, 3.7, "Planet"),
                new SpaceObject("Jupiter", 69911, 1431280, 1898600, 1.33, 24.79, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Ganymede", 2631.2, 76.30, 148.2, 1.936, 1.428, "Satellite"),
                    new SpaceObject("Callisto", 2410.3, 58.65, 107.6, 1.83, 1.23603, "Satellite"),
                    new SpaceObject("Io", 1821.5, 25.32, 89.3, 3.528, 1.797, "Satellite"),
                    new SpaceObject("Europa", 1561, 15.93, 48, 3.01, 1.316, "Satellite"),
                }),
                new SpaceObject("Saturn", 58232, 827130, 568460, 0.70, 10.445, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Titan", 2576, 71.52, 134.5, 1.88, 1.354, "Satellite"),
                    new SpaceObject("Rhea", 764.4, 1.87, 2.3166, 1.23, 0.26, "Satellite"),
                    new SpaceObject("Iapetus", 736, 1.55, 1.9739, 1.08, 0.223, "Satellite"),
                    new SpaceObject("Dione", 561.6, 0.73, 1.096, 1.48, 0.232, "Satellite"),
                    new SpaceObject("Tethys", 533, 0.624, 0.6173, 1.15, 0.145, "Satellite"),
                    new SpaceObject("Enceladus", 252.1, 0.067, 0.108, 1.61, 0.111, "Satellite"),
                    new SpaceObject("Mimas", 198.3, 0.033, 0.03749, 1.15, 0.06363, "Satellite")
                }),
                new SpaceObject("Uranus", 25362, 68340, 86832, 1.30, 8.87, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Titania", 788.9, 2.06, 3.526, 1.72, 0.378, "Satellite"),
                    new SpaceObject("Oberon", 761.4, 1.85, 3.014, 1.63, 0.347, "Satellite"),
                    new SpaceObject("Umbriel", 584.7, 0.84, 1.2, 1.4, 0.234, "Satellite"),
                    new SpaceObject("Ariel", 578.9, 0.81, 1.35, 1.67, 0.269, "Satellite"),
                    new SpaceObject("Miranda", 235.8, 0.055, 0.0659, 1.20, 0.07910375, "Satellite"),
                }),
                new SpaceObject("Neptune", 24622, 62540, 102430, 1.76, 11.15, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Triton", 1353.4, 10.38, 21.5, 2.061, 0.782, "Satellite"),
                    new SpaceObject("Proteus", 210, 0.038, 0.050, 1.3, 0.0666, "Satellite"),
                }),
                new SpaceObject("Eris", 1170, 7, 16.7, 2.25, 0.662, "Dwarf planet"),
                new SpaceObject("Pluto", 1153, 7.15, 13.105, 2.0, 0.61, "Dwarf planet"),
                new SpaceObject("Makemake", 710, 1.8, 3, 2.0, 0.4,  "Dwarf planet"),
                new SpaceObject("Haumea", 575, 1.3, 4.006, 3, 0.44, "Dwarf planet"),
                new SpaceObject("Ceres", 475, 0.437, 0.95, 2.08, 0.27, "Dwarf planet"),
                new SpaceObject("Pallas", 266, 0.078, 0.211, 2.8, 0.2, "Asteroid"),
                new SpaceObject("Vesta", 264.6, 0.078, 0.262, 3.42, 0.251, "Asteroid")
            })
        };
    }
}

Program.cs

// ...
builder.Services.AddSingleton<SpaceObjectDataProvider>();

Inheritance

Object

GridDocumentExportCustomizeColumnEventArgsBase

TreeListDocumentExportCustomizeColumnEventArgs
