Gridlines Enum

Lists gridline visibility options in the DxGrid component.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.Grid.v26.1.dll

Declaration

[Flags]
public enum Gridlines

Members

Name	Description
None	All gridlines are invisible.
Horizontal	Horizontal gridlines are visible.
Vertical	Vertical gridlines are visible.
Outside	Component borders are visible.
All	All gridlines are visible.

Related API Members

The following properties accept/return Gridlines values:

Library	Related API Members
Blazor	DxGrid.GridlinesVisible
	IGrid.GridlinesVisible
XAF: Cross-Platform .NET App UI & Web API	DxGridModel.GridlinesVisible

Remarks

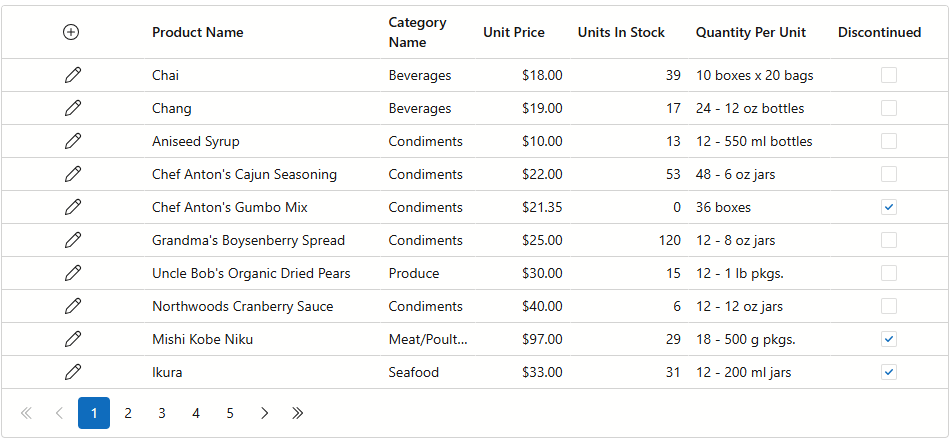

The following example hides vertical lines:

<DxGrid Data="Products"
        GridlinesVisible="Gridlines.Horizontal | Gridlines.Outside">
    <Columns>
        <DxGridCommandColumn DeleteButtonVisible="false" Width="15%" />
        <DxGridDataColumn FieldName="ProductName" Width="25%" />
        <DxGridDataColumn FieldName="CategoryId" Caption="Category Name" Width="10%" />
        <DxGridDataColumn FieldName="UnitPrice" DisplayFormat="c" Width="10%" />
        <DxGridDataColumn FieldName="UnitsInStock" />
        <DxGridDataColumn FieldName="QuantityPerUnit" Width="15%" />
        <DxGridDataColumn FieldName="Discontinued" />
    </Columns>
</DxGrid>
