GridCommandColumnDisplayMode Enum

Lists command column display modes.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.2.dll

Declaration

public enum GridCommandColumnDisplayMode

Members

Name	Description	Image
Icon	Command buttons display icons.

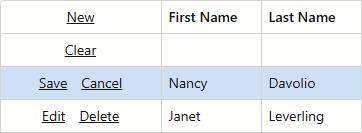

Text	Command buttons display captions.

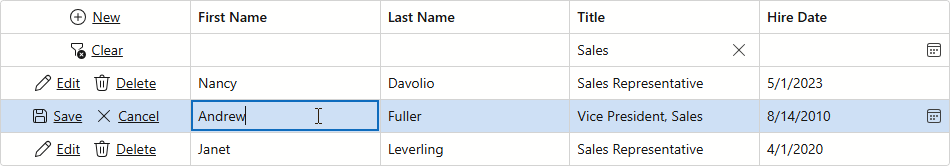

IconAndText	Command buttons display captions and icons.

Related API Members

The following properties accept/return GridCommandColumnDisplayMode values:

• DxGridCommandColumn.DisplayMode
• IGridCommandColumn.DisplayMode

Remarks

The Grid component displays command column actions as icons. Specify DisplayMode to replace icons with captions or display both:

Razor

@using Microsoft.EntityFrameworkCore
@inject NwindDataService NwindDataService
@inject IDbContextFactory<NorthwindContext> NorthwindContextFactory
@implements IDisposable

<DxGrid Data="Data"
        KeyFieldName="EmployeeId"
        ShowFilterRow="true"
        EditModelSaving="OnEditModelSaving"
        DataItemDeleting="OnDataItemDeleting"
        CustomizeEditModel="OnCustomizeEditModel"
        EditMode="GridEditMode.EditRow">
    <Columns>
        <DxGridCommandColumn DisplayMode="GridCommandColumnDisplayMode.IconAndText" />
        <DxGridDataColumn FieldName="FirstName" />
        <DxGridDataColumn FieldName="LastName" />
        <DxGridDataColumn FieldName="Title" />
        <DxGridDataColumn FieldName="HireDate" />
    </Columns>
</DxGrid>

@code {
    IEnumerable<Employee> Data { get; set; }
    NorthwindContext Northwind { get; set; }

    protected override async Task OnInitializedAsync() {
        Northwind = NorthwindContextFactory.CreateDbContext();
        Data = await Northwind.Employees.ToListAsync();
    }

    void OnCustomizeEditModel(GridCustomizeEditModelEventArgs e) {
        if(e.IsNew) {
            var editModel = (Employee)e.EditModel;
            editModel.EmployeeId = Data.Max(x => x.EmployeeId) + 1;
        }
    }

    async Task OnEditModelSaving(GridEditModelSavingEventArgs e) {
        var editModel = (Employee)e.EditModel;
        if (e.IsNew)
            await Northwind.AddAsync(editModel);
        else
            e.CopyChangesToDataItem();
        // Post changes to the database.
        await Northwind.SaveChangesAsync();
        // Reload the entire Grid.
        Data = await Northwind.Employees.ToListAsync();
    }

    async Task OnDataItemDeleting(GridDataItemDeletingEventArgs e) {
        // Remove the data item from the database.
        Northwind.Remove(e.DataItem);
        await Northwind.SaveChangesAsync();
        // Reload the entire Grid.
        Data = await Northwind.Employees.ToListAsync();
    }

    public void Dispose() {
        Northwind?.Dispose();
    }
}

Employee

using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;

namespace Grid.Northwind {
    public partial class Employee {
        public int EmployeeId { get; set; }
        [Required]
        public string LastName { get; set; }
        [Required]
        public string FirstName { get; set; }
        [Required]
        public string Title { get; set; }
        public string TitleOfCourtesy { get; set; }
        public Nullable<System.DateTime> BirthDate { get; set; }
        [Required]
        [Range(typeof(DateTime), "1/1/2000", "1/1/2020",
        ErrorMessage = "HireDate must be between {1:d} and {2:d}")]
        public Nullable<System.DateTime> HireDate { get; set; }
        public string Address { get; set; }
        public string City { get; set; }
        public string Region { get; set; }
        public string PostalCode { get; set; }
        public string Country { get; set; }
        public string HomePhone { get; set; }
        public string Extension { get; set; }
        public byte[] Photo { get; set; }
        public string Notes { get; set; }
        public Nullable<int> ReportsTo { get; set; }
        public string PhotoPath { get; set; }
        public virtual ICollection<Order> Orders { get; set; }
        public string Text => $"{FirstName} {LastName} ({Title})";
        public string ImageFileName => $"Employees/{EmployeeId}.jpg";
    }
}

NorthwindContext

using Microsoft.EntityFrameworkCore;
#nullable disable

namespace Grid.Northwind {
    public partial class NorthwindContext : DbContext {

        public NorthwindContext(DbContextOptions<NorthwindContext> options)
            : base(options) {
        }
        // ...
        public virtual DbSet<Employee> Employees { get; set; }

        protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder) {
            if(!optionsBuilder.IsConfigured) {
                optionsBuilder.UseSqlServer("Server=.\\sqlexpress;Database=Northwind;Integrated Security=true");
            }
        }

        protected override void OnModelCreating(ModelBuilder modelBuilder) {
            modelBuilder.HasAnnotation("Relational:Collation", "SQL_Latin1_General_CP1_CI_AS");
            // ...
            modelBuilder.Entity<Employee>(entity => {
                entity.HasIndex(e => e.EmployeeId, "EmployeeId");
                entity.HasIndex(e => e.LastName, "LastName");
                entity.HasIndex(e => e.FirstName, "FirstName");
                entity.HasIndex(e => e.Title, "Title");
                entity.HasIndex(e => e.BirthDate, "BirthDate");
                entity.HasIndex(e => e.HireDate, "HireDate");
                entity.HasIndex(e => e.Notes, "Notes");
            });
            OnModelCreatingPartial(modelBuilder);
        }

        partial void OnModelCreatingPartial(ModelBuilder modelBuilder);
    }
}

Program.cs

using Microsoft.EntityFrameworkCore;
// ...
builder.Services.AddDbContextFactory<NorthwindContext>((sp, options) ={
    var env = sp.GetRequiredService<IWebHostEnvironment>();
    var dbPath = Path.Combine(env.ContentRootPath, "Northwind-5e44b51f.mdf");
    options.UseSqlServer("Server=(localdb)\\MSSQLLocalDB;Integrated Security=true;AttachDbFileName=" + dbPath);
});
