GridColumnFilterBuilderFieldDisplayMode Enum

Lists visibility modes for autogenerated filter fields.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.2.dll

Declaration

public enum GridColumnFilterBuilderFieldDisplayMode

Members

Name	Description
Never	The filter field is always hidden.
Always	The filter field is always visible.
Auto	The filter field’s visibility depends on the corresponding column’s visibility.

Related API Members

The following properties accept/return GridColumnFilterBuilderFieldDisplayMode values:

• DxGridDataColumn.FilterBuilderFieldDisplayMode
• IGridDataColumn.FilterBuilderFieldDisplayMode

Remarks

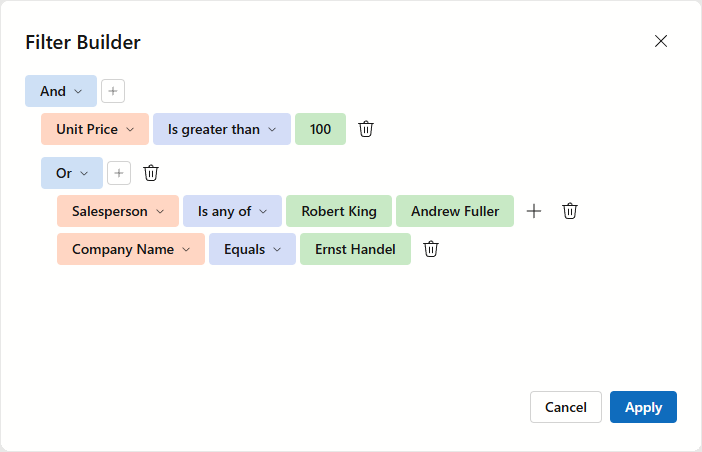

The built-in filter builder dialog generates and configures filter fields based on Grid columns.

Read Tutorial: Filter Panel and Filter Builder Run Demo: Filter Builder Customization

The Grid sets initial field visibility based on the corresponding column’s visibility. The filter builder dialog automatically updates field visibility once a user displays or hides a column. To display or hide a field permanently, set FilterBuilderFieldDisplayMode to Never/Always.

The following code snippet hides the Order Date filter field:

Razor

@inject NwindDataService NwindDataService

<DxGrid @ref="Grid"
        Data="Data"
        FilterMenuButtonDisplayMode="GridFilterMenuButtonDisplayMode.Always"
        FilterPanelDisplayMode="GridFilterPanelDisplayMode.Always">
    <Columns>
        <DxGridDataColumn FieldName="SalesPerson" Caption="Salesperson" />
        <DxGridBandColumn Caption="Order">
            <Columns>
                <DxGridDataColumn FieldName="CompanyName" />
                <DxGridDataColumn FieldName="OrderDate"
                    FilterBuilderFieldDisplayMode="GridColumnFilterBuilderFieldDisplayMode.Never" />
                <DxGridBandColumn Caption="Product">
                    <Columns>
                        <DxGridDataColumn FieldName="ProductName" Caption="Name" />
                        <DxGridDataColumn FieldName="UnitPrice" DisplayFormat="c"
                                          CaptionAlignment="GridTextAlignment.Right" />
                    </Columns>
                </DxGridBandColumn>
                <DxGridDataColumn FieldName="Quantity" />
            </Columns>
        </DxGridBandColumn>
    </Columns>
</DxGrid>

@code {
    object Data { get; set; }
    IGrid Grid { get; set; }

    protected override async Task OnInitializedAsync() {
        var invoices = await NwindDataService.GetInvoicesAsync();
        var customers = await NwindDataService.GetCustomersAsync();
        Data = invoices.OrderBy(i => i.OrderDate).Join(customers, i => i.CustomerId, c => c.CustomerId,
            (i, c) => { return new {
                CompanyName = c.CompanyName,
                SalesPerson = i.Salesperson,
                UnitPrice = i.UnitPrice,
                OrderDate = i.OrderDate,
                ProductName = i.ProductName,
                Quantity = i.Quantity
            };
        });
    }
    protected override Task OnAfterRenderAsync(bool firstRender) {
        if (firstRender)
            Grid.SetFilterCriteria(CriteriaOperator.Parse("[UnitPrice] > 100M" +
                                                  "And ([SalesPerson] In ('Robert King', 'Andrew Fuller')" +
                                                  "Or [CompanyName] == 'Ernst Handel')"));
        return base.OnAfterRenderAsync(firstRender);
    }
}

Invoice

using System;
using System.Collections.Generic;
using System.Runtime.InteropServices;

namespace BlazorDemo.Data.Northwind {
    public class Invoice {
        public string ShipName { get; set; }
        public string ShipAddress { get; set; }
        public string ShipCity { get; set; }
        public string ShipRegion { get; set; }
        public string ShipPostalCode { get; set; }
        public string ShipCountry { get; set; }
        public string CustomerId { get; set; }
        public string CustomerName { get; set; }
        public string Address { get; set; }
        public string City { get; set; }
        public string Region { get; set; }
        public string PostalCode { get; set; }
        public string Country { get; set; }
        public string Salesperson { get; set; }
        public int OrderId { get; set; }
        public DateTime? OrderDate { get; set; }
        public DateTime? RequiredDate { get; set; }
        public DateTime? ShippedDate { get; set; }
        public string ShipperName { get; set; }
        public int ProductId { get; set; }
        public string ProductName { get; set; }
        public decimal UnitPrice { get; set; }
        public short Quantity { get; set; }
        public float Discount { get; set; }
        public decimal? ExtendedPrice { get; set; }
        public decimal? Freight { get; set; }
    }
}

Customer

using System;
using System.Collections.Generic;
using System.Runtime.InteropServices;

namespace BlazorDemo.Data.Northwind {
    public partial class Customer {
        public Customer() {
            Orders = new HashSet<Order>();
        }

        public string CustomerId { get; set; }
        public string CompanyName { get; set; }
        public string ContactName { get; set; }
        public string ContactTitle { get; set; }
        public string Address { get; set; }
        public string City { get; set; }
        public string Region { get; set; }
        public string PostalCode { get; set; }
        public string Country { get; set; }
        public string Phone { get; set; }
        public string Fax { get; set; }

        public virtual ICollection<Order> Orders { get; set; }
    }
}

NwindDataService.Invoices

using System.Collections.Generic;
using System.Linq;
using System.Threading;
using System.Threading.Tasks;
using BlazorDemo.Data.Northwind;
using BlazorDemo.DataProviders;

namespace BlazorDemo.Services {
    public partial class NwindDataService {
        public Task<IEnumerable<Invoice>> GetInvoicesAsync(CancellationToken ct = default) {
            // Return your data here
        }
        public Task<IEnumerable<Customer>> GetCustomersAsync(CancellationToken ct = default) {
            // Return your data here
        }
    }
}

Program.cs

// ...
builder.Services.AddScoped<NwindDataService>();
