DxChartStepAreaSeries<T, TArgument, TValue> Class

Defines a step area series.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v20.2.dll

Declaration

public class DxChartStepAreaSeries<T, TArgument, TValue> :
    DxChartSeries<T, TArgument, TValue, ChartStepAreaSeriesModel<T, TArgument, TValue>>

Type Parameters

Name Description
T

The type of data.

TArgument

The type of series arguments.

TValue

The type of series values.

Remarks

The step area series displays data as a polyline that connects the series values by horizontal and vertical line segments. The area between the polyline and the argument axis is shaded with a color.

Use the chart's Data property to specify an IEnumerable<T> data source, and the ArgumentField and ValueField properties to specify data source fields that contain arguments and values for chart points. For a sample data source, refer to our GitHub repository.

<DxChart Data="@SalesData">
    <DxChartStepAreaSeries Name="2017" Filter="@((SaleInfo s) => s.Date.Year == 2017)"
                           ArgumentField="@(s => s.City)" ValueField="@(s => s.Amount)"
                           AggregationMethod="Enumerable.Sum" />
    <DxChartStepAreaSeries Name="2018" Filter="@((SaleInfo s) => s.Date.Year == 2018)"
                           ArgumentField="@(s => s.City)" ValueField="@(s => s.Amount)"
                           AggregationMethod="Enumerable.Sum" />
    <DxChartStepAreaSeries Name="2019" Filter="@((SaleInfo s) => s.Date.Year == 2019)"
                           ArgumentField="@(s => s.City)" ValueField="@(s => s.Amount)"
                           AggregationMethod="Enumerable.Sum" />
    <DxChartLegend Position="RelativePosition.Outside" HorizontalAlignment="HorizontalAlignment.Right" />
</DxChart>

@code {
    IEnumerable<SaleInfo> SalesData;

    protected override async Task OnInitializedAsync() {
        SalesData = await Sales.GetSalesAsync();
    }
}

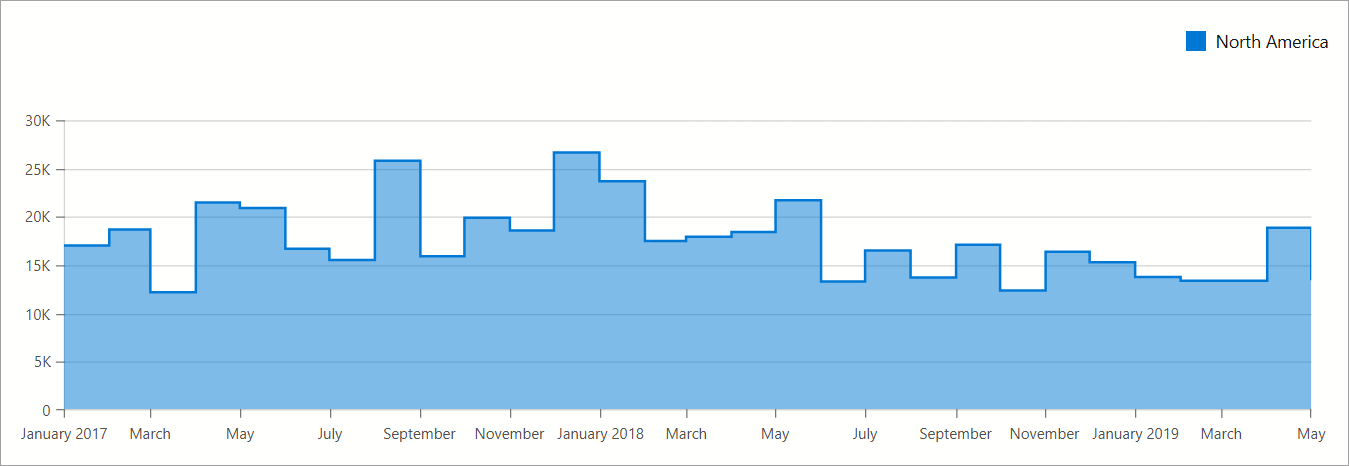

Chart Step Area Series

Run Demo: Charts - Series Types

Inheritance

Object
ComponentBase
DxSettingsComponent<DevExpress.Blazor.Internal.ChartSeriesModel>
DxComplexSettingsComponent<DxChartSeries, DevExpress.Blazor.Internal.ChartSeriesModel>
DxChartSeries
DxChartSeries<T, TArgument, TValue, TValue, DevExpress.Blazor.Internal.ChartStepAreaSeriesModel<T, TArgument, TValue>>
DxChartSeries<T, TArgument, TValue, DevExpress.Blazor.Internal.ChartStepAreaSeriesModel<T, TArgument, TValue>>
DxChartStepAreaSeries<T, TArgument, TValue>
