GridSelectedRowsExportMode Enum

Lists values that specify whether the Grid preserves group settings in ExportSelectedRowsOnly mode.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.2.dll

Declaration

public enum GridSelectedRowsExportMode

Members

Name	Description
Flat	The Grid exports selected rows as a flat list.
KeepGrouping	The Grid exports selected records and corresponding group rows.

Related API Members

The following properties accept/return GridSelectedRowsExportMode values:

• GridDocumentExportOptions.SelectedRowsExportMode
• GridXlExportOptions.SelectedRowsExportMode

Remarks

When exporting Grid data to PDF/XLS/XLSX, enable the ExportSelectedRowsOnly property to export selected rows only. Once enabled, the Grid component ignores group settings and exports records as flat data. Set SelectedRowsExportMode to KeepGrouping to export selected records and their parent group rows.

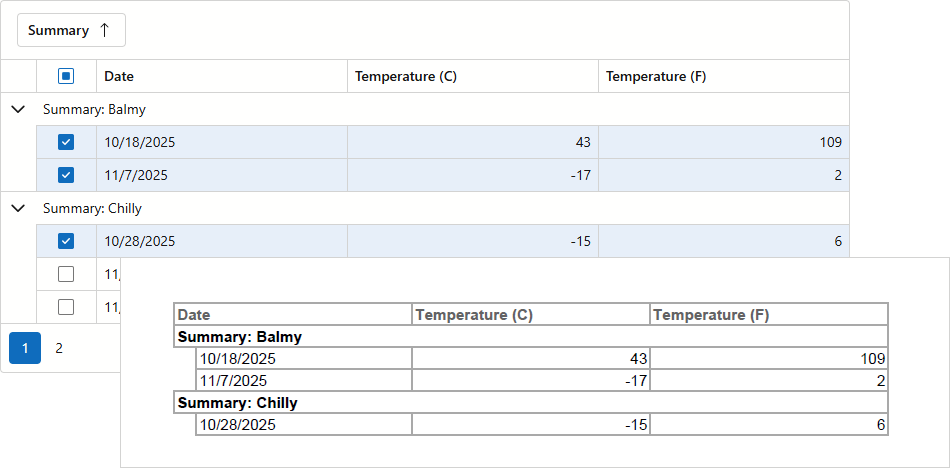

The following example exports selected records and corresponding group rows to PDF:

Razor

@rendermode InteractiveServer
@using DevExpress.Drawing;
@inject WeatherForecastService ForecastService

<DxGrid @ref="Grid" Data="@forecasts" ShowGroupPanel="true">
    <Columns>
        <DxGridSelectionColumn Width="60px" AllowSelectAll="true" />
        <DxGridDataColumn Caption="Date" FieldName="Date" />
        <DxGridDataColumn Caption="Temperature (C)" FieldName="TemperatureC" />
        <DxGridDataColumn Caption="Temperature (F)" FieldName="TemperatureF" />
        <DxGridDataColumn Caption="Summary" FieldName="Summary" GroupIndex="0" />
    </Columns>
    <ToolbarTemplate>
        <DxToolbar>
            <DxToolbarItem Text="Export to PDF" Click="ExportPdf_Click" BeginGroup="true" />
        </DxToolbar>
    </ToolbarTemplate>
</DxGrid>

@code {
    IGrid Grid;
    object forecasts;

    protected override async Task OnInitializedAsync() {
        forecasts = await ForecastService.GetForecastAsync();
    }
    async Task ExportPdf_Click() {
        await Grid.ExportToPdfAsync("ExportResult", new GridPdfExportOptions() {
            ExportSelectedRowsOnly = true,
            SelectedRowsExportMode = GridSelectedRowsExportMode.KeepGrouping
        });
    }
}

WeatherForecast.cs

using System;

public class WeatherForecast {
    public int ID { get; set; }
    public DateTime Date { get; set; }
    public int TemperatureC { get; set; }
    public int TemperatureF => 32 + (int)(TemperatureC / 0.5556);
    public string? Summary { get; set; }
}

WeatherForecastService.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading;
using System.Threading.Tasks;

public class WeatherForecastService {
    public readonly string[] Summaries = new[] {
        "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
    };
    private List<WeatherForecast>? Forecasts;
    public Task<List<WeatherForecast>> GetForecastAsync() {
        if (Forecasts == null) {
            var rnd = new Random();
            Forecasts = Enumerable.Range(1, 25).Select(index => new WeatherForecast {
                ID = index,
                Date = DateTime.Today.AddDays(index),
                TemperatureC = rnd.Next(-20, 55),
                Summary = Summaries[rnd.Next(Summaries.Length)]
            }).ToList();
        }
        return Task.FromResult(Forecasts);
    }
    public Task<List<WeatherForecast>> ChangeForecastAsync(WeatherForecast changed) {
        var originalForecast = Forecasts.FirstOrDefault(i => i.ID == changed.ID);
        if (originalForecast != null) {
            originalForecast.TemperatureC = changed.TemperatureC;
            originalForecast.Summary = changed.Summary;
            originalForecast.Date = changed.Date;
        }
        else {
            Forecasts.Add(changed);
        }
        return Task.FromResult(Forecasts);
    }
    public Task<List<WeatherForecast>> Remove(WeatherForecast forecast) {
        Forecasts.Remove(forecast);
        return Task.FromResult(Forecasts);
    }
}

Program.cs

// ...
builder.Services.AddSingleton<WeatherForecastService>();
