  • DxExportSettings Class

    Contains the target component’s export and print settings.

    Namespace: DevExpress.Blazor

    Assembly: DevExpress.Blazor.v25.1.dll

    NuGet Package: DevExpress.Blazor

    Declaration

    public class DxExportSettings :
        DxSettingsComponent<ExportSettingsModel>

    Remarks

    Use DxExportSettings object to configure export and print settings of the following components:

    DxBarGauge
    A component that visualizes data as circular bars where each bar indicates a single value.
    DxSankey
    A component that depicts value flow between two entity sets.

    Add a DxExportSettings object to target component markup and set the DxExportSettings.Enabled property to true to enable client-side export and printing functionality – the component displays the Export hamburger menu with export and print commands.

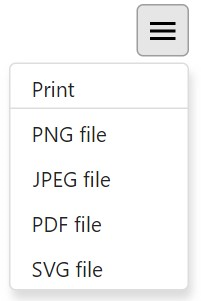

    Export Hamburger Menu

    You can use the following properties of the DxExportSettings component to define the list of commands in the Export hamburger menu:

    PrintingEnabled
    Set this property to true to display the Print command.
    Formats
    Assign DataExportFormat values to this property to display corresponding commands.

    You can also configure the following settings of the exported file:

    FileName
    Specifies the file name.
    BackgroundColor | Margin
    Specifies file appearance and layout.

    Example

    The following code snippet customizes the Export hamburger menu in the DxBarGauge component and specifies the name of the exported file:

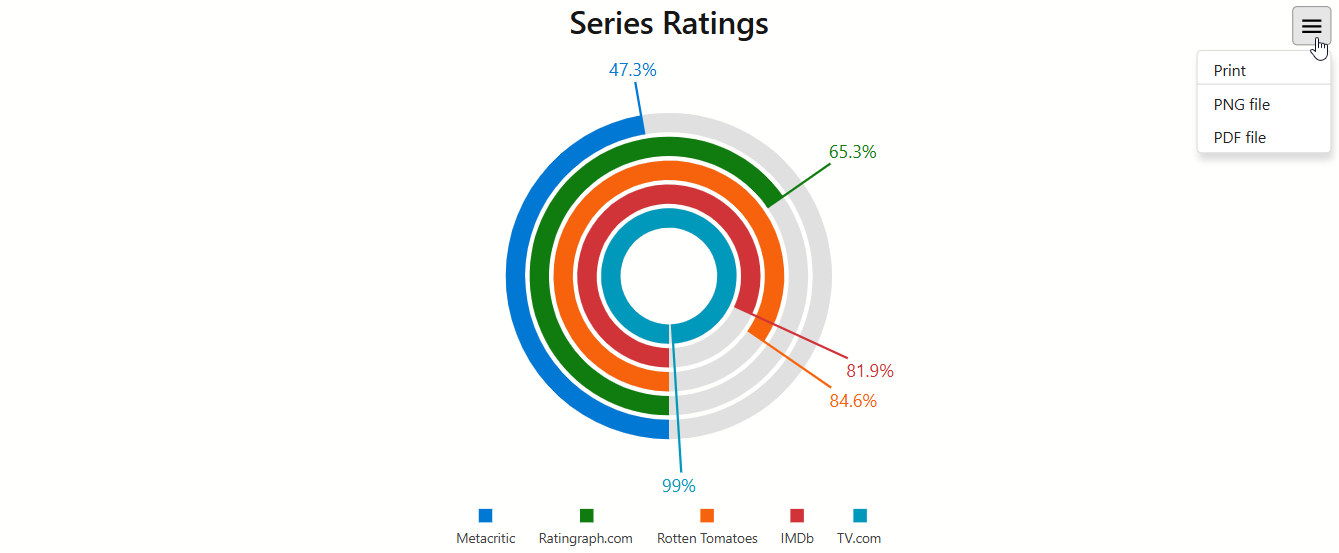

    Bar Gauge - Export Settings

    <DxBarGauge Width="100%"
                Height="500px"
                StartValue="-5"
                EndValue="5"
                BaseValue="0"
                Values="@Values">
        <DxExportSettings Enabled="true" FileName="My file" Formats="@exportFormats"/>
        @* ... *@
    </DxBarGauge>

    @code {
        DataExportFormat[] exportFormats = new DataExportFormat[] {
            DataExportFormat.Png,
            DataExportFormat.Pdf};

        double[] Values = new double[] { -2.13, 1.48, -3.09, 4.52, 4.9, 3.9 };
        // ...
    }


    Inheritance

    Object
    ComponentBase
    DxSettingsComponent<DevExpress.Blazor.ClientComponents.Internal.ExportSettingsModel>
    DxExportSettings
