ChartAggregatedPointPosition Enum

Lists values that specify where to display aggregated series points relative to axis tick marks.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
public enum ChartAggregatedPointPosition

#Members

Name Description
BetweenTicks

Displays aggregated points between major tick marks.

CrossTicks

Displays aggregated points aligned with major tick marks.

#Related API Members

The following properties accept/return ChartAggregatedPointPosition values:

#Remarks

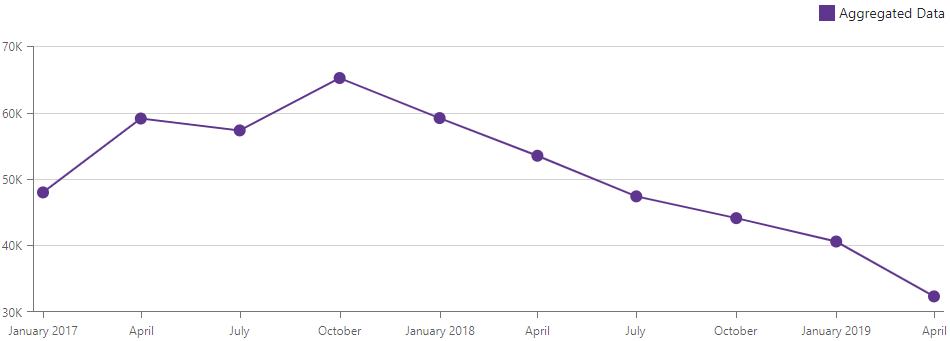

The following example aligns aggregated points to major tick marks:

Cross Ticks Positioning

Razor
<DxChart Data="@ChartsData">
    <DxChartLineSeries Name="Aggregated Data"
                       T="SaleInfo"
                       TArgument="DateTime"
                       TValue="int"
                       ArgumentField="si => new DateTime(si.Date.Year, si.Date.Month, 1)"
                       ValueField="si => si.Amount"
                       Filter='si => si.Region == "North America"'>
        <DxChartAggregationSettings Enabled="true" Method="ChartAggregationMethod.Sum" />
    </DxChartLineSeries>
    <DxChartArgumentAxis AggregationInterval="ChartAxisInterval.Quarter"
                         AggregatedPointPosition="ChartAggregatedPointPosition.CrossTicks"/>
    <DxChartLegend Position="RelativePosition.Outside"
                   HorizontalAlignment="HorizontalAlignment.Right" />
</DxChart>
See Also
