    IChartFont Interface

    Contains the element’s font settings.

    Namespace: DevExpress.Blazor

    Assembly: DevExpress.Blazor.v25.1.dll

    NuGet Package: DevExpress.Blazor

    #Declaration

    C#
    public interface IChartFont

    The following members return IChartFont objects:

    #Remarks

    Use the Font property in a CustomizeSeriesPoint event handler to access and modify the following font settings:

    Color | Opacity
    Specify the text color and its opacity.
    Family | Weight
    Specify font style settings.
    Size
    Specifies font size.

    #Example

    The following code snippet configures font settings of visible point labels:

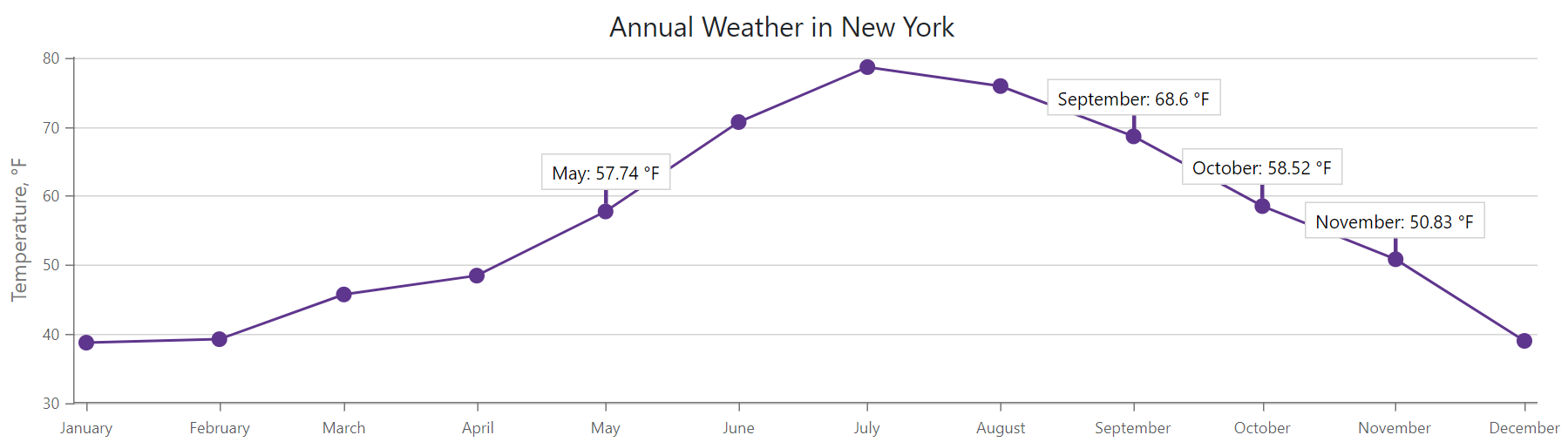

    Chart - Label Font Customization

    Razor
    <DxChart Data="@WeatherForecasts"
             CustomizeSeriesPoint="@PreparePointLabel"
             Width="100%">
        <DxChartTitle Text="Annual Weather in New York" />
        <DxChartLineSeries SummaryMethod="@(i => i.Average())"
                           ValueField="@((DetailedWeatherSummary i) => i.AverageTemperatureF)"
                           ArgumentField="@(i => new DateTime(2000, i.Date.Month, 1))"
                           Name="Temperature, F"
                           Filter="@((DetailedWeatherSummary  i) => i.City == "NEW YORK")">
            <DxChartSeriesLabel Position="RelativePosition.Outside"
                                FormatPattern="{argument:MMMM}: {value:#.##} °F">
                <DxChartSeriesLabelConnector Visible="true"
                                             Width="3" />
                <DxChartFont Size="14" Weight="600"/>
            </DxChartSeriesLabel>
        </DxChartLineSeries>
        @* ... *@
    </DxChart>

    @code {
        WeatherForecast[] WeatherForecasts;
        // ...

        protected void PreparePointLabel(ChartSeriesPointCustomizationSettings pointSettings) {
            double value = (double)pointSettings.Point.Value;
            if (value > 50 && value < 70)
                pointSettings.PointLabel.Visible = true;
                // ...
                pointSettings.PointLabel.Font.Color = "black";
                pointSettings.PointLabel.Font.Weight = 400;
        }
    }

    See Also
