TreeListSelectedRowsExportMode Enum

Lists values that specify whether the TreeList preserves row hierarchy in ExportSelectedRowsOnly mode.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.2.dll

Declaration

public enum TreeListSelectedRowsExportMode

Members

Name	Description
Flat	The TreeList exports selected rows as a flat list.
KeepHierarchy	The TreeList exports selected rows and parents (even if parent rows are unselected).

Related API Members

The following properties accept/return TreeListSelectedRowsExportMode values:

• TreeListDocumentExportOptions.SelectedRowsExportMode
• TreeListXlExportOptions.SelectedRowsExportMode

Remarks

When exporting TreeList data to PDF/XLS/XLSX, enable the ExportSelectedRowsOnly property to export selected rows only. Once enabled, the TreeList component ignores hierarchy and exports selected records as flat data. Set SelectedRowsExportMode to KeepHierarchy to export selected rows and their parents.

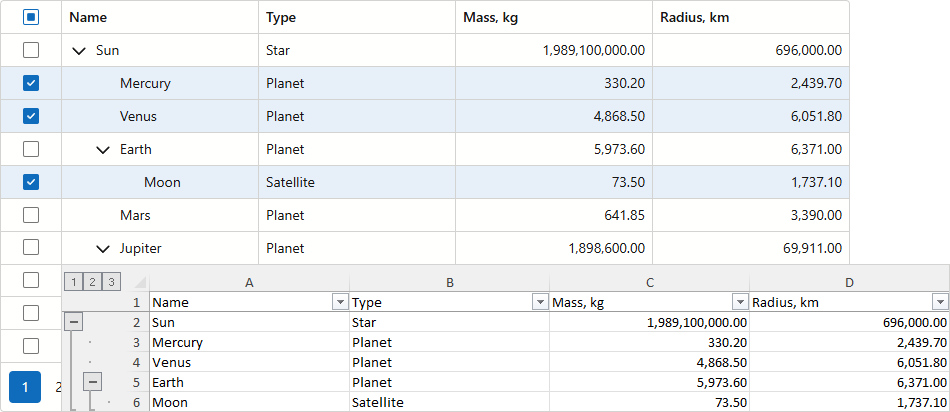

The following example exports selected rows and their parents to XLSX:

Razor

@rendermode InteractiveServer
@inject SpaceObjectDataProvider SpaceObjectDataProvider

<DxTreeList @ref="TreeList" Data="TreeListData" ChildrenFieldName="Satellites">
    <Columns>
        <DxTreeListSelectionColumn Width="60px" AllowSelectAll="true" />
        <DxTreeListDataColumn FieldName="Name" />
        <DxTreeListDataColumn FieldName="TypeOfObject" Caption="Type" />
        <DxTreeListDataColumn FieldName="Mass10pow21kg" Caption="Mass, kg" DisplayFormat="N2" />
        <DxTreeListDataColumn FieldName="MeanRadiusInKM" Caption="Radius, km" DisplayFormat="N2"/>
    </Columns>
    <ToolbarTemplate>
        <DxToolbar>
            <DxToolbarItem Text="Export to XLSX" Click="ExportXlsx_Click" BeginGroup="true" />
        </DxToolbar>
    </ToolbarTemplate>
</DxTreeList>

@code {
    ITreeList TreeList { get; set; }
    object TreeListData { get; set; }

    protected override async Task OnInitializedAsync() {
        TreeListData = SpaceObjectDataProvider.GenerateData();
    }
    async Task ExportXlsx_Click() {
        await TreeList.ExportToXlsxAsync("ExportResult", new TreeListXlExportOptions() {
            ExportSelectedRowsOnly = true,
            SelectedRowsExportMode = TreeListSelectedRowsExportMode.KeepHierarchy
        });
    }
}

SpaceObject

using System.Collections.Generic;

public class SpaceObject {
    public string Name { get; set; }
    public double MeanRadiusInKM { get; set; }
    public double Volume10pow9KM3 { get; set; }
    public double Mass10pow21kg { get; set; }
    public double Density { get; set; }
    public double SurfaceGravity { get; set; }
    public string TypeOfObject { get; set; }
    public List<SpaceObject> Satellites { get; set; }
    public SpaceObject(
        string name,
        double meanRadiusInKM,
        double volume10pow9KM3,
        double mass10pow21kg,
        double density,
        double surfaceGravity,
        string typeOfObject,
        List<SpaceObject> satellites = null
    ) {
        Name = name;
        MeanRadiusInKM = meanRadiusInKM;
        Volume10pow9KM3 = volume10pow9KM3;
        Mass10pow21kg = mass10pow21kg;
        Density = density;
        SurfaceGravity = surfaceGravity;
        TypeOfObject = typeOfObject;
        Satellites = satellites ?? new List<SpaceObject>();
    }
}

SpaceObjectDataProvider

public class SpaceObjectDataProvider {
    public List<SpaceObject> GenerateData() {
        return new List<SpaceObject>() {
            new SpaceObject("Sun", 696000, 1412000000, 1989100000, 1.409, 274.0, "Star", new List<SpaceObject>() {
                new SpaceObject("Mercury", 2439.7, 60.83, 330.2, 5.43, 3.7, "Planet"),
                new SpaceObject("Venus", 6051.8, 928.43, 4868.5, 5.24, 8.872, "Planet"),
                new SpaceObject("Earth", 6371.0, 1083.21, 5973.6, 5.515, 9.78033, "Planet", new List<SpaceObject> () {
                    new SpaceObject("Moon", 1737.1, 21.958, 73.5, 3.3464, 1.625, "Satellite")
                }),
                new SpaceObject("Mars", 3390.0, 163.18, 641.85, 3.94, 3.7, "Planet"),
                new SpaceObject("Jupiter", 69911, 1431280, 1898600, 1.33, 24.79, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Ganymede", 2631.2, 76.30, 148.2, 1.936, 1.428, "Satellite"),
                    new SpaceObject("Callisto", 2410.3, 58.65, 107.6, 1.83, 1.23603, "Satellite"),
                    new SpaceObject("Io", 1821.5, 25.32, 89.3, 3.528, 1.797, "Satellite"),
                    new SpaceObject("Europa", 1561, 15.93, 48, 3.01, 1.316, "Satellite"),
                }),
                new SpaceObject("Saturn", 58232, 827130, 568460, 0.70, 10.445, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Titan", 2576, 71.52, 134.5, 1.88, 1.354, "Satellite"),
                    new SpaceObject("Rhea", 764.4, 1.87, 2.3166, 1.23, 0.26, "Satellite"),
                    new SpaceObject("Iapetus", 736, 1.55, 1.9739, 1.08, 0.223, "Satellite"),
                    new SpaceObject("Dione", 561.6, 0.73, 1.096, 1.48, 0.232, "Satellite"),
                    new SpaceObject("Tethys", 533, 0.624, 0.6173, 1.15, 0.145, "Satellite"),
                    new SpaceObject("Enceladus", 252.1, 0.067, 0.108, 1.61, 0.111, "Satellite"),
                    new SpaceObject("Mimas", 198.3, 0.033, 0.03749, 1.15, 0.06363, "Satellite")
                }),
                new SpaceObject("Uranus", 25362, 68340, 86832, 1.30, 8.87, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Titania", 788.9, 2.06, 3.526, 1.72, 0.378, "Satellite"),
                    new SpaceObject("Oberon", 761.4, 1.85, 3.014, 1.63, 0.347, "Satellite"),
                    new SpaceObject("Umbriel", 584.7, 0.84, 1.2, 1.4, 0.234, "Satellite"),
                    new SpaceObject("Ariel", 578.9, 0.81, 1.35, 1.67, 0.269, "Satellite"),
                    new SpaceObject("Miranda", 235.8, 0.055, 0.0659, 1.20, 0.07910375, "Satellite"),
                }),
                new SpaceObject("Neptune", 24622, 62540, 102430, 1.76, 11.15, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Triton", 1353.4, 10.38, 21.5, 2.061, 0.782, "Satellite"),
                    new SpaceObject("Proteus", 210, 0.038, 0.050, 1.3, 0.0666, "Satellite"),
                }),
                new SpaceObject("Eris", 1170, 7, 16.7, 2.25, 0.662, "Dwarf planet"),
                new SpaceObject("Pluto", 1153, 7.15, 13.105, 2.0, 0.61, "Dwarf planet"),
                new SpaceObject("Makemake", 710, 1.8, 3, 2.0, 0.4,  "Dwarf planet"),
                new SpaceObject("Haumea", 575, 1.3, 4.006, 3, 0.44, "Dwarf planet"),
                new SpaceObject("Ceres", 475, 0.437, 0.95, 2.08, 0.27, "Dwarf planet"),
                new SpaceObject("Pallas", 266, 0.078, 0.211, 2.8, 0.2, "Asteroid"),
                new SpaceObject("Vesta", 264.6, 0.078, 0.262, 3.42, 0.251, "Asteroid")
            })
        };
    }
}

Program.cs

// ...
builder.Services.AddSingleton<SpaceObjectDataProvider>();
