HorizontalAlignment Enum

Lists the horizontal alignment options.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.1.dll

NuGet Package: DevExpress.Blazor

Declaration

public enum HorizontalAlignment

Members

Name	Description
Center	Center alignment.
Left	Left alignment.
Right	Right alignment.

Related API Members

The following properties accept/return HorizontalAlignment values:

Show 17 items

• DialogDisplayOptions.HorizontalAlignment
• DxChartAxisLabel.Alignment
• DxChartAxisTitle.HorizontalAlignment
• DxChartConstantLineLabel.HorizontalAlignment
• DxChartLegend.HorizontalAlignment
• DxChartSeriesLabel.Alignment
• DxChartTitle.HorizontalAlignment
• DxPopup.HorizontalAlignment
• DxToastProvider.HorizontalAlignment
• DxWindow.HorizontalAlignment
• IChartSeriesLabel.Alignment
• LegendBaseSettings<TComponent, TModel>.HorizontalAlignment
• Table.ContentHorizontalAlignment
• TableCell.ContentHorizontalAlignment
• TableCellProperties.ContentHorizontalAlignment
• TableProperties.ContentHorizontalAlignment
• TitleBaseSettings.HorizontalAlignment

Remarks

The HorizontalAlignment values define how to horizontally align the linked element to the target element. See the following examples:

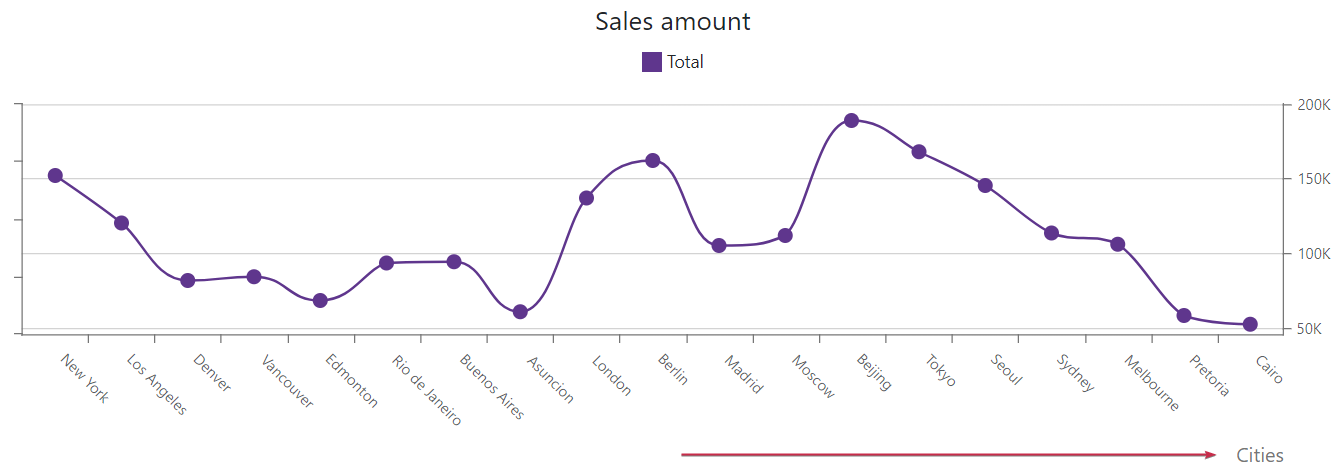

• Set an axis title’s HorizontalAlignment property to Right to align the title’s right edge to the right edge of the corresponding axis.

  <DxChart Data="SalesData"
           Width="100%">
      <DxChartTitle Text="Sales amount" />
      <DxChartLegend Position="RelativePosition.Outside"/>
      <DxChartArgumentAxis>
          <DxChartAxisTitle Text="Cities"
                            HorizontalAlignment="HorizontalAlignment.Right" />
      </DxChartArgumentAxis>
      <DxChartValueAxis>
          <DxChartAxisLabel Format="ChartElementFormat.Percent()" />
      </DxChartValueAxis>
      <DxChartValueAxis Name="TotalAxis" Alignment="ChartAxisAlignment.Far">
      </DxChartValueAxis>
      <DxChartSplineSeries Name="Total"
                           SummaryMethod="Enumerable.Sum"
                           ArgumentField="@((SaleInfo s) => s.City)"
                           ValueField="@(s => s.Amount)"
                           Axis="TotalAxis" />
  </DxChart>

  @code {
      IEnumerable<SaleInfo> SalesData;

      protected override async Task OnInitializedAsync() {
          SalesData = await Sales.GetSalesAsync();
      }
  }

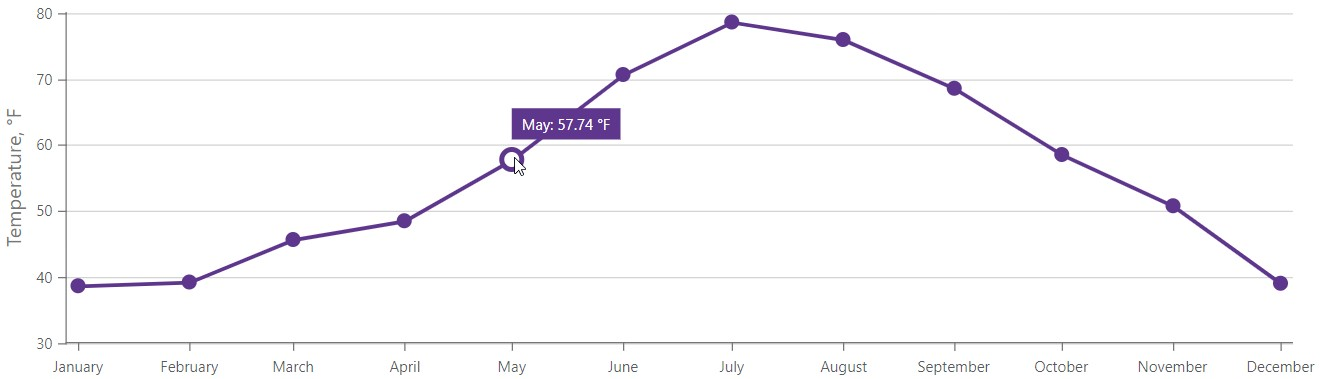

• Set the Alignment property to Left to align left edges of series labels to corresponding series points.

  <DxChart Data="@WeatherForecasts"
           Width="100%"
           CustomizeSeriesPoint="@PreparePointLabel">
      <DxChartLineSeries SummaryMethod="@(i => i.Average())"
                         ValueField="@((DetailedWeatherSummary i) => i.AverageTemperatureF)"
                         ArgumentField="@(i => new DateTime(2000, i.Date.Month, 1))"
                         Name="Temperature, F"
                         Filter="@((DetailedWeatherSummary  i) => i.City == "NEW YORK")">
          <DxChartSeriesLabel Position="RelativePosition.Outside"
                              FormatPattern="{argument:MMMM}: {value:#.##} °F"
                              Alignment="HorizontalAlignment.Left">
          </DxChartSeriesLabel>
      </DxChartLineSeries>
      <DxChartLegend Visible="false" />
      <DxChartValueAxis>
          <DxChartAxisTitle Text="Temperature, °F" />
      </DxChartValueAxis>
      <DxChartArgumentAxis>
          <DxChartAxisLabel Format="ChartElementFormat.Month" />
      </DxChartArgumentAxis>
  </DxChart>

  @code {
      IEnumerable<DetailedWeatherSummary> WeatherForecasts;

      protected override async Task OnInitializedAsync() {
          WeatherForecasts = await WeatherSummaryDataProvider.GetDataAsync();
      }

      protected void PreparePointLabel(ChartSeriesPointCustomizationSettings pointSettings) {
          DateTime argument = (DateTime)pointSettings.Point.Argument;
          if (argument.Date.Month == 5)
              pointSettings.PointLabel.Visible = true;
      }
  }
