DxTreeList.RowClick Event

Fires when a user clicks or taps a TreeList row or focuses a data cell and presses Enter.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

Declaration

[Parameter]
public EventCallback<TreeListRowClickEventArgs> RowClick { get; set; }

Parameters

Type	Description
TreeListRowClickEventArgs	The event data.

Remarks

The TreeList component raises the RowClick event in response to the following actions:

• A user clicks a data row with a pointing device.
• A user focuses a data cell in display mode and presses Enter.

The InputDevice event argument determines which action triggered the event. Use Column and VisibleIndex arguments to determine the position of the processed cell. The TreeList argument allows you to access the TreeList and its extensive API.

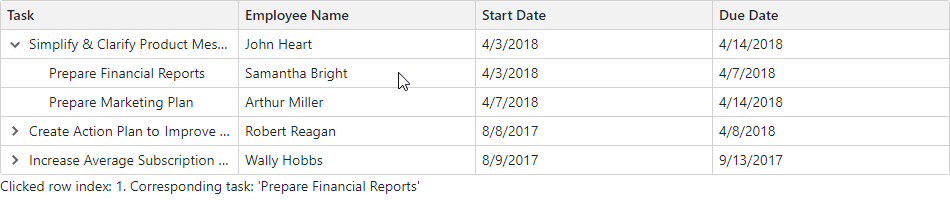

The following code snippet displays the following information about the clicked row:

• The row’s visible index
• The task name that corresponds to the row

Razor

@inject EmployeeTaskService EmployeeTaskService

<DxTreeList Data="TreeListData" KeyFieldName="Id" ParentKeyFieldName="ParentId" RowClick="OnRowClick">
    <Columns>
        <DxTreeListDataColumn FieldName="Name" Caption="Task" />
        <DxTreeListDataColumn FieldName="EmployeeName" />
        <DxTreeListDataColumn FieldName="StartDate" />
        <DxTreeListDataColumn FieldName="DueDate" />
    </Columns>
</DxTreeList>

@Alert

@code {
    List<EmployeeTask> TreeListData { get; set; }
    public string Alert { get; set; } = "";

    protected override void OnInitialized() {
        TreeListData = EmployeeTaskService.GenerateData();
    }
    void OnRowClick(TreeListRowClickEventArgs e) {
        Alert = $"Clicked row index: {e.VisibleIndex}. Corresponding task: '{e.TreeList.GetRowValue(e.VisibleIndex, "Name")}'";
    }
}

EmployeeTask.cs

public class EmployeeTask{
    public int Id { get; set; }
    public int ParentId { get; set; }
    public string Name { get; set; }
    public string EmployeeName { get; set; }
    public DateTime StartDate { get; set; }
    public DateTime DueDate { get; set; }

    public EmployeeTask(
        int id,
        int parentId,
        string name,
        string employeeName,
        DateTime startDate,
        DateTime dueDate
    )
    {
        Id = id;
        ParentId = parentId;
        Name = name;
        EmployeeName = employeeName;
        StartDate = startDate;
        DueDate = dueDate;
    }
}

EmployeeTaskService.cs

public class EmployeeTaskService {
    public List<EmployeeTask> GenerateData() {
        return new List<EmployeeTask>() {
            new EmployeeTask(1, 0, "Simplify & Clarify Product Messaging", "John Heart", new DateTime(2018, 4, 3), new DateTime(2018, 4, 14)),
            new EmployeeTask(2, 1, "Prepare Financial Reports", "Samantha Bright", new DateTime(2018, 4, 3), new DateTime(2018, 4, 7)),
            new EmployeeTask(3, 1, "Prepare Marketing Plan", "Arthur Miller", new DateTime(2018, 4, 7), new DateTime(2018, 4, 14)),
            new EmployeeTask(4, 0, "Create Action Plan To Improve Customer Engagement", "Robert Reagan", new DateTime(2017, 8, 8), new DateTime(2018, 4, 8)),
            new EmployeeTask(5, 4, "Update Personnel Files", "Greta Sims", new DateTime(2017, 8, 8), new DateTime(2017, 10, 18)),
            new EmployeeTask(6, 4, "Review Health Insurance Options ", "Brett Wade", new DateTime(2017, 9, 27), new DateTime(2017, 11, 10)),
            new EmployeeTask(7, 4, "Choose Between PPO And HMO Health Plan", "Sandra Johnson", new DateTime(2017, 12, 13), new DateTime(2018, 3, 23)),
            new EmployeeTask(8, 4, "Update Google Adwords Strategy", "Ed Holmes", new DateTime(2017, 8, 23), new DateTime(2017, 12, 23)),
            new EmployeeTask(9, 4, "Create New Brochure Design", "Barb Banks", new DateTime(2018, 1, 3), new DateTime(2018, 3, 14)),
            new EmployeeTask(10, 4, "Obtain Price Quote For New Brochure", "Kevin Carter", new DateTime(2018, 2, 1), new DateTime(2018, 3, 15)),
            new EmployeeTask(11, 4, "Brochure Design Review", "Cindy Stanwick", new DateTime(2017, 8, 22), new DateTime(2017, 10, 28)),
            new EmployeeTask(12, 4, "Review Website Re-Design Strategy", "Sammy Hill", new DateTime(2017, 9, 16), new DateTime(2018, 3, 6)),
            new EmployeeTask(13, 4, "Rollout New Website", "Davey Jones", new DateTime(2017, 11, 7), new DateTime(2018, 2, 6)),
            new EmployeeTask(14, 4, "Update Sales/Marketing Strategy", "Victor Norris", new DateTime(2017, 12, 13), new DateTime(2018, 4, 2)),
            new EmployeeTask(15, 4, "Update Sales/Revenue Report", "Mary Stern", new DateTime(2017, 12, 25), new DateTime(2018, 4, 2)),
            new EmployeeTask(16, 4, "Direct Vs Online Sales Comparison Report", "Robin Cosworth", new DateTime(2018, 1, 2), new DateTime(2018, 3, 20)),
            new EmployeeTask(17, 4, "Review Sales Report and Approve Modifications", "Kelly Rodriguez", new DateTime(2017, 9, 4), new DateTime(2017, 10, 30)),
            new EmployeeTask(18, 4, "Update R&D Strategy", "James Anderson", new DateTime(2017, 11, 13), new DateTime(2017, 12, 4)),
            new EmployeeTask(19, 4, "Discuss Updated R&D Strategy", "Antony Remmen", new DateTime(2017, 10, 29), new DateTime(2017, 12, 31)),
            new EmployeeTask(20, 4, "Update QA Strategy", "Olivia Peyton", new DateTime(2017, 10, 31), new DateTime(2017, 11, 2)),
            new EmployeeTask(21, 4, "Schedule Training Events", "Taylor Riley", new DateTime(2017, 11, 19), new DateTime(2018, 4, 7)),
            new EmployeeTask(22, 4, "Approve The Hiring Of John Jeffers", "Amelia Harper", new DateTime(2018, 1, 7), new DateTime(2018, 4, 8)),
            new EmployeeTask(23, 0, "Increase Average Subscription Price ", "Wally Hobbs", new DateTime(2017, 8, 9), new DateTime(2017, 9, 13)),
            new EmployeeTask(24, 23, "Update Non-Compete Agreements", "Brad Jameson", new DateTime(2017, 8, 9), new DateTime(2017, 9, 3)),
            new EmployeeTask(25, 23, "Update Employee Records With New NDA", "Karen Goodson", new DateTime(2017, 8, 23), new DateTime(2018, 9, 10))
        };
    }
}

Program.cs

// ...
builder.Services.AddSingleton<EmployeeTaskService>();

You can enable the AllowSelectRowByClick property to allow users to select rows by mouse clicks, tap gestures, and keyboard shortcuts. Shift+Click selects a range of rows. Ctrl+Click toggles the selected state for an individual row. When you handle the RowClick event, use ShiftKey and CtrlKey arguments to determine whether the user held down the Shift or Ctrl key.

Limitations

The RowClick event does not fire in the following cases:

• A user focuses a data cell that contains nested focusable objects (links, buttons, editors, etc.) and presses Enter.
• A user clicks or taps expand and collapse buttons or focuses them and presses Enter.
• A user clicks or taps a space to the right of the TreeList component. This space appears when the total width of all columns is less than the component’s width.
