IChartSeriesLabel.Connector Property

Specifies the label’s connector settings.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
IChartSeriesLabelConnector Connector { get; }

#Property Value

Type Description
IChartSeriesLabelConnector

A series label connector.

#Remarks

IChartSeriesLabel properties allow you to configure point label settings. To access these settings, use the PointLabel property in a CustomizeSeriesPoint event handler.

Connectors are used to link series points and their labels. The Connector property allows you to specify the color, visibility, and width of a specific connector.

The following code snippet hides connectors for all visible point labels.

Razor
<DxChart Data="@WeatherForecasts" CustomizeSeriesPoint="@PreparePointLabel">
    <DxChartLineSeries SummaryMethod="@(i => (int)i.Average())"
                       ValueField="@((WeatherForecast i) => i.TemperatureF)"
                       ArgumentField="@(i => i.Date.Date)"
                       Name="Temperature, F">
        <DxChartSeriesLabel Position="RelativePosition.Outside" />
    </DxChartLineSeries>
    <DxChartLegend Position="RelativePosition.Outside" />
</DxChart>

@code {
    WeatherForecast[] WeatherForecasts;
    ...
    protected void PreparePointLabel(ChartSeriesPointCustomizationSettings pointSettings) {
        double value = (double)pointSettings.Point.Value;
        if (value > 25 && value < 75) {
            pointSettings.PointLabel.Visible = true;
            pointSettings.PointLabel.Connector.Visible = false;
        }
    }
}

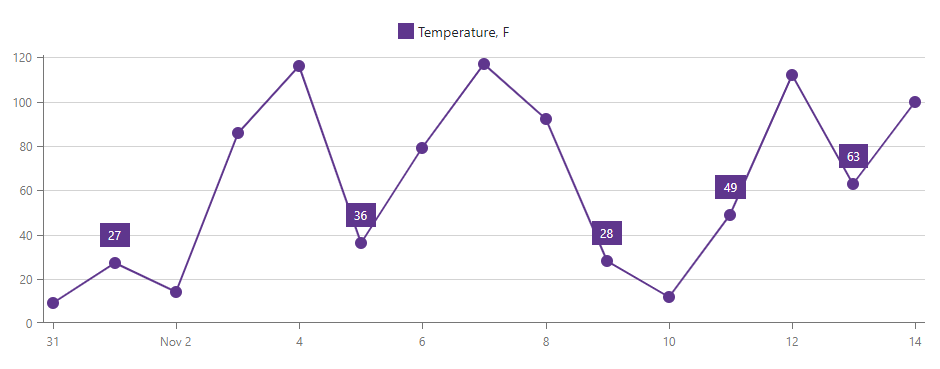

Chart Series Labels - Connectors

Run Demo: Charts - Series Label Customization
