DxTreeList.ContextMenus Property

Specifies available context menus.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.2.dll

Declaration

[DefaultValue(TreeListContextMenus.None)]
[Parameter]
public TreeListContextMenus ContextMenus { get; set; }

Property Value

Type	Default	Description
TreeListContextMenus	None	A collection of TreeListContextMenus values.

Available values:

Name	Description
None	No context menus.
Header	The header context menu.
Footer	The footer context menu.
DataRow	The data row context menu.
All	All context menus.

Remarks

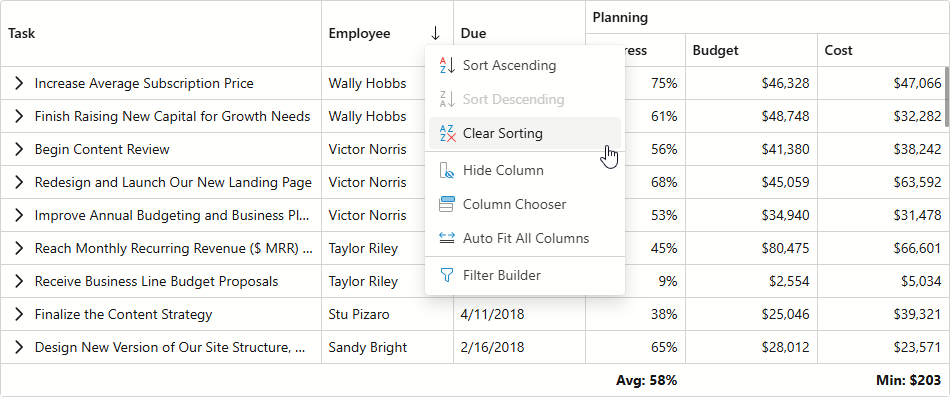

The DevExpress Blazor TreeList allows you to display context menus with predefined and custom commands.

Run Demo: Context Menu

Add Context Menus

You can display context menus for the following TreeList elements:

Assign TreeListContextMenus values to the ContextMenus property to display contextual commands when users right-click TreeList elements.

Note

• The TreeList does not display a context menu if the menu contains no items.
• Once you activate a context menu for specific TreeList elements, the browser context menu becomes unavailable for the corresponding region (even if the TreeList context menu is empty).

The following example demonstrates how to activate/deactivate TreeList context menus:

Razor

@inject EmployeeTaskService EmployeeTaskService

<DxTreeList Data="TreeListData"
            KeyFieldName="Id"
            ParentKeyFieldName="ParentId"
            ContextMenu="AvailableContextMenus">
    <Columns>
        <DxTreeListDataColumn FieldName="Name" Caption="Task" />
        <DxTreeListDataColumn FieldName="EmployeeName" />
        <DxTreeListDataColumn FieldName="StartDate" />
        <DxTreeListDataColumn FieldName="DueDate" />
    </Columns>
</DxTreeList>

@code {
    List<EmployeeTask> TreeListData { get; set; }
    TreeListContextMenus AvailableContextMenus;

    protected override void OnInitialized() {
        TreeListData = EmployeeTaskService.GenerateData();
        // Activates all context menus (including menus without built-in items)
        AvailableContextMenus = TreeListContextMenus.All;
        // Disables all context menus
        AvailableContextMenus = TreeListContextMenus.None;
        // Activates only context menus that contain built-in items
        AvailableContextMenus = TreeListContextMenus.Header;
        // Activates menus for all elements except data rows
        AvailableContextMenus = TreeListContextMenus.All & ~TreeListContextMenus.DataRow;
    }
}

EmployeeTask.cs

public class EmployeeTask {
    public int Id { get; set; }
    public int ParentId { get; set; }
    public string Name { get; set; }
    public string EmployeeName { get; set; }
    public DateTime StartDate { get; set; }
    public DateTime DueDate { get; set; }
    public int Progress { get; set; }
    public EmployeeTask() { }
    public EmployeeTask(
        int id,
        int parentId,
        string name,
        string employeeName,
        DateTime startDate,
        DateTime dueDate,
        int progress
        )
    {
        Id = id;
        ParentId = parentId;
        Name = name;
        EmployeeName = employeeName;
        StartDate = startDate;
        DueDate = dueDate;
        Progress = progress;
    }
}

EmployeeTaskService.cs

public class EmployeeTaskService {
    public List<EmployeeTask> GenerateData() {
        return new List<EmployeeTask>() {
            new EmployeeTask(1, 0, "Simplify & Clarify Product Messaging", "John Heart", new DateTime(2018, 4, 3), new DateTime(2018, 4, 14), 14),
            new EmployeeTask(2, 1, "Prepare Financial Reports", "Samantha Bright", new DateTime(2018, 4, 3), new DateTime(2018, 4, 7), 17),
            new EmployeeTask(3, 1, "Prepare Marketing Plan", "Arthur Miller", new DateTime(2018, 4, 7), new DateTime(2018, 4, 14), 11),
            new EmployeeTask(4, 0, "Create Action Plan to Improve Customer Engagement", "Robert Reagan", new DateTime(2017, 8, 8), new DateTime(2018, 4, 8), 23),
            new EmployeeTask(5, 4, "Update Personnel Files", "Greta Sims", new DateTime(2017, 8, 8), new DateTime(2017, 10, 18), 100),
            new EmployeeTask(6, 4, "Review Health Insurance Options", "Brett Wade", new DateTime(2017, 9, 27), new DateTime(2017, 11, 10), 37),
            new EmployeeTask(7, 4, "Choose Between PPO and HMO Health Plan", "Sandra Johnson", new DateTime(2017, 12, 13), new DateTime(2018, 3, 23), 17),
            new EmployeeTask(8, 4, "Update Google Adwords Strategy", "Ed Holmes", new DateTime(2017, 8, 23), new DateTime(2017, 12, 23), 45),
            new EmployeeTask(9, 4, "Create New Brochure Design", "Barb Banks", new DateTime(2018, 1, 3), new DateTime(2018, 3, 14), 17),
            new EmployeeTask(10, 4, "Obtain Price Quote for New Brochure", "Kevin Carter", new DateTime(2018, 2, 1), new DateTime(2018, 3, 15), 18),
            new EmployeeTask(11, 4, "Brochure Design Review", "Cindy Stanwick", new DateTime(2017, 8, 22), new DateTime(2017, 10, 28), 4),
            new EmployeeTask(12, 4, "Review Website Redesign Strategy", "Sammy Hill", new DateTime(2017, 9, 16), new DateTime(2018, 3, 6), 73),
            new EmployeeTask(13, 4, "Roll Out New Website", "Davey Jones", new DateTime(2017, 11, 7), new DateTime(2018, 2, 6), 9),
            new EmployeeTask(14, 4, "Update Sales/Marketing Strategy", "Victor Norris", new DateTime(2017, 12, 13), new DateTime(2018, 4, 2), 5),
            new EmployeeTask(15, 4, "Update Sales/Revenue Report", "Mary Stern", new DateTime(2017, 12, 25), new DateTime(2018, 4, 2), 4),
            new EmployeeTask(16, 4, "Direct vs Online Sales Comparison Report", "Robin Cosworth", new DateTime(2018, 1, 2), new DateTime(2018, 3, 20), 14),
            new EmployeeTask(17, 4, "Review Sales Report and Approve Modifications", "Kelly Rodriguez", new DateTime(2017, 9, 4), new DateTime(2017, 10, 30), 8),
            new EmployeeTask(18, 4, "Update R&D Strategy", "James Anderson", new DateTime(2017, 11, 13), new DateTime(2017, 12, 4), 12),
            new EmployeeTask(19, 4, "Discuss Updated R&D Strategy", "Antony Remmen", new DateTime(2017, 10, 29), new DateTime(2017, 12, 31), 14),
            new EmployeeTask(20, 4, "Update QA Strategy", "Olivia Peyton", new DateTime(2017, 10, 31), new DateTime(2017, 11, 2), 18),
            new EmployeeTask(21, 4, "Schedule Training Events", "Taylor Riley", new DateTime(2017, 11, 19), new DateTime(2018, 4, 7), 21),
            new EmployeeTask(22, 4, "Approve Hiring of John Jeffers", "Amelia Harper", new DateTime(2018, 1, 7), new DateTime(2018, 4, 8), 10),
            new EmployeeTask(23, 0, "Increase Average Subscription Price", "Wally Hobbs", new DateTime(2017, 8, 9), new DateTime(2017, 9, 13), 96),
            new EmployeeTask(24, 23, "Update Non-Compete Agreements", "Brad Jameson", new DateTime(2017, 8, 9), new DateTime(2017, 9, 3), 96),
            new EmployeeTask(25, 23, "Update Employee Records with New NDA", "Karen Goodson", new DateTime(2017, 8, 23), new DateTime(2018, 9, 10), 100)
        };
    }
}

Program.cs

// ...
builder.Services.AddSingleton<EmployeeTaskService>();

Built-in Items

The table below lists context menu types and built-in commands available in the TreeList:

- The context menu includes this item by default.
- You can add this item to the context menu.

Menu Item	Data Row	Footer	Header
AutoFitAll
ClearColumnSorting
CollapseAll
ExpandAll
HideColumn
ShowColumnChooser
ShowFilterBuilder
SortColumnAscending
SortColumnDescending

The resulting item collection depends on the menu type, TreeList settings, and component state. For instance, a header context menu contains the SortColumnAscending command only if sorting is allowed (on both TreeList and column levels). The ClearColumnSorting command is disabled if the target column is not sorted.

Customization

The CustomizeContextMenu event occurs before a context menu appears. Handle the event to customize the built-in item collection or add custom commands.

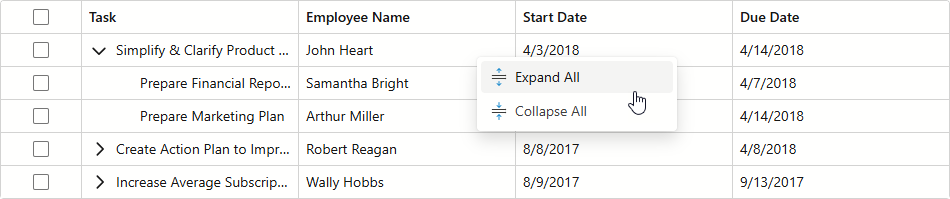

The following code snippet customizes commands available in header and data row context menus:

Razor

@inject EmployeeTaskService EmployeeTaskService

<DxTreeList Data="TreeListData"
            KeyFieldName="Id"
            ParentKeyFieldName="ParentId"
            ContextMenus="@(TreeListContextMenus.Header | TreeListContextMenus.DataRow)"
            CustomizeContextMenu="CustomizeContextMenu">
    <Columns>
        <DxTreeListSelectionColumn Width="80px"/>
        <DxTreeListDataColumn FieldName="Name" Caption="Task" />
        <DxTreeListDataColumn FieldName="EmployeeName" />
        <DxTreeListDataColumn FieldName="StartDate" />
        <DxTreeListDataColumn FieldName="DueDate" />
    </Columns>
</DxTreeList>

@code {
    List<EmployeeTask> TreeListData { get; set; }

    protected override void OnInitialized() {
        TreeListData = EmployeeTaskService.GenerateData();
    }
    void CustomizeContextMenu(TreeListCustomizeContextMenuEventArgs args) {
        // Customizes context menu commands for the selection column header
        if (args.Context is TreeListHeaderCommandContext headerContext) {
            if (headerContext.Column is ITreeListSelectionColumn selectionColumn) {
                var isFixed = selectionColumn.FixedPosition != TreeListColumnFixedPosition.None;
                string itemText = isFixed ? "Unfix Column" : "Fix Column to the Left";
                var newValue = isFixed ? TreeListColumnFixedPosition.None : TreeListColumnFixedPosition.Left;
                args.Items.AddCustomItem(itemText, () => {
                    headerContext.TreeList.BeginUpdate();
                    headerContext.Column.FixedPosition = newValue;
                    headerContext.TreeList.EndUpdate();
                });
            }
        }
        // Adds context menu commands for data rows
        if (args.Context is TreeListDataRowCommandContext) {
            args.Items.Add(TreeListContextMenuDefaultItemNames.ExpandAll);
            args.Items.Add(TreeListContextMenuDefaultItemNames.CollapseAll);
        }
    }
}

EmployeeTask.cs

public class EmployeeTask {
    public int Id { get; set; }
    public int ParentId { get; set; }
    public string Name { get; set; }
    public string EmployeeName { get; set; }
    public DateTime StartDate { get; set; }
    public DateTime DueDate { get; set; }
    public int Progress { get; set; }
    public EmployeeTask() { }
    public EmployeeTask(
        int id,
        int parentId,
        string name,
        string employeeName,
        DateTime startDate,
        DateTime dueDate,
        int progress
        )
    {
        Id = id;
        ParentId = parentId;
        Name = name;
        EmployeeName = employeeName;
        StartDate = startDate;
        DueDate = dueDate;
        Progress = progress;
    }
}

EmployeeTaskService.cs

public class EmployeeTaskService {
    public List<EmployeeTask> GenerateData() {
        return new List<EmployeeTask>() {
            new EmployeeTask(1, 0, "Simplify & Clarify Product Messaging", "John Heart", new DateTime(2018, 4, 3), new DateTime(2018, 4, 14), 14),
            new EmployeeTask(2, 1, "Prepare Financial Reports", "Samantha Bright", new DateTime(2018, 4, 3), new DateTime(2018, 4, 7), 17),
            new EmployeeTask(3, 1, "Prepare Marketing Plan", "Arthur Miller", new DateTime(2018, 4, 7), new DateTime(2018, 4, 14), 11),
            new EmployeeTask(4, 0, "Create Action Plan to Improve Customer Engagement", "Robert Reagan", new DateTime(2017, 8, 8), new DateTime(2018, 4, 8), 23),
            new EmployeeTask(5, 4, "Update Personnel Files", "Greta Sims", new DateTime(2017, 8, 8), new DateTime(2017, 10, 18), 100),
            new EmployeeTask(6, 4, "Review Health Insurance Options", "Brett Wade", new DateTime(2017, 9, 27), new DateTime(2017, 11, 10), 37),
            new EmployeeTask(7, 4, "Choose Between PPO and HMO Health Plan", "Sandra Johnson", new DateTime(2017, 12, 13), new DateTime(2018, 3, 23), 17),
            new EmployeeTask(8, 4, "Update Google Adwords Strategy", "Ed Holmes", new DateTime(2017, 8, 23), new DateTime(2017, 12, 23), 45),
            new EmployeeTask(9, 4, "Create New Brochure Design", "Barb Banks", new DateTime(2018, 1, 3), new DateTime(2018, 3, 14), 17),
            new EmployeeTask(10, 4, "Obtain Price Quote for New Brochure", "Kevin Carter", new DateTime(2018, 2, 1), new DateTime(2018, 3, 15), 18),
            new EmployeeTask(11, 4, "Brochure Design Review", "Cindy Stanwick", new DateTime(2017, 8, 22), new DateTime(2017, 10, 28), 4),
            new EmployeeTask(12, 4, "Review Website Redesign Strategy", "Sammy Hill", new DateTime(2017, 9, 16), new DateTime(2018, 3, 6), 73),
            new EmployeeTask(13, 4, "Roll Out New Website", "Davey Jones", new DateTime(2017, 11, 7), new DateTime(2018, 2, 6), 9),
            new EmployeeTask(14, 4, "Update Sales/Marketing Strategy", "Victor Norris", new DateTime(2017, 12, 13), new DateTime(2018, 4, 2), 5),
            new EmployeeTask(15, 4, "Update Sales/Revenue Report", "Mary Stern", new DateTime(2017, 12, 25), new DateTime(2018, 4, 2), 4),
            new EmployeeTask(16, 4, "Direct vs Online Sales Comparison Report", "Robin Cosworth", new DateTime(2018, 1, 2), new DateTime(2018, 3, 20), 14),
            new EmployeeTask(17, 4, "Review Sales Report and Approve Modifications", "Kelly Rodriguez", new DateTime(2017, 9, 4), new DateTime(2017, 10, 30), 8),
            new EmployeeTask(18, 4, "Update R&D Strategy", "James Anderson", new DateTime(2017, 11, 13), new DateTime(2017, 12, 4), 12),
            new EmployeeTask(19, 4, "Discuss Updated R&D Strategy", "Antony Remmen", new DateTime(2017, 10, 29), new DateTime(2017, 12, 31), 14),
            new EmployeeTask(20, 4, "Update QA Strategy", "Olivia Peyton", new DateTime(2017, 10, 31), new DateTime(2017, 11, 2), 18),
            new EmployeeTask(21, 4, "Schedule Training Events", "Taylor Riley", new DateTime(2017, 11, 19), new DateTime(2018, 4, 7), 21),
            new EmployeeTask(22, 4, "Approve Hiring of John Jeffers", "Amelia Harper", new DateTime(2018, 1, 7), new DateTime(2018, 4, 8), 10),
            new EmployeeTask(23, 0, "Increase Average Subscription Price", "Wally Hobbs", new DateTime(2017, 8, 9), new DateTime(2017, 9, 13), 96),
            new EmployeeTask(24, 23, "Update Non-Compete Agreements", "Brad Jameson", new DateTime(2017, 8, 9), new DateTime(2017, 9, 3), 96),
            new EmployeeTask(25, 23, "Update Employee Records with New NDA", "Karen Goodson", new DateTime(2017, 8, 23), new DateTime(2018, 9, 10), 100)
        };
    }
}

Program.cs

// ...
builder.Services.AddSingleton<EmployeeTaskService>();

Implements

ContextMenus
