DxTreeList.SearchText Property

Specifies the text that the TreeList uses to filter and highlight data.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.1.dll

NuGet Package: DevExpress.Blazor

Declaration

[DefaultValue(null)]
[Parameter]
public string SearchText { get; set; }

Property Value

Type	Default	Description
String	null	The search text.

Remarks

The TreeList component can search for a string in all visible data cells, filter, and highlight search results. The SearchText property allows you to specify the search query in code. You can use special characters to create complex search criteria.

Use the SearchTextParseMode property to specify how the TreeList searches for a match if the query contains multiple words (an exact matching phrase, all words in any order, or any word). The FilterTreeMode property specifies whether the TreeList component displays children/parents for rows that meet search criteria.

You can handle the SearchTextChanged event to respond to search text changes. The event is handled automatically when you use two-way data binding for the SearchText property (@bind-SearchText).

Read Tutorial: Search Box Run Demo: TreeList - Search Box

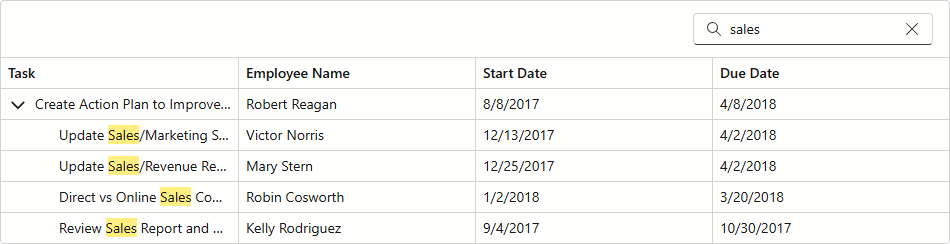

Set Initial Search String

Set the ShowSearchBox property to true to display the built-in search box in the TreeList component. Use the SearchText property to set an initial search string or get the current search box value:

Razor

@inject EmployeeTaskService EmployeeTaskService

<DxTreeList Data="TreeListData"
            KeyFieldName="Id"
            ParentKeyFieldName="ParentId"
            ShowSearchBox="true"
            SearchText="sales">
    <Columns>
        <DxTreeListDataColumn FieldName="Name" Caption="Task" />
        <DxTreeListDataColumn FieldName="EmployeeName" />
        <DxTreeListDataColumn FieldName="StartDate" />
        <DxTreeListDataColumn FieldName="DueDate" />
    </Columns>
</DxTreeList>

@code {
    List<EmployeeTask> TreeListData { get; set; }

    protected override void OnInitialized() {
        TreeListData = EmployeeTaskService.GenerateData();
    }
}

EmployeeTask.cs

public class EmployeeTask {
    public int Id { get; set; }
    public int ParentId { get; set; }
    public string Name { get; set; }
    public string EmployeeName { get; set; }
    public DateTime StartDate { get; set; }
    public DateTime DueDate { get; set; }
    public int Progress { get; set; }
    public EmployeeTask() { }
    public EmployeeTask(
        int id,
        int parentId,
        string name,
        string employeeName,
        DateTime startDate,
        DateTime dueDate,
        int progress
        )
    {
        Id = id;
        ParentId = parentId;
        Name = name;
        EmployeeName = employeeName;
        StartDate = startDate;
        DueDate = dueDate;
        Progress = progress;
    }
}

EmployeeTaskService.cs

public class EmployeeTaskService {
    public List<EmployeeTask> GenerateData() {
        return new List<EmployeeTask>() {
            new EmployeeTask(1, 0, "Simplify & Clarify Product Messaging", "John Heart", new DateTime(2018, 4, 3), new DateTime(2018, 4, 14), 14),
            new EmployeeTask(2, 1, "Prepare Financial Reports", "Samantha Bright", new DateTime(2018, 4, 3), new DateTime(2018, 4, 7), 17),
            new EmployeeTask(3, 1, "Prepare Marketing Plan", "Arthur Miller", new DateTime(2018, 4, 7), new DateTime(2018, 4, 14), 11),
            new EmployeeTask(4, 0, "Create Action Plan to Improve Customer Engagement", "Robert Reagan", new DateTime(2017, 8, 8), new DateTime(2018, 4, 8), 23),
            new EmployeeTask(5, 4, "Update Personnel Files", "Greta Sims", new DateTime(2017, 8, 8), new DateTime(2017, 10, 18), 100),
            new EmployeeTask(6, 4, "Review Health Insurance Options", "Brett Wade", new DateTime(2017, 9, 27), new DateTime(2017, 11, 10), 37),
            new EmployeeTask(7, 4, "Choose Between PPO and HMO Health Plan", "Sandra Johnson", new DateTime(2017, 12, 13), new DateTime(2018, 3, 23), 17),
            new EmployeeTask(8, 4, "Update Google Adwords Strategy", "Ed Holmes", new DateTime(2017, 8, 23), new DateTime(2017, 12, 23), 45),
            new EmployeeTask(9, 4, "Create New Brochure Design", "Barb Banks", new DateTime(2018, 1, 3), new DateTime(2018, 3, 14), 17),
            new EmployeeTask(10, 4, "Obtain Price Quote for New Brochure", "Kevin Carter", new DateTime(2018, 2, 1), new DateTime(2018, 3, 15), 18),
            new EmployeeTask(11, 4, "Brochure Design Review", "Cindy Stanwick", new DateTime(2017, 8, 22), new DateTime(2017, 10, 28), 4),
            new EmployeeTask(12, 4, "Review Website Redesign Strategy", "Sammy Hill", new DateTime(2017, 9, 16), new DateTime(2018, 3, 6), 73),
            new EmployeeTask(13, 4, "Roll Out New Website", "Davey Jones", new DateTime(2017, 11, 7), new DateTime(2018, 2, 6), 9),
            new EmployeeTask(14, 4, "Update Sales/Marketing Strategy", "Victor Norris", new DateTime(2017, 12, 13), new DateTime(2018, 4, 2), 5),
            new EmployeeTask(15, 4, "Update Sales/Revenue Report", "Mary Stern", new DateTime(2017, 12, 25), new DateTime(2018, 4, 2), 4),
            new EmployeeTask(16, 4, "Direct vs Online Sales Comparison Report", "Robin Cosworth", new DateTime(2018, 1, 2), new DateTime(2018, 3, 20), 14),
            new EmployeeTask(17, 4, "Review Sales Report and Approve Modifications", "Kelly Rodriguez", new DateTime(2017, 9, 4), new DateTime(2017, 10, 30), 8),
            new EmployeeTask(18, 4, "Update R&D Strategy", "James Anderson", new DateTime(2017, 11, 13), new DateTime(2017, 12, 4), 12),
            new EmployeeTask(19, 4, "Discuss Updated R&D Strategy", "Antony Remmen", new DateTime(2017, 10, 29), new DateTime(2017, 12, 31), 14),
            new EmployeeTask(20, 4, "Update QA Strategy", "Olivia Peyton", new DateTime(2017, 10, 31), new DateTime(2017, 11, 2), 18),
            new EmployeeTask(21, 4, "Schedule Training Events", "Taylor Riley", new DateTime(2017, 11, 19), new DateTime(2018, 4, 7), 21),
            new EmployeeTask(22, 4, "Approve Hiring of John Jeffers", "Amelia Harper", new DateTime(2018, 1, 7), new DateTime(2018, 4, 8), 10),
            new EmployeeTask(23, 0, "Increase Average Subscription Price", "Wally Hobbs", new DateTime(2017, 8, 9), new DateTime(2017, 9, 13), 96),
            new EmployeeTask(24, 23, "Update Non-Compete Agreements", "Brad Jameson", new DateTime(2017, 8, 9), new DateTime(2017, 9, 3), 96),
            new EmployeeTask(25, 23, "Update Employee Records with New NDA", "Karen Goodson", new DateTime(2017, 8, 23), new DateTime(2018, 9, 10), 100)
        };
    }
}

Program.cs

// ...
builder.Services.AddSingleton<EmployeeTaskService>();

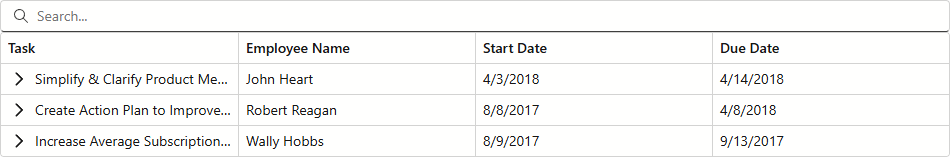

Implement External Search Box

You can use the SearchText property to implement an external search editor for the TreeList component:

Razor

@inject EmployeeTaskService EmployeeTaskService

<div>
    <DxSearchBox @bind-Text="@TreeListSearchText" aria-label="Search" />
</div>
<DxTreeList Data="TreeListData"
            KeyFieldName="Id"
            ParentKeyFieldName="ParentId"
            SearchText="@TreeListSearchText">
    <Columns>
        <DxTreeListDataColumn FieldName="Name" Caption="Task" />
        <DxTreeListDataColumn FieldName="EmployeeName" />
        <DxTreeListDataColumn FieldName="StartDate" />
        <DxTreeListDataColumn FieldName="DueDate" />
    </Columns>
</DxTreeList>

@code {
    List<EmployeeTask> TreeListData { get; set; }
    string TreeListSearchText { get; set; }

    protected override void OnInitialized() {
        TreeListData = EmployeeTaskService.GenerateData();
    }
}

EmployeeTask.cs

public class EmployeeTask {
    public int Id { get; set; }
    public int ParentId { get; set; }
    public string Name { get; set; }
    public string EmployeeName { get; set; }
    public DateTime StartDate { get; set; }
    public DateTime DueDate { get; set; }
    public int Progress { get; set; }
    public EmployeeTask() { }
    public EmployeeTask(
        int id,
        int parentId,
        string name,
        string employeeName,
        DateTime startDate,
        DateTime dueDate,
        int progress
        )
    {
        Id = id;
        ParentId = parentId;
        Name = name;
        EmployeeName = employeeName;
        StartDate = startDate;
        DueDate = dueDate;
        Progress = progress;
    }
}

EmployeeTaskService.cs

public class EmployeeTaskService {
    public List<EmployeeTask> GenerateData() {
        return new List<EmployeeTask>() {
            new EmployeeTask(1, 0, "Simplify & Clarify Product Messaging", "John Heart", new DateTime(2018, 4, 3), new DateTime(2018, 4, 14), 14),
            new EmployeeTask(2, 1, "Prepare Financial Reports", "Samantha Bright", new DateTime(2018, 4, 3), new DateTime(2018, 4, 7), 17),
            new EmployeeTask(3, 1, "Prepare Marketing Plan", "Arthur Miller", new DateTime(2018, 4, 7), new DateTime(2018, 4, 14), 11),
            new EmployeeTask(4, 0, "Create Action Plan to Improve Customer Engagement", "Robert Reagan", new DateTime(2017, 8, 8), new DateTime(2018, 4, 8), 23),
            new EmployeeTask(5, 4, "Update Personnel Files", "Greta Sims", new DateTime(2017, 8, 8), new DateTime(2017, 10, 18), 100),
            new EmployeeTask(6, 4, "Review Health Insurance Options", "Brett Wade", new DateTime(2017, 9, 27), new DateTime(2017, 11, 10), 37),
            new EmployeeTask(7, 4, "Choose Between PPO and HMO Health Plan", "Sandra Johnson", new DateTime(2017, 12, 13), new DateTime(2018, 3, 23), 17),
            new EmployeeTask(8, 4, "Update Google Adwords Strategy", "Ed Holmes", new DateTime(2017, 8, 23), new DateTime(2017, 12, 23), 45),
            new EmployeeTask(9, 4, "Create New Brochure Design", "Barb Banks", new DateTime(2018, 1, 3), new DateTime(2018, 3, 14), 17),
            new EmployeeTask(10, 4, "Obtain Price Quote for New Brochure", "Kevin Carter", new DateTime(2018, 2, 1), new DateTime(2018, 3, 15), 18),
            new EmployeeTask(11, 4, "Brochure Design Review", "Cindy Stanwick", new DateTime(2017, 8, 22), new DateTime(2017, 10, 28), 4),
            new EmployeeTask(12, 4, "Review Website Redesign Strategy", "Sammy Hill", new DateTime(2017, 9, 16), new DateTime(2018, 3, 6), 73),
            new EmployeeTask(13, 4, "Roll Out New Website", "Davey Jones", new DateTime(2017, 11, 7), new DateTime(2018, 2, 6), 9),
            new EmployeeTask(14, 4, "Update Sales/Marketing Strategy", "Victor Norris", new DateTime(2017, 12, 13), new DateTime(2018, 4, 2), 5),
            new EmployeeTask(15, 4, "Update Sales/Revenue Report", "Mary Stern", new DateTime(2017, 12, 25), new DateTime(2018, 4, 2), 4),
            new EmployeeTask(16, 4, "Direct vs Online Sales Comparison Report", "Robin Cosworth", new DateTime(2018, 1, 2), new DateTime(2018, 3, 20), 14),
            new EmployeeTask(17, 4, "Review Sales Report and Approve Modifications", "Kelly Rodriguez", new DateTime(2017, 9, 4), new DateTime(2017, 10, 30), 8),
            new EmployeeTask(18, 4, "Update R&D Strategy", "James Anderson", new DateTime(2017, 11, 13), new DateTime(2017, 12, 4), 12),
            new EmployeeTask(19, 4, "Discuss Updated R&D Strategy", "Antony Remmen", new DateTime(2017, 10, 29), new DateTime(2017, 12, 31), 14),
            new EmployeeTask(20, 4, "Update QA Strategy", "Olivia Peyton", new DateTime(2017, 10, 31), new DateTime(2017, 11, 2), 18),
            new EmployeeTask(21, 4, "Schedule Training Events", "Taylor Riley", new DateTime(2017, 11, 19), new DateTime(2018, 4, 7), 21),
            new EmployeeTask(22, 4, "Approve Hiring of John Jeffers", "Amelia Harper", new DateTime(2018, 1, 7), new DateTime(2018, 4, 8), 10),
            new EmployeeTask(23, 0, "Increase Average Subscription Price", "Wally Hobbs", new DateTime(2017, 8, 9), new DateTime(2017, 9, 13), 96),
            new EmployeeTask(24, 23, "Update Non-Compete Agreements", "Brad Jameson", new DateTime(2017, 8, 9), new DateTime(2017, 9, 3), 96),
            new EmployeeTask(25, 23, "Update Employee Records with New NDA", "Karen Goodson", new DateTime(2017, 8, 23), new DateTime(2018, 9, 10), 100)
        };
    }
}

Program.cs

// ...
builder.Services.AddSingleton<EmployeeTaskService>();
