DxTreeList.FilterMenuButtonDisplayMode Property

Specifies when the TreeList displays filter menu buttons in column headers.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

#Property Value

Type Default Description
TreeListFilterMenuButtonDisplayMode Default

An enumeration value.

Available values:

Name Description
Default

For the DxTreeList.FilterMenuButtonDisplayMode property, the buttons are always hidden.
For the DxTreeListDataColumn.FilterMenuButtonDisplayMode property, to inherit the value from the DxTreeList.FilterMenuButtonDisplayMode property.

Never

The buttons are always hidden.

Always

The buttons are always visible.

#Remarks

Set the FilterMenuButtonDisplayMode property to Always to display filter menu buttons in column headers. When a user clicks a filter menu button, the TreeList displays a dropdown with all unique column values. Users can select and deselect these values to filter TreeList data.

To specify button visibility for a particular data column, use the DxTreeListDataColumn.FilterMenuButtonDisplayMode property.

Run Demo: Column Filter Menu

Note

The TreeList cannot create filter item lists for columns associated with certain data types (for instance, arrays and images). If you do not implement a filter menu template for such a column, the column filter menu displays the following text instead of filter items: “No filters are available for this column”.

For more information about column filter menus, refer to the following help topic: Column Filter Menu in Blazor TreeList.

The following example adds a filter menu button to all columns, except Task:

Razor
<DxTreeList Data="Data"
            KeyFieldName="Id"
            ParentKeyFieldName="ParentId"
            FilterMenuButtonDisplayMode="TreeListFilterMenuButtonDisplayMode.Always"
            CssClass="max-h-480">
    <Columns>
        <DxTreeListDataColumn FieldName="Name"
                              Caption="Task"
                              FilterMenuButtonDisplayMode="TreeListFilterMenuButtonDisplayMode.Never" />
        <DxTreeListDataColumn FieldName="EmployeeName" Caption="Assigned To" TextAlignment="TreeListTextAlignment.Left" />
        <DxTreeListDataColumn FieldName="StartDate" Width="150px" />
        <DxTreeListDataColumn FieldName="DueDate" Width="150px" />
    </Columns>
</DxTreeList>

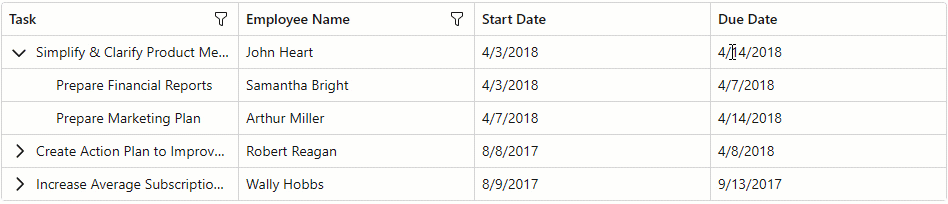

Blazor Treelist - Filter Menu Buttons
