DxBarGauge.BarSpacing Property

Specifies the distance between bars.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
[DefaultValue(4)]
[Parameter]
public double BarSpacing { get; set; }

#Property Value

Type Default Description
Double 4

The distance between bars in pixels.

#Remarks

Use the BarSpacing property to specify the distance between bars. The higher the property value, the narrower every bar is.

#Example

The following code snippet removes gaps between bars:

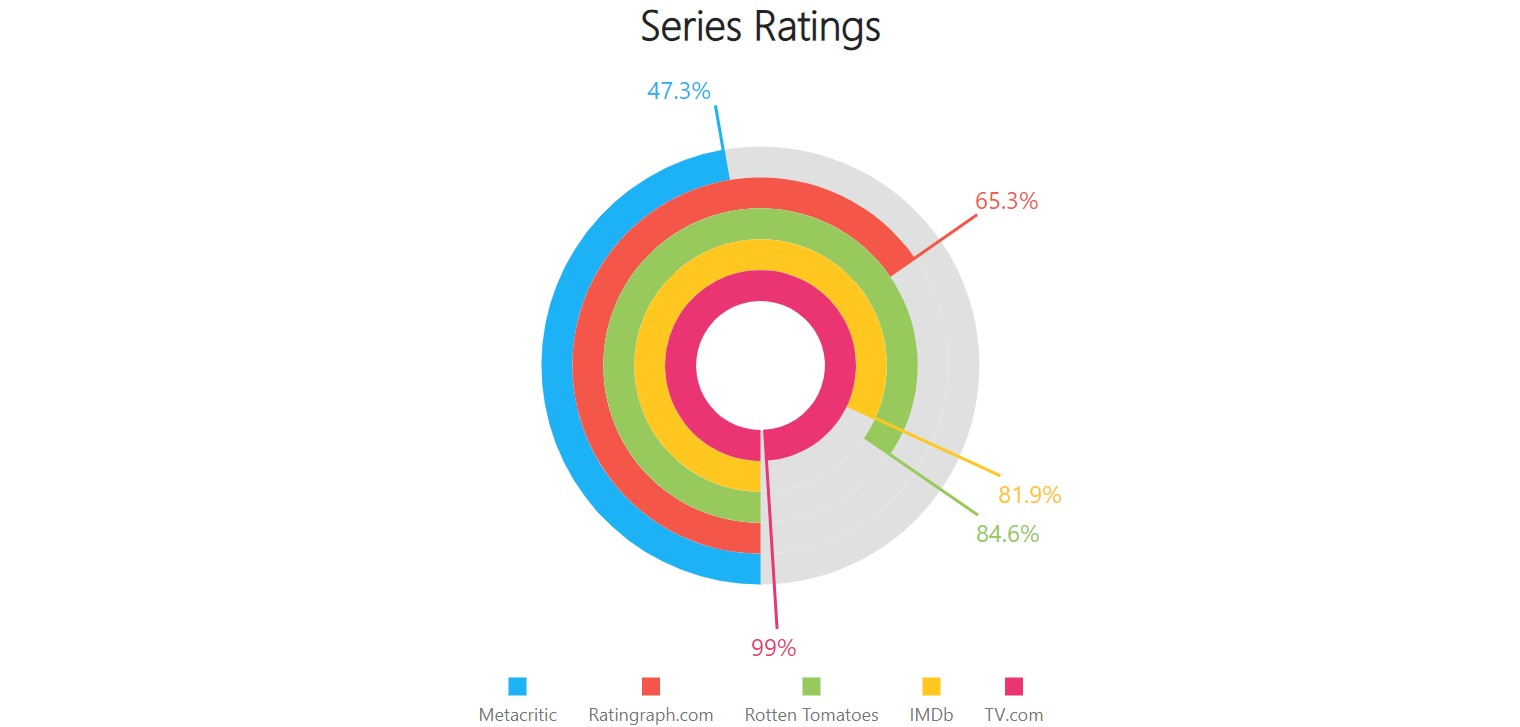

Bar Gauge - Bar Spacing

Razor
<DxBarGauge Width="100%"
            Height="500px"
            StartValue="0"
            EndValue="100"
            BarSpacing="0"
            Values="@Values">
    @* ... *@
</DxBarGauge>

@code {
    double[] Values = new double[] { 47.27, 65.32, 84.59, 81.86, 99 };
    // ...
}
