DxBarGauge.LabelOverlap Property

Specifies how the component displays overlapping labels.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
[DefaultValue(LabelOverlap.Hide)]
[Parameter]
public LabelOverlap LabelOverlap { get; set; }

#Property Value

Type Default Description
LabelOverlap Hide

An enumeration value.

Available values:

Name Description
ShowAll

Shows all labels.

Hide

Hides overlapping labels except the label that points to the smallest value.

Shift

Shifts overlapping labels.

#Remarks

Add a DxBarGaugeLabelSettings object to bar gauge markup to show and configure bar labels. These settings apply to all bar labels in the component.

Use the LabelOverlap property to specify how the Bar Gauge resolves label overlap.

The following code snippet uses a drop-down menu to choose how to display bar labels in DxBarGauge:

Razor
<DxBarGauge Width="100%"
            Height="500px"
            StartValue="-5"
            EndValue="5"
            BaseValue="0"
            LabelOverlap="@CurrentOverlapMode"
            Values="@Values">
    <DxBarGaugeLabelSettings>
        <DxTextFormatSettings LdmlString="@LabelFormat" />
    </DxBarGaugeLabelSettings>
    @* ... *@
</DxBarGauge>

@code {
    string LabelFormat = "##.## mm;-##.## mm";
    LabelOverlap CurrentOverlapMode = LabelOverlap.Hide;
    double[] Values = new double[] { -2.13, 1.48, -3.09, 3.52, 4.9, 1.5 };
    // ...
}

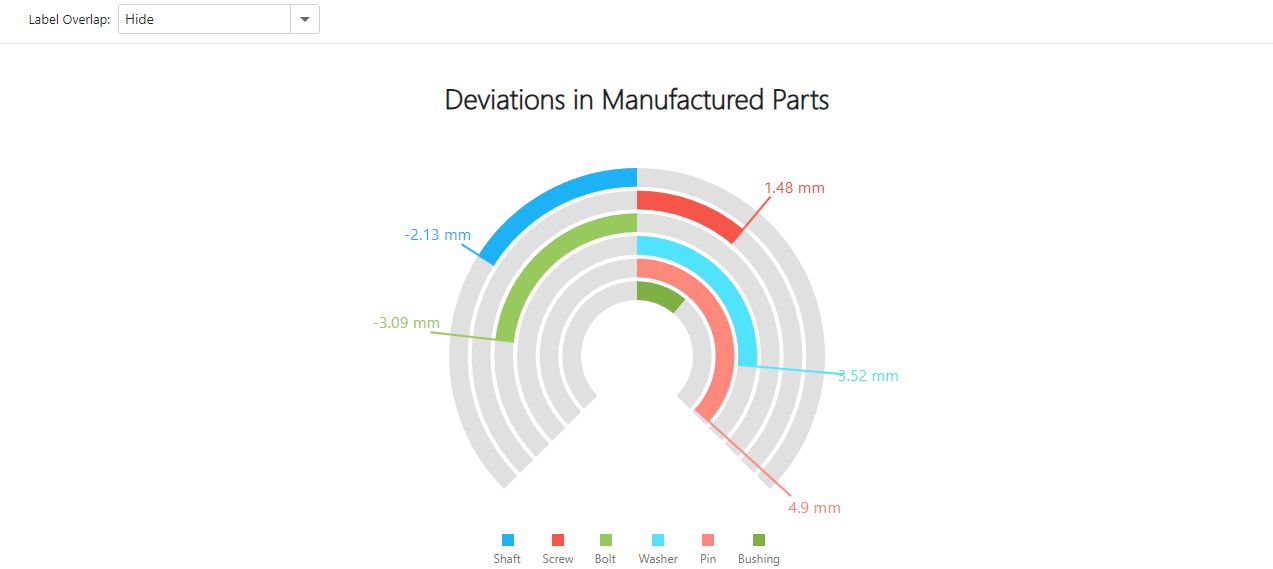

Bar Gauge - Label Overlap
