DxBarGauge.InnerRadius Property

Specifies the relative radius of the innermost circular bar.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
[DefaultValue(0.3)]
[Parameter]
public double InnerRadius { get; set; }

#Property Value

Type Default Description
Double 0.3

The ratio between the radiuses of inner- and outermost circular bars.

#Remarks

The InnerRadius property accepts values from 0 to 1.

#Example

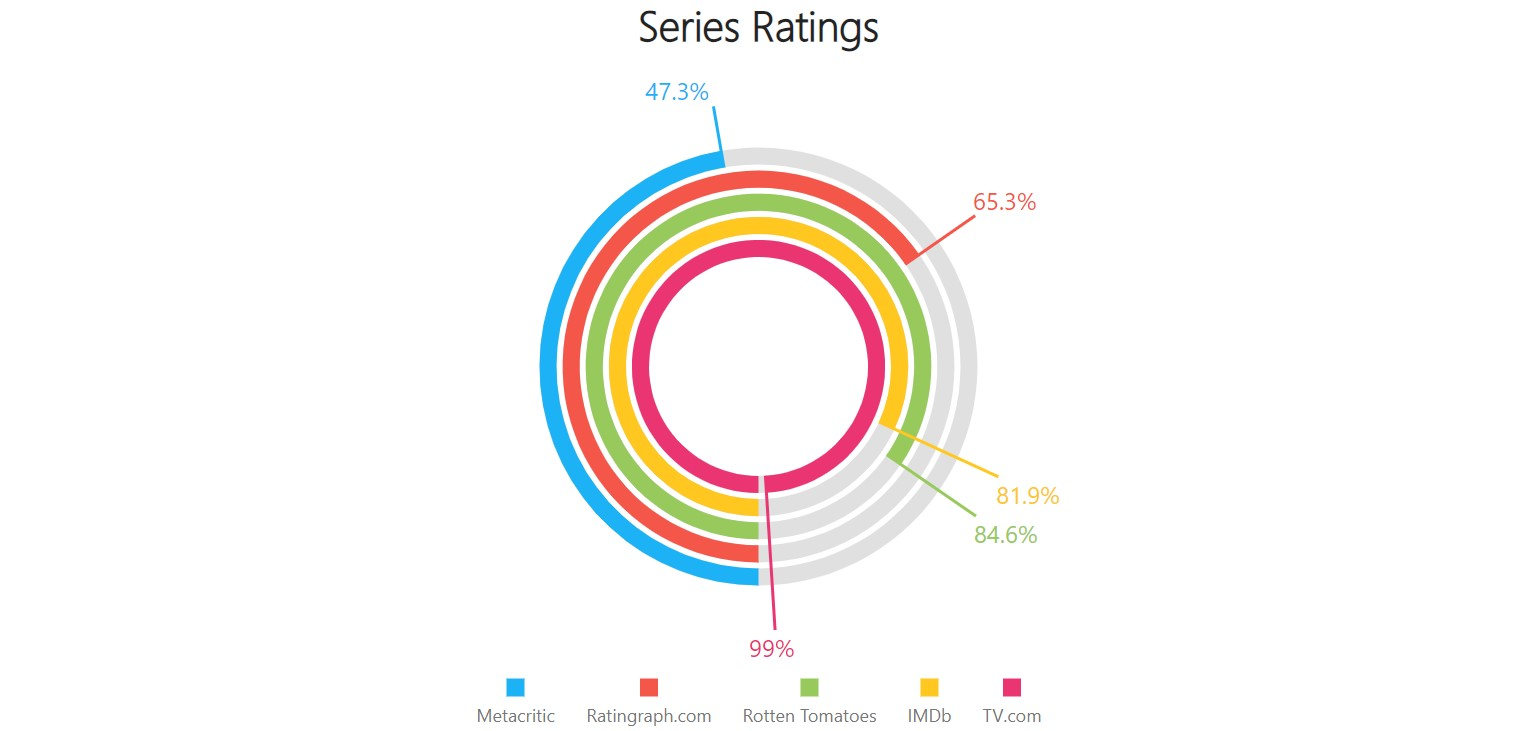

The following code snippet sets the innermost bar’s radius to half of the outermost bar’s radius:

Bar Gauge - Inner Radius

Razor
<DxBarGauge Width="100%"
            Height="500px"
            StartValue="0"
            EndValue="100"
            InnerRadius="0.5"
            Values="@Values">
    @* ... *@
</DxBarGauge>

@code {
    double[] Values = new double[] { 47.27, 65.32, 84.59, 81.86, 99 };
    // ...
}
See Also
