TreeListXlExportOptions.ExportUnboundExpressionAsFunction Property

Specifies whether the TreeList exports unbound column expressions as functions or result values.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.Grid.v26.1.dll

Declaration

[DefaultValue(false)]
public bool ExportUnboundExpressionAsFunction { get; set; }

Property Value

Type	Default	Description
Boolean	false	true, to export unbound expressions as functions; false, to export unbound expressions as result values.

Remarks

If unbound column values are calculated using the UnboundExpression property, the TreeList component can export column data as results (default mode) or as formulas. To export unbound values as formulas, set the ExportUnboundExpressionAsFunction option to true. Note the following limitations:

• If an expression references other columns, you must include these columns in the exported data. Otherwise, unbound expressions are exported as result values regardless of the ExportUnboundExpressionAsFunction property value.
• Some functions used in expressions cannot be converted to formulas during export operations. Refer to the following topic for additional information: Criteria Language Syntax.

Example

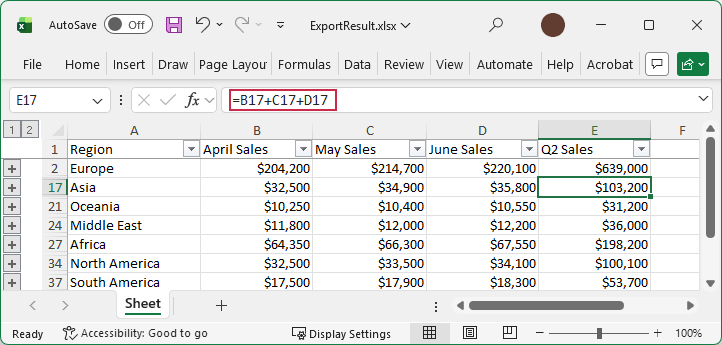

The following code snippet exports Q2 Sales column values as formulas:

Razor

@inject ISalesByRegionDataProvider SalesByRegionDataProvider

<DxButton Text="Export to XLSX" Click="ExportXlsx_Click" />
<DxTreeList Data="TreeListData"
            KeyFieldName="ID"
            ParentKeyFieldName="RegionID">
    <Columns>
        <DxTreeListDataColumn FieldName="Region" />
        <DxTreeListDataColumn FieldName="AprilSales" DisplayFormat="c0" />
        <DxTreeListDataColumn FieldName="MaySales" DisplayFormat="c0" />
        <DxTreeListDataColumn FieldName="JuneSales" DisplayFormat="c0" />
        <DxTreeListDataColumn FieldName="Q2Sales"
                              Caption="Q2 Sales"
                              DisplayFormat="c0"
                              UnboundType="TreeListUnboundColumnType.Decimal"
                              UnboundExpression="[AprilSales] + [MaySales] + [JuneSales]" />
    </Columns>
</DxTreeList>

@code {
    object TreeListData { get; set; }

    protected override void OnInitialized() {
        TreeListData = SalesByRegionDataProvider.GenerateData();
    }

    async Task ExportXlsx_Click() {
        await TreeList.ExportToXlsxAsync("ExportResult", new TreeListXlExportOptions() {
            ExportUnboundExpressionAsFunction = true,
        });
    }
}

SalesByRegion.cs

namespace BlazorDemo.Data {
    public class SalesByRegion {
        public SalesByRegion(int id, int regionId, string region, decimal[] monthlySales, decimal[] monthlySalesPrev, double marketShare) {
            ID = id;
            RegionID = regionId;
            Region = region;
            MonthlySales = monthlySales;
            MonthlySalesPrev = monthlySalesPrev;
            MarketShare = marketShare;
        }
        public int ID { get; set; }
        public int RegionID { get; set; }
        public string Region { get; set; }
        public decimal[] MonthlySales { get; set; }
        public decimal[] MonthlySalesPrev { get; set; }
        public double MarketShare { get; set; }

        decimal Calc(decimal current, decimal previous) {
            return (current - previous) / current;
        }

        public decimal JanuarySales => MonthlySales[0];
        public decimal FebruarySales => MonthlySales[1];
        public decimal MarchSales => MonthlySales[2];
        public decimal AprilSales => MonthlySales[3];
        public decimal MaySales => MonthlySales[4];
        public decimal JuneSales => MonthlySales[5];
        public decimal JulySales => MonthlySales[6];
        public decimal AugustSales => MonthlySales[7];
        public decimal SeptemberSales => MonthlySales[8];
        public decimal OctoberSales => MonthlySales[9];
        public decimal NovemberSales => MonthlySales[10];
        public decimal DecemberSales => MonthlySales[11];

        public decimal JanuaryChange => Calc(JanuarySales, MonthlySalesPrev[0]);
        public decimal FebruaryChange => Calc(FebruarySales, MonthlySalesPrev[1]);
        public decimal MarchChange => Calc(MarchSales, MonthlySalesPrev[2]);
        public decimal AprilChange => Calc(AprilSales, MonthlySalesPrev[3]);
        public decimal MayChange => Calc(MaySales, MonthlySalesPrev[4]);
        public decimal JuneChange => Calc(JuneSales, MonthlySalesPrev[5]);
        public decimal JulyChange => Calc(JulySales, MonthlySalesPrev[6]);
        public decimal AugustChange => Calc(AugustSales, MonthlySalesPrev[7]);
        public decimal SeptemberChange => Calc(SeptemberSales, MonthlySalesPrev[8]);
        public decimal OctoberChange => Calc(OctoberSales, MonthlySalesPrev[9]);
        public decimal NovemberChange => Calc(NovemberSales, MonthlySalesPrev[10]);
        public decimal DecemberChange => Calc(DecemberSales, MonthlySalesPrev[11]);
    }
}

ISalesByRegionDataProvider.cs

using System.Collections.Generic;
using BlazorDemo.Data;

namespace BlazorDemo.DataProviders {
    public interface ISalesByRegionDataProvider {
        public List<SalesByRegion> GenerateData();
    }
}

SalesByRegionDataProvider.cs

using System.Collections.Generic;
using BlazorDemo.Data;

namespace BlazorDemo.DataProviders.Implementation {
    public class SalesByRegionDataProvider : ISalesByRegionDataProvider {
        public List<SalesByRegion> GenerateData() {
            return [
                new SalesByRegion(1, 0, "Europe",
                    [187200, 194400, 206400, 204200, 214700, 220100, 226600, 231500, 234300, 237300, 241000, 244700],
                    [178400, 185600, 195600, 195400, 203900, 209200, 215700, 220600, 223500, 226600, 230300, 234000], 0.7),

                new SalesByRegion(2, 1, "Austria",
                    [19000, 20000, 22000, 21000, 24000, 25000, 27000, 28000, 29000, 30000, 31000, 32000],
                    [17000, 18000, 19000, 19500, 21000, 22000, 24000, 25000, 26000, 27000, 28000, 29000], 0.92),

                new SalesByRegion(3, 1, "Belgium",
                    [10500, 10000, 9500, 10000, 10200, 10000, 9800, 9500, 8800, 9200, 9000, 8800],
                    [11800, 11500, 11400, 11700, 11600, 11400, 11200, 11000, 11000, 10800, 10600, 10400], 0.16),

                new SalesByRegion(4, 1, "Denmark",
                    [18000, 18500, 19000, 19500, 20000, 20500, 21000, 21500, 21000, 20500, 20000, 19500],
                    [17000, 17500, 18000, 18500, 19000, 19500, 20000, 20500, 20000, 19500, 19000, 18500], 0.56),

                new SalesByRegion(5, 1, "France",
                    [20000, 21000, 18000, 22000, 24000, 25000, 26000, 27000, 23000, 28000, 28500, 29000],
                    [19000, 20000, 21000, 20500, 22000, 23000, 24000, 25000, 25500, 26000, 26500, 27000], 0.51),

                new SalesByRegion(6, 1, "Germany",
                    [28000, 29000, 31000, 30500, 32000, 33000, 34000, 35000, 35500, 36000, 37000, 38000],
                    [26000, 27000, 29000, 28500, 30000, 31000, 32000, 33000, 33500, 34000, 35000, 36000], 0.93),

                new SalesByRegion(7, 1, "Ireland",
                    [8500, 9000, 9500, 9800, 10200, 10500, 10800, 11000, 11200, 11400, 11600, 11800],
                    [8200, 8700, 9200, 9500, 9900, 10200, 10500, 10700, 10900, 11100, 11300, 11500], 0.34),

                new SalesByRegion(8, 1, "Italy",
                    [15000, 15500, 16500, 16200, 17000, 17500, 18000, 18500, 19000, 19500, 20000, 20500],
                    [14500, 15000, 16000, 15700, 16500, 17000, 17500, 18000, 18500, 19000, 19500, 20000], 0.22),

                new SalesByRegion(9, 1, "Netherlands",
                    [8000, 8300, 8800, 8600, 9000, 9200, 9400, 9500, 9600, 9700, 9800, 9900],
                    [7800, 8100, 8600, 8400, 8800, 9000, 9200, 9300, 9400, 9500, 9600, 9700], 0.85),

                new SalesByRegion(10, 1, "Poland",
                    [7500, 7800, 8500, 8200, 8800, 9000, 9300, 9500, 9700, 9800, 10000, 10200],
                    [7200, 7500, 8200, 7900, 8500, 8700, 9000, 9200, 9400, 9500, 9700, 9900], 0.52),

                new SalesByRegion(11, 1, "Romania",
                    [4200, 4400, 4600, 4700, 4900, 5000, 5100, 5200, 5300, 5400, 5500, 5600],
                    [4000, 4200, 4400, 4500, 4700, 4800, 4900, 5000, 5100, 5200, 5300, 5400], 0.3),

                new SalesByRegion(12, 1, "Spain",
                    [10500, 10800, 11000, 11200, 11000, 10800, 10500, 10200, 10000, 9800, 9600, 9400],
                    [10500, 10700, 9800, 11700, 11500, 11300, 11000, 10700, 9200, 10300, 10100, 9900], 0.82),

                new SalesByRegion(13, 1, "Switzerland",
                    [8500, 8800, 9000, 9200, 9500, 9700, 10000, 10200, 10500, 10700, 11000, 11200],
                    [8700, 9000, 8300, 9400, 9700, 9900, 10200, 10400, 9700, 10900, 11200, 11400], 0.14),

                new SalesByRegion(14, 1, "United Kingdom",
                    [13000, 13300, 14000, 13800, 14300, 14600, 15000, 15200, 15500, 15800, 16000, 16300],
                    [12500, 12800, 13500, 13300, 13800, 14100, 14500, 14700, 15000, 15300, 15500, 15800], 0.91),

                new SalesByRegion(15, 1, "Ukraine",
                    [16000, 16500, 17500, 17000, 18000, 18500, 19000, 19500, 20000, 20500, 21000, 21500],
                    [15000, 15500, 16500, 16000, 17000, 17500, 18000, 18500, 19000, 19500, 20000, 20500], 0.6),

                new SalesByRegion(16, 0, "Asia",
                    [30000, 31700, 33300, 32500, 34900, 35800, 37500, 38400, 39300, 40200, 41000, 41800],
                    [27800, 29500, 31100, 30300, 32700, 33600, 35300, 36200, 37100, 38000, 38800, 39600], 0.52),

                new SalesByRegion(17, 16, "China",
                    [18000, 19000, 20000, 19500, 21000, 21500, 22500, 23000, 23500, 24000, 24500, 25000],
                    [16500, 17500, 18500, 18000, 19500, 20000, 21000, 21500, 22000, 22500, 23000, 23500], 0.82),

                new SalesByRegion(18, 16, "India",
                    [4000, 4200, 4500, 4400, 4700, 4800, 5000, 5200, 5300, 5400, 5500, 5600],
                    [3800, 4000, 4300, 4200, 4500, 4600, 4800, 5000, 5100, 5200, 5300, 5400], 0.44),

                new SalesByRegion(19, 16, "Japan",
                    [8000, 8500, 8800, 8600, 9200, 9500, 10000, 10200, 10500, 10800, 11000, 11200],
                    [7500, 8000, 8300, 8100, 8700, 9000, 9500, 9700, 10000, 10300, 10500, 10700], 0.7),

                new SalesByRegion(20, 0, "Oceania",
                    [9500, 9750, 10000, 10250, 10400, 10550, 10700, 10850, 10900, 10950, 11000, 11050],
                    [9200, 9450, 9700, 9950, 10100, 10250, 10400, 10550, 10600, 10650, 10700, 10750], 0.8),

                new SalesByRegion(21, 20, "Australia",
                    [7600, 7800, 8000, 8200, 8400, 8600, 8800, 9000, 9100, 9200, 9300, 9400],
                    [7300, 7500, 7700, 7900, 8100, 8300, 8500, 8700, 8800, 8900, 9000, 9100], 0.75),

                new SalesByRegion(22, 20, "New Zealand",
                    [1900, 1950, 2000, 2050, 2000, 1950, 1900, 1850, 1800, 1750, 1700, 1650],
                    [1900, 1950, 2000, 2050, 2000, 1950, 1900, 1850, 1800, 1750, 1700, 1650], 0.4),

                new SalesByRegion(23, 0, "Middle East",
                    [11000, 11300, 11600, 11800, 12000, 12200, 12500, 12700, 12900, 13000, 13200, 13400],
                    [10700, 11000, 11300, 11500, 11700, 11900, 12200, 12400, 12600, 12700, 12900, 13100], 0.58),

                new SalesByRegion(24, 23, "Saudi Arabia",
                    [4500, 4600, 4800, 4900, 5000, 5100, 5200, 5300, 5400, 5500, 5600, 5700],
                    [4300, 4400, 4600, 4700, 4800, 4900, 5000, 5100, 5200, 5300, 5400, 5500], 0.65),

                new SalesByRegion(25, 23, "United Arab Emirates",
                    [6500, 6700, 6800, 6900, 7000, 7100, 7300, 7400, 7500, 7500, 7600, 7700],
                    [6400, 6600, 6700, 6800, 6900, 7000, 7200, 7300, 7400, 7400, 7500, 7600], 0.35),

                new SalesByRegion(26, 0, "Africa",
                    [60300, 62200, 63900, 64350, 66300, 67550, 69200, 70450, 71800, 72850, 73900, 74950],
                    [58450, 60350, 62050, 62500, 64450, 65700, 67350, 68600, 69950, 71000, 72050, 73100], 0.41),

                new SalesByRegion(27, 26, "Egypt",
                    [7500, 7700, 7900, 8000, 8200, 8300, 8500, 8600, 8700, 8800, 8900, 9000],
                    [7300, 7500, 7700, 7800, 8000, 8100, 8300, 8400, 8500, 8600, 8700, 8800], 0.52),

                new SalesByRegion(28, 26, "Nigeria",
                    [14500, 15000, 15500, 15200, 16000, 16500, 17000, 17500, 18000, 18300, 18500, 18800],
                    [14000, 14500, 15000, 14700, 15500, 16000, 16500, 17000, 17500, 17800, 18000, 18300], 0.3),

                new SalesByRegion(29, 26, "South Africa",
                    [16000, 16500, 17000, 17200, 17500, 17700, 18000, 18200, 18500, 18700, 19000, 19200],
                    [15500, 16000, 16500, 16700, 17000, 17200, 17500, 17700, 18000, 18200, 18500, 18700], 0.62),

                new SalesByRegion(30, 26, "Kenya",
                    [10500, 10800, 11000, 11200, 11500, 11700, 12000, 12200, 12400, 12600, 12800, 13000],
                    [10200, 10500, 10700, 10900, 11200, 11400, 11700, 11900, 12100, 12300, 12500, 12700], 0.55),

                new SalesByRegion(31, 26, "Morocco",
                    [10000, 10300, 10500, 10700, 11000, 11200, 11500, 11700, 11900, 12100, 12300, 12500],
                    [9700, 10000, 10200, 10400, 10700, 10900, 11200, 11400, 11600, 11800, 12000, 12200], 0.48),

                new SalesByRegion(32, 26, "Ghana",
                    [1800, 1900, 2000, 2050, 2100, 2150, 2200, 2250, 2300, 2350, 2400, 2450],
                    [1750, 1850, 1950, 2000, 2050, 2100, 2150, 2200, 2250, 2300, 2350, 2400], 0.38),

                new SalesByRegion(33, 0, "North America",
                    [30000, 31000, 32000, 32500, 33500, 34100, 35100, 35500, 36000, 36500, 37000, 37500],
                    [28500, 29500, 30500, 31000, 32000, 32600, 33600, 34000, 34500, 35000, 35500, 36000], 0.84),

                new SalesByRegion(34, 33, "Canada",
                    [11000, 11300, 11700, 12000, 12300, 12600, 12900, 13100, 13400, 13700, 14000, 14300],
                    [10500, 10800, 11200, 11500, 11800, 12100, 12400, 12600, 12900, 13200, 13500, 13800], 0.64),

                new SalesByRegion(35, 33, "USA",
                    [19000, 19700, 20300, 20500, 21200, 21500, 22200, 22400, 22600, 22800, 23000, 23200],
                    [18000, 18700, 19300, 19500, 20200, 20500, 21200, 21400, 21600, 21800, 22000, 22200], 0.87),

                new SalesByRegion(36, 0, "South America",
                    [16000, 16600, 17100, 17500, 17900, 18300, 18700, 19100, 19400, 19700, 20000, 20300],
                    [15200, 15800, 16300, 16700, 17100, 17500, 17900, 18300, 18600, 18900, 19200, 19500], 0.32),

                new SalesByRegion(37, 36, "Argentina",
                    [5500, 5700, 5900, 6000, 6200, 6300, 6500, 6600, 6700, 6800, 6900, 7000],
                    [5200, 5400, 5600, 5700, 5900, 6000, 6200, 6300, 6400, 6500, 6600, 6700], 0.88),

                new SalesByRegion(38, 36, "Brazil",
                    [4200, 4400, 4500, 4600, 4700, 4800, 4900, 5000, 5100, 5200, 5300, 5400],
                    [4000, 4200, 4300, 4400, 4500, 4600, 4700, 4800, 4900, 5000, 5100, 5200], 0.1),

                new SalesByRegion(39, 36, "Chile",
                    [6300, 6500, 6700, 6900, 7000, 7200, 7300, 7500, 7600, 7700, 7800, 7900],
                    [6000, 6200, 6400, 6600, 6700, 6900, 7000, 7200, 7300, 7400, 7500, 7600], 0.7)
            ];
        }
    }
}
