TreeListXlExportOptions.SelectedRowsExportMode Property

In ExportSelectedRowsOnly mode, specifies whether to export parents of selected rows.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.2.dll

Declaration

[DefaultValue(TreeListSelectedRowsExportMode.Flat)]
public TreeListSelectedRowsExportMode SelectedRowsExportMode { get; set; }

Property Value

Type	Default	Description
TreeListSelectedRowsExportMode	Flat	An enumeration value.

Available values:

Name	Description
Flat	The TreeList exports selected rows as a flat list.
KeepHierarchy	The TreeList exports selected rows and parents (even if parent rows are unselected).

Remarks

Note

This property is not in effect if ExportSelectedRowsOnly is set to false (default).

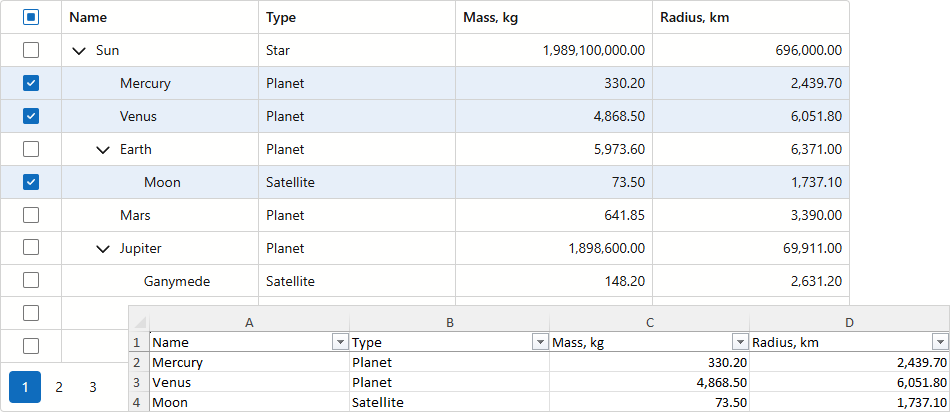

When exporting TreeList data to an Excel format, you can activate the ExportSelectedRowsOnly option. If active, the TreeList component ignores hierarchy and exports selected rows as flat data.

Set SelectedRowsExportMode to KeepHierarchy to export selected rows and their parents:

Razor

@rendermode InteractiveServer
@using DevExpress.Drawing
@inject SpaceObjectDataProvider SpaceObjectDataProvider

<DxTreeList @ref="TreeList" Data="TreeListData" ChildrenFieldName="Satellites">
    <Columns>
        <DxTreeListSelectionColumn Width="60px" AllowSelectAll="true" />
        <DxTreeListDataColumn FieldName="Name" />
        <DxTreeListDataColumn FieldName="TypeOfObject" Caption="Type" />
        <DxTreeListDataColumn FieldName="Mass10pow21kg" Caption="Mass, kg" DisplayFormat="N2" />
        <DxTreeListDataColumn FieldName="MeanRadiusInKM" Caption="Radius, km" DisplayFormat="N2"/>
    </Columns>
    <ToolbarTemplate>
        <DxToolbar>
            <DxToolbarItem Text="Export to XLSX" Click="ExportXlsx_Click" BeginGroup="true" />
        </DxToolbar>
    </ToolbarTemplate>
</DxTreeList>

@code {
    ITreeList TreeList { get; set; }
    object TreeListData { get; set; }

    protected override async Task OnInitializedAsync() {
        TreeListData = SpaceObjectDataProvider.GenerateData();
    }
    async Task ExportXlsx_Click() {
        await TreeList.ExportToXlsxAsync("ExportResult", new TreeListXlExportOptions() {
            ExportSelectedRowsOnly = true,
            SelectedRowsExportMode = TreeListSelectedRowsExportMode.KeepHierarchy
        });
    }
}

SpaceObject

using System.Collections.Generic;

public class SpaceObject {
    public string Name { get; set; }
    public double MeanRadiusInKM { get; set; }
    public double Volume10pow9KM3 { get; set; }
    public double Mass10pow21kg { get; set; }
    public double Density { get; set; }
    public double SurfaceGravity { get; set; }
    public string TypeOfObject { get; set; }
    public List<SpaceObject> Satellites { get; set; }
    public SpaceObject(
        string name,
        double meanRadiusInKM,
        double volume10pow9KM3,
        double mass10pow21kg,
        double density,
        double surfaceGravity,
        string typeOfObject,
        List<SpaceObject> satellites = null
    ) {
        Name = name;
        MeanRadiusInKM = meanRadiusInKM;
        Volume10pow9KM3 = volume10pow9KM3;
        Mass10pow21kg = mass10pow21kg;
        Density = density;
        SurfaceGravity = surfaceGravity;
        TypeOfObject = typeOfObject;
        Satellites = satellites ?? new List<SpaceObject>();
    }
}

SpaceObjectDataProvider

public class SpaceObjectDataProvider {
    public List<SpaceObject> GenerateData() {
        return new List<SpaceObject>() {
            new SpaceObject("Sun", 696000, 1412000000, 1989100000, 1.409, 274.0, "Star", new List<SpaceObject>() {
                new SpaceObject("Mercury", 2439.7, 60.83, 330.2, 5.43, 3.7, "Planet"),
                new SpaceObject("Venus", 6051.8, 928.43, 4868.5, 5.24, 8.872, "Planet"),
                new SpaceObject("Earth", 6371.0, 1083.21, 5973.6, 5.515, 9.78033, "Planet", new List<SpaceObject> () {
                    new SpaceObject("Moon", 1737.1, 21.958, 73.5, 3.3464, 1.625, "Satellite")
                }),
                new SpaceObject("Mars", 3390.0, 163.18, 641.85, 3.94, 3.7, "Planet"),
                new SpaceObject("Jupiter", 69911, 1431280, 1898600, 1.33, 24.79, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Ganymede", 2631.2, 76.30, 148.2, 1.936, 1.428, "Satellite"),
                    new SpaceObject("Callisto", 2410.3, 58.65, 107.6, 1.83, 1.23603, "Satellite"),
                    new SpaceObject("Io", 1821.5, 25.32, 89.3, 3.528, 1.797, "Satellite"),
                    new SpaceObject("Europa", 1561, 15.93, 48, 3.01, 1.316, "Satellite"),
                }),
                new SpaceObject("Saturn", 58232, 827130, 568460, 0.70, 10.445, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Titan", 2576, 71.52, 134.5, 1.88, 1.354, "Satellite"),
                    new SpaceObject("Rhea", 764.4, 1.87, 2.3166, 1.23, 0.26, "Satellite"),
                    new SpaceObject("Iapetus", 736, 1.55, 1.9739, 1.08, 0.223, "Satellite"),
                    new SpaceObject("Dione", 561.6, 0.73, 1.096, 1.48, 0.232, "Satellite"),
                    new SpaceObject("Tethys", 533, 0.624, 0.6173, 1.15, 0.145, "Satellite"),
                    new SpaceObject("Enceladus", 252.1, 0.067, 0.108, 1.61, 0.111, "Satellite"),
                    new SpaceObject("Mimas", 198.3, 0.033, 0.03749, 1.15, 0.06363, "Satellite")
                }),
                new SpaceObject("Uranus", 25362, 68340, 86832, 1.30, 8.87, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Titania", 788.9, 2.06, 3.526, 1.72, 0.378, "Satellite"),
                    new SpaceObject("Oberon", 761.4, 1.85, 3.014, 1.63, 0.347, "Satellite"),
                    new SpaceObject("Umbriel", 584.7, 0.84, 1.2, 1.4, 0.234, "Satellite"),
                    new SpaceObject("Ariel", 578.9, 0.81, 1.35, 1.67, 0.269, "Satellite"),
                    new SpaceObject("Miranda", 235.8, 0.055, 0.0659, 1.20, 0.07910375, "Satellite"),
                }),
                new SpaceObject("Neptune", 24622, 62540, 102430, 1.76, 11.15, "Planet", new List<SpaceObject>() {
                    new SpaceObject("Triton", 1353.4, 10.38, 21.5, 2.061, 0.782, "Satellite"),
                    new SpaceObject("Proteus", 210, 0.038, 0.050, 1.3, 0.0666, "Satellite"),
                }),
                new SpaceObject("Eris", 1170, 7, 16.7, 2.25, 0.662, "Dwarf planet"),
                new SpaceObject("Pluto", 1153, 7.15, 13.105, 2.0, 0.61, "Dwarf planet"),
                new SpaceObject("Makemake", 710, 1.8, 3, 2.0, 0.4,  "Dwarf planet"),
                new SpaceObject("Haumea", 575, 1.3, 4.006, 3, 0.44, "Dwarf planet"),
                new SpaceObject("Ceres", 475, 0.437, 0.95, 2.08, 0.27, "Dwarf planet"),
                new SpaceObject("Pallas", 266, 0.078, 0.211, 2.8, 0.2, "Asteroid"),
                new SpaceObject("Vesta", 264.6, 0.078, 0.262, 3.42, 0.251, "Asteroid")
            })
        };
    }
}

Program.cs

// ...
builder.Services.AddSingleton<SpaceObjectDataProvider>();

Read Tutorial: Export to XLS/XLSX Run Demo: Export Data
