DxGrid.ShowGroupedColumns Property

Specifies whether to display grouped columns with other columns in the grid’s data area.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v23.2.dll

NuGet Package: DevExpress.Blazor

Declaration

[DefaultValue(false)]
[Parameter]
public bool ShowGroupedColumns { get; set; }

Property Value

Type	Default	Description
Boolean	false	true to display grouped columns in the data area; otherwise, false.

Remarks

When grid data is grouped, group rows display the values of grouped columns and the corresponding columns are hidden from the grid’s data area. This allows you to avoid displaying superfluous information.

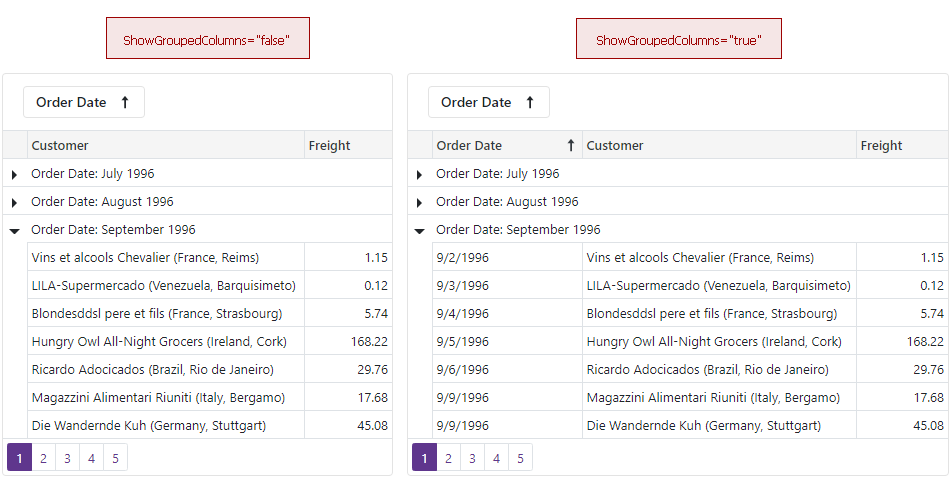

To make grouped columns visible in the data area, set the ShowGroupedColumns property to true.

Razor

@using Microsoft.EntityFrameworkCore
@inject IDbContextFactory<NorthwindContext> NorthwindContextFactory
@implements IDisposable

<DxGrid Data="GridDataSource"
        ShowGroupedColumns="true"
        CustomizeCellDisplayText="OnCustomizeCellDisplayText">
    <Columns>
        <DxGridDataColumn FieldName="OrderDate"
                      DisplayFormat="d"
                      GroupIndex="0"
                      GroupInterval="GridColumnGroupInterval.DateMonth" />
        <DxGridDataColumn FieldName="Customer"
                      SortMode="GridColumnSortMode.DisplayText"
                      GroupInterval="GridColumnGroupInterval.DisplayText" />
        <DxGridDataColumn FieldName="Freight"
                      DisplayFormat="n2" />
    </Columns>
</DxGrid>

@code {
    object GridDataSource { get; set; }
    NorthwindContext Northwind { get; set; }

    protected override void OnInitialized() {
        Northwind = NorthwindContextFactory.CreateDbContext();
        GridDataSource = Northwind.Orders
            .Include(i => i.Customer)
            .Include(i => i.OrderDetails)
            .Include(i => i.ShipViaNavigation)
            .ToList();
    }

    void OnCustomizeCellDisplayText(GridCustomizeCellDisplayTextEventArgs e) {
        if (e.FieldName == "Customer") {
            var customer = (Customer)e.Value;
            e.DisplayText = $"{customer.CompanyName} ({customer.Country}, {customer.City})";
        }
    }

    public void Dispose() {
        Northwind?.Dispose();
    }
}

NorthwindContext.cs

using Microsoft.EntityFrameworkCore;
#nullable disable

namespace Grid.Northwind {
    public partial class NorthwindContext : DbContext {

        public NorthwindContext(DbContextOptions<NorthwindContext> options)
            : base(options) {
        }

        public virtual DbSet<Category> Categories { get; set; }
        public virtual DbSet<Customer> Customers { get; set; }
        public virtual DbSet<Invoice> Invoices { get; set; }
        public virtual DbSet<Order> Orders { get; set; }
        public virtual DbSet<OrderDetail> OrderDetails { get; set; }
        public virtual DbSet<Product> Products { get; set; }
        public virtual DbSet<Shipper> Shippers { get; set; }
        public virtual DbSet<Supplier> Suppliers { get; set; }
        public virtual DbSet<Employee> Employees { get; set; }

        protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder) {
            if(!optionsBuilder.IsConfigured) {
                optionsBuilder.UseSqlServer("Server=.\\sqlexpress;Database=Northwind;Integrated Security=true");
            }
        }

        protected override void OnModelCreating(ModelBuilder modelBuilder) {
            modelBuilder.HasAnnotation("Relational:Collation", "SQL_Latin1_General_CP1_CI_AS");
            modelBuilder.Entity<Category>(entity => {
                entity.HasIndex(e => e.CategoryName, "CategoryName");
                entity.Property(e => e.CategoryId).HasColumnName("CategoryID");
                entity.Property(e => e.CategoryName)
                    .IsRequired()
                    .HasMaxLength(15);
                entity.Property(e => e.Description).HasColumnType("ntext");
                entity.Property(e => e.Picture).HasColumnType("image");
            });
            modelBuilder.Entity<Customer>(entity => {
                entity.HasIndex(e => e.City, "City");
                entity.HasIndex(e => e.CompanyName, "CompanyName");
                entity.HasIndex(e => e.PostalCode, "PostalCode");
                entity.HasIndex(e => e.Region, "Region");
                entity.Property(e => e.CustomerId)
                    .HasMaxLength(5)
                    .HasColumnName("CustomerID")
                    .IsFixedLength(true);
                entity.Property(e => e.Address).HasMaxLength(60);
                entity.Property(e => e.City).HasMaxLength(15);
                entity.Property(e => e.CompanyName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.ContactName).HasMaxLength(30);
                entity.Property(e => e.ContactTitle).HasMaxLength(30);
                entity.Property(e => e.Country).HasMaxLength(15);
                entity.Property(e => e.Fax).HasMaxLength(24);
                entity.Property(e => e.Phone).HasMaxLength(24);
                entity.Property(e => e.PostalCode).HasMaxLength(10);
                entity.Property(e => e.Region).HasMaxLength(15);
            });
            modelBuilder.Entity<Invoice>(entity => {
                entity.HasNoKey();
                entity.ToView("Invoices");
                entity.Property(e => e.Address).HasMaxLength(60);
                entity.Property(e => e.City).HasMaxLength(15);
                entity.Property(e => e.Country).HasMaxLength(15);
                entity.Property(e => e.CustomerId)
                    .HasMaxLength(5)
                    .HasColumnName("CustomerID")
                    .IsFixedLength(true);
                entity.Property(e => e.CustomerName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.ExtendedPrice).HasColumnType("money");
                entity.Property(e => e.Freight).HasColumnType("money");
                entity.Property(e => e.OrderDate).HasColumnType("datetime");
                entity.Property(e => e.OrderId).HasColumnName("OrderID");
                entity.Property(e => e.PostalCode).HasMaxLength(10);
                entity.Property(e => e.ProductId).HasColumnName("ProductID");
                entity.Property(e => e.ProductName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.Region).HasMaxLength(15);
                entity.Property(e => e.RequiredDate).HasColumnType("datetime");
                entity.Property(e => e.Salesperson)
                    .IsRequired()
                    .HasMaxLength(31);
                entity.Property(e => e.ShipAddress).HasMaxLength(60);
                entity.Property(e => e.ShipCity).HasMaxLength(15);
                entity.Property(e => e.ShipCountry).HasMaxLength(15);
                entity.Property(e => e.ShipName).HasMaxLength(40);
                entity.Property(e => e.ShipPostalCode).HasMaxLength(10);
                entity.Property(e => e.ShipRegion).HasMaxLength(15);
                entity.Property(e => e.ShippedDate).HasColumnType("datetime");
                entity.Property(e => e.ShipperName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.UnitPrice).HasColumnType("money");
            });
            modelBuilder.Entity<Order>(entity => {
                entity.HasIndex(e => e.CustomerId, "CustomerID");
                entity.HasIndex(e => e.CustomerId, "CustomersOrders");
                entity.HasIndex(e => e.EmployeeId, "EmployeeID");
                entity.HasIndex(e => e.EmployeeId, "EmployeesOrders");
                entity.HasIndex(e => e.OrderDate, "OrderDate");
                entity.HasIndex(e => e.ShipPostalCode, "ShipPostalCode");
                entity.HasIndex(e => e.ShippedDate, "ShippedDate");
                entity.HasIndex(e => e.ShipVia, "ShippersOrders");
                entity.Property(e => e.OrderId).HasColumnName("OrderID");
                entity.Property(e => e.CustomerId)
                    .HasMaxLength(5)
                    .HasColumnName("CustomerID")
                    .IsFixedLength(true);
                entity.Property(e => e.EmployeeId).HasColumnName("EmployeeID");
                entity.Property(e => e.Freight)
                    .HasColumnType("money")
                    .HasDefaultValueSql("((0))");
                entity.Property(e => e.OrderDate).HasColumnType("datetime");
                entity.Property(e => e.RequiredDate).HasColumnType("datetime");
                entity.Property(e => e.ShipAddress).HasMaxLength(60);
                entity.Property(e => e.ShipCity).HasMaxLength(15);
                entity.Property(e => e.ShipCountry).HasMaxLength(15);
                entity.Property(e => e.ShipName).HasMaxLength(40);
                entity.Property(e => e.ShipPostalCode).HasMaxLength(10);
                entity.Property(e => e.ShipRegion).HasMaxLength(15);
                entity.Property(e => e.ShippedDate).HasColumnType("datetime");
                entity.HasOne(d => d.Customer)
                    .WithMany(p => p.Orders)
                    .HasForeignKey(d => d.CustomerId)
                    .HasConstraintName("FK_Orders_Customers");
                entity.HasOne(d => d.ShipViaNavigation)
                    .WithMany(p => p.Orders)
                    .HasForeignKey(d => d.ShipVia)
                    .HasConstraintName("FK_Orders_Shippers");
            });
            modelBuilder.Entity<OrderDetail>(entity => {
                entity.HasKey(e => new { e.OrderId, e.ProductId })
                    .HasName("PK_Order_Details");
                entity.ToTable("Order Details");
                entity.HasIndex(e => e.OrderId, "OrderID");
                entity.HasIndex(e => e.OrderId, "OrdersOrder_Details");
                entity.HasIndex(e => e.ProductId, "ProductID");
                entity.HasIndex(e => e.ProductId, "ProductsOrder_Details");
                entity.Property(e => e.OrderId).HasColumnName("OrderID");
                entity.Property(e => e.ProductId).HasColumnName("ProductID");
                entity.Property(e => e.Quantity).HasDefaultValueSql("((1))");
                entity.Property(e => e.UnitPrice).HasColumnType("money");
                entity.HasOne(d => d.Order)
                    .WithMany(p => p.OrderDetails)
                    .HasForeignKey(d => d.OrderId)
                    .OnDelete(DeleteBehavior.ClientSetNull)
                    .HasConstraintName("FK_Order_Details_Orders");
                entity.HasOne(d => d.Product)
                    .WithMany(p => p.OrderDetails)
                    .HasForeignKey(d => d.ProductId)
                    .OnDelete(DeleteBehavior.ClientSetNull)
                    .HasConstraintName("FK_Order_Details_Products");
            });
            modelBuilder.Entity<Product>(entity => {
                entity.HasIndex(e => e.CategoryId, "CategoriesProducts");
                entity.HasIndex(e => e.CategoryId, "CategoryID");
                entity.HasIndex(e => e.ProductName, "ProductName");
                entity.HasIndex(e => e.SupplierId, "SupplierID");
                entity.HasIndex(e => e.SupplierId, "SuppliersProducts");
                entity.Property(e => e.ProductId).HasColumnName("ProductID");
                entity.Property(e => e.CategoryId).HasColumnName("CategoryID");
                entity.Property(e => e.ProductName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.QuantityPerUnit).HasMaxLength(20);
                entity.Property(e => e.ReorderLevel).HasDefaultValueSql("((0))");
                entity.Property(e => e.SupplierId).HasColumnName("SupplierID");
                entity.Property(e => e.UnitPrice)
                    .HasColumnType("money")
                    .HasDefaultValueSql("((0))");
                entity.Property(e => e.UnitsInStock).HasDefaultValueSql("((0))");
                entity.Property(e => e.UnitsOnOrder).HasDefaultValueSql("((0))");
                entity.HasOne(d => d.Category)
                    .WithMany(p => p.Products)
                    .HasForeignKey(d => d.CategoryId)
                    .HasConstraintName("FK_Products_Categories");
                entity.HasOne(d => d.Supplier)
                    .WithMany(p => p.Products)
                    .HasForeignKey(d => d.SupplierId)
                    .HasConstraintName("FK_Products_Suppliers");
            });
            modelBuilder.Entity<Shipper>(entity => {
                entity.Property(e => e.ShipperId).HasColumnName("ShipperID");
                entity.Property(e => e.CompanyName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.Phone).HasMaxLength(24);
            });
            modelBuilder.Entity<Supplier>(entity => {
                entity.HasIndex(e => e.CompanyName, "CompanyName");
                entity.HasIndex(e => e.PostalCode, "PostalCode");
                entity.Property(e => e.SupplierId).HasColumnName("SupplierID");
                entity.Property(e => e.Address).HasMaxLength(60);
                entity.Property(e => e.City).HasMaxLength(15);
                entity.Property(e => e.CompanyName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.ContactName).HasMaxLength(30);
                entity.Property(e => e.ContactTitle).HasMaxLength(30);
                entity.Property(e => e.Country).HasMaxLength(15);
                entity.Property(e => e.Fax).HasMaxLength(24);
                entity.Property(e => e.HomePage).HasColumnType("ntext");
                entity.Property(e => e.Phone).HasMaxLength(24);
                entity.Property(e => e.PostalCode).HasMaxLength(10);
                entity.Property(e => e.Region).HasMaxLength(15);
            });
            modelBuilder.Entity<Employee>(entity => {
                entity.HasIndex(e => e.EmployeeId, "EmployeeId");
                entity.HasIndex(e => e.LastName, "LastName");
                entity.HasIndex(e => e.FirstName, "FirstName");
                entity.HasIndex(e => e.Title, "Title");
                entity.HasIndex(e => e.BirthDate, "BirthDate");
                entity.HasIndex(e => e.HireDate, "HireDate");
                entity.HasIndex(e => e.Notes, "Notes");
            });
            OnModelCreatingPartial(modelBuilder);
        }

        partial void OnModelCreatingPartial(ModelBuilder modelBuilder);
    }
}

Program.cs

using Microsoft.EntityFrameworkCore;
// ...
builder.Services.AddDbContextFactory<NorthwindContext>((sp, options) => {
    var env = sp.GetRequiredService<IWebHostEnvironment>();
    var dbPath = Path.Combine(env.ContentRootPath, "Northwind-5e44b51f.mdf");
    options.UseSqlServer("Server=(localdb)\\MSSQLLocalDB;Integrated Security=true;AttachDbFileName=" + dbPath);
});

For more information about data grouping in the Grid component, refer to the following topic: Group Data in Blazor Grid.

Implements

ShowGroupedColumns
