DxChartAxis<T>.MinVisualRangeLength Property

Specifies the minimum length of the visual range.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
[Parameter]
public ChartAxisInterval MinVisualRangeLength { get; set; }

#Property Value

Type Description
ChartAxisInterval

A ChartAxisInterval value that specifies the range length.

#Remarks

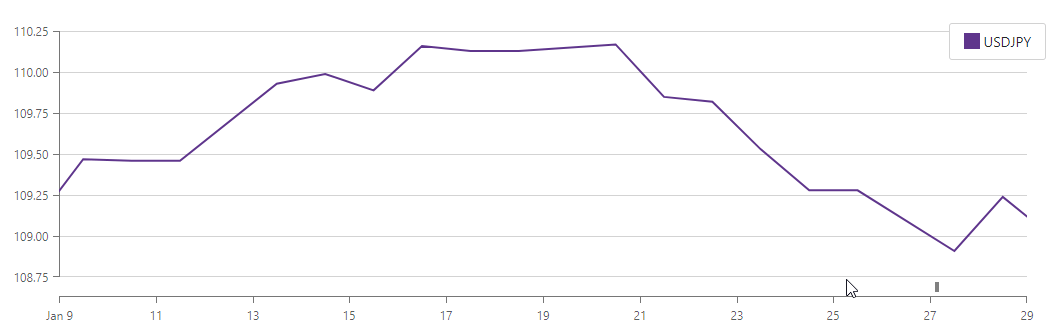

Use the MinVisualRangeLenth property to specify the minimum visual range for an axis.

Razor
<DxChart Data="@dataSource">
    <DxChartLineSeries Name="Total Sales" ArgumentField="@((SaleInfo s) => s.Date)"
                       ValueField="@((SaleInfo s) => s.Amount)">
        <DxChartAggregationSettings Enabled="true"
                                    Method="ChartAggregationMethod.Sum" />
    </DxChartLineSeries>
    <DxChartArgumentAxis MinorTickInterval="ChartAxisInterval.Day"
                         MinVisualRangeLength="ChartAxisInterval.Days(10)">
        <DxChartAxisRange Length="ChartAxisInterval.Days(20)"
                          EndValue="new DateTime(2020, 01, 29)" />
    </DxChartArgumentAxis>
    <DxChartZoomAndPanSettings ArgumentAxisZoomAndPanMode="ChartAxisZoomAndPanMode.Pan" />
    <DxChartScrollBarSettings ArgumentAxisScrollBarVisible="true"
                              ArgumentAxisScrollBarPosition="ChartScrollBarPosition.Bottom" />
</DxChart>
