DxChartAxis<T>.PlaceholderSize Property

Reserves an area for an axis and its labels.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.1.dll

NuGet Package: DevExpress.Blazor

Declaration

[Parameter]
public double PlaceholderSize { get; set; }

Property Value

Type	Description
Double	The area in pixels.

Remarks

Use the PlaceHolderSize property to reserve an area for an axis and its labels.

When the specified area is not enough to display axis labels completely, you can use the TextOverflow or WordWrap property to define how to display such labels.

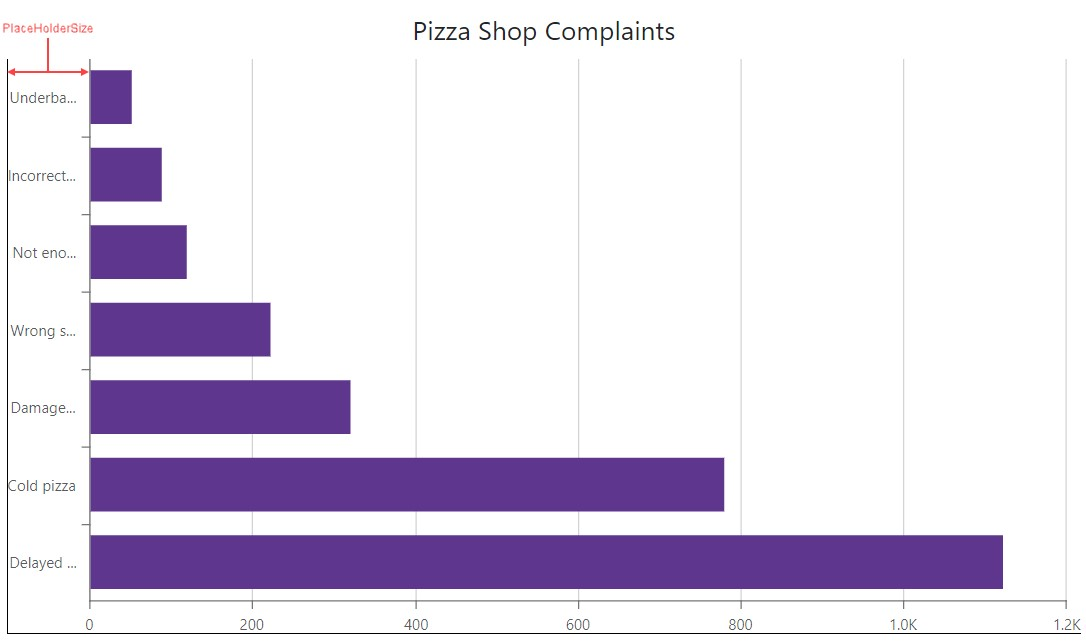

The following example changes the content area size for the argument axis and uses drop-down menus to choose how to display axis labels:

<DxChart Data="@GetData()" Width="100%" Height="500" Rotated="true">
    <DxChartTitle Text="Pizza Shop Complaints" CssClass="mb-2" />
    <DxChartLegend Visible="false" />
        <DxChartBarSeries ArgumentField="@((DataPoint s) => s.Complaint)"
                          ValueField="@((DataPoint s) => s.Count)" />
    <DxChartTooltip Enabled="true">
        <div style="margin: 0.75rem">
            <div class="fw-bold">@context.Point.Argument</div>
            <div>Complaint frequency: @context.Point.Value</div>
        </div>
    </DxChartTooltip>
    <DxChartArgumentAxis PlaceholderSize="@CurrentPlaceholderSize">
        <DxChartAxisLabel WordWrap="@CurrentWordWrap"
                          TextOverflow="@CurrentTextOverflow" />
    </DxChartArgumentAxis>
</DxChart>

@code {
    ChartTextOverflow CurrentTextOverflow = ChartTextOverflow.Ellipsis;
    ChartWordWrap CurrentWordWrap = ChartWordWrap.Normal;
    double CurrentPlaceholderSize = 55;
    List<DataPoint> GetData() {
        List<DataPoint> result = new List<DataPoint>(7);
        result.Add(new DataPoint("Delayed delivery", 1123));
        result.Add(new DataPoint("Cold pizza", 780));
        result.Add(new DataPoint("Damaged pizza", 321));
        result.Add(new DataPoint("Wrong size delivered", 222));
        result.Add(new DataPoint("Not enough cheese", 120));
        result.Add(new DataPoint("Incorrect billing", 89));
        result.Add(new DataPoint("Underbaked or Overbaked", 52));
        return result;
    }
    public class DataPoint {
        public string Complaint { get; set; }
        public int Count { get; set; }
        public DataPoint(string complaint, int count) {
            Complaint = complaint;
            Count = count;
        }
    }
}

Run Demo: Chart - Text Overflow and Word Wrap
