DxChartAnnotationBase<T>.PositionX Property

Specifies the X coordinate of the annotation center.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

Declaration

[Parameter]
public double PositionX { get; set; }

Property Value

Type	Description
Double	The X coordinate.

Remarks

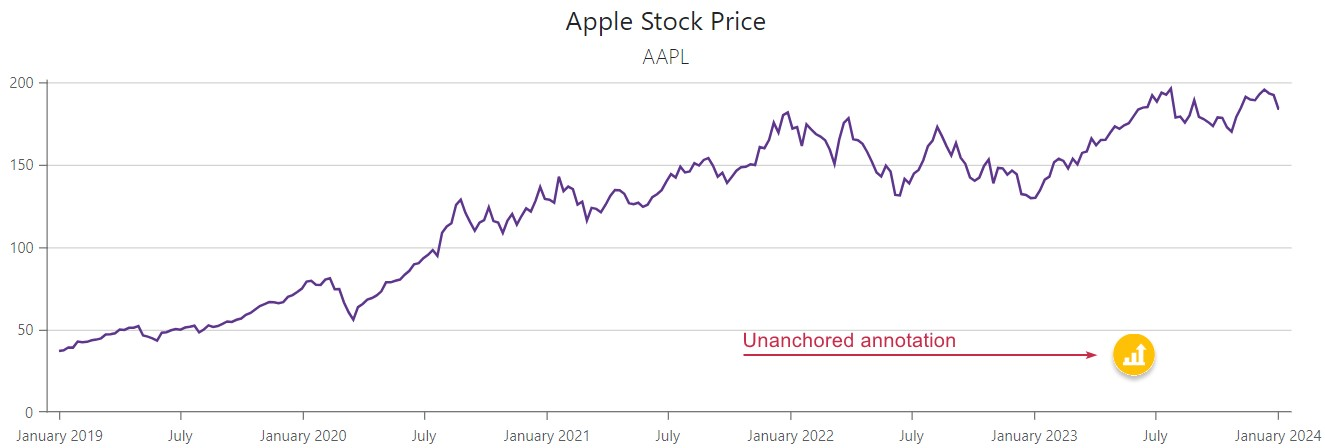

Specify the annotation’s PositionX and PositionY properties to position the annotation relative to the top left corner of the chart container. Such annotation is unanchored – it does not point to any chart element.

<DxChartAnnotation PositionX="900"
                   PositionY="230"
                   Type="ChartAnnotationType.Image">
    <DxChartAnnotationImage Url="@StaticAssetUtils.GetImagePath("AppleStock/stock.svg")"
                            Width="40"
                            Height="40" />
</DxChartAnnotation>

You can also use pixel and chart coordinates simultaneously to move the anchored annotation to the specified position.

Refer to the following section for more information about annotations: Annotations in Blazor Charts.
