  • DxChartAnnotationBase<T>.AllowDrag Property

    Specifies whether users can drag the annotation.

    Namespace: DevExpress.Blazor

    Assembly: DevExpress.Blazor.v25.1.dll

    NuGet Package: DevExpress.Blazor

    Declaration

    [DefaultValue(false)]
    [Parameter]
    public bool AllowDrag { get; set; }

    Property Value

    Type Default Description
    Boolean false

    true to allow users to drag the annotation; otherwise, false.

    Remarks

    Set the AllowDrag property to true to allow users to drag the annotation to a new position.

    <DxChart Data="@DataSource">
        @* ... *@
        <DxChartLineSeries ValueField="@((ApplePrice i) => i.Close)"
                           ArgumentField="@((ApplePrice i) => i.Date)"
                           Name="AAPL" />
        <DxChartAnnotation PositionX="150"
                           PositionY="150"
                           Type="ChartAnnotationType.Image"
                           AllowDrag="true"
                           TooltipText="Drag me"
                           Color="transparent"
                           PaddingLeftRight="0"
                           PaddingTopBottom="0">
            <DxChartAnnotationImage Url="@StaticAssetUtils.GetImagePath("AppleStock/stock.svg")"
                                    Width="60"
                                    Height="60" />
            <DxChartAnnotationBorder Visible="false" />
        </DxChartAnnotation>
    </DxChart>

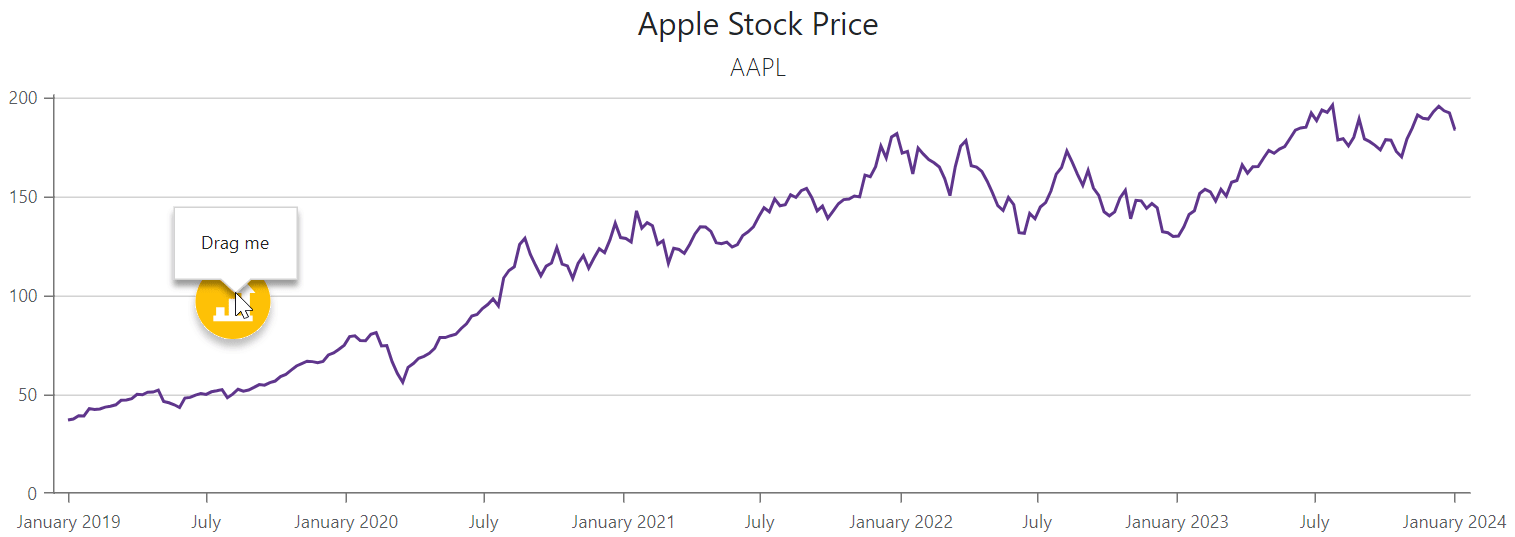

    Chart - Image annotation

    Refer to the following section for more information about annotations: Annotations in Blazor Charts.
