DxGridColumn.GroupFooterTemplate Property

Specifies a template for the column’s group footer cell.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

Declaration

[Parameter]
public RenderFragment<GridColumnGroupFooterTemplateContext> GroupFooterTemplate { get; set; }

Property Value

Type	Description
RenderFragment<GridColumnGroupFooterTemplateContext>	The template for the column’s group footer cell.

Remarks

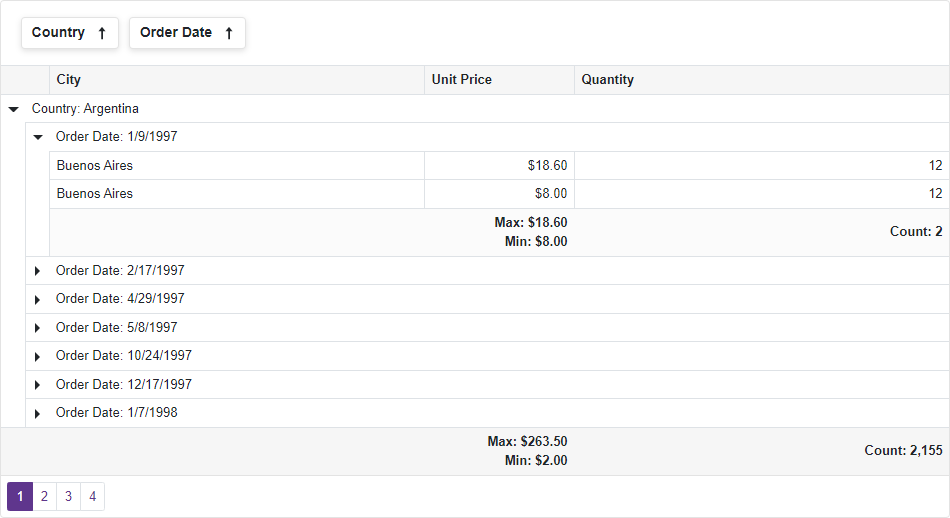

Group footers display group summaries if you specify the FooterColumnName property. Group footers contain footer cells that correspond to data columns. Footer cells display formatted summary values.

The GroupFooterTemplate allows you to specify custom content and appearance for the group footer cell in this column. To define a common template for all group footer cells in the grid, use the DxGrid.ColumnGroupFooterTemplate.

The GroupFooterTemplate accepts a GridColumnGroupFooterTemplateContext object as the context parameter. You can use the parameter’s members to get the Column and SummaryItems. You can also access the Grid object and use its members to obtain additional information about the component.

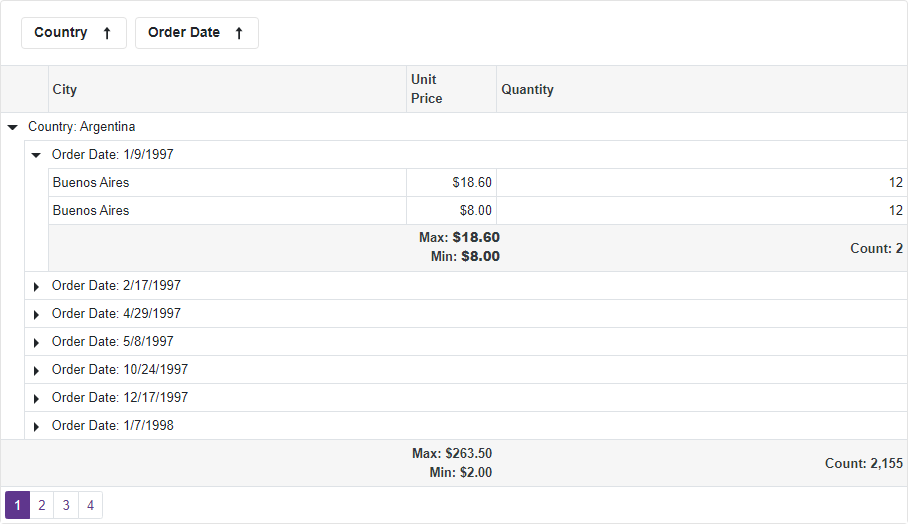

The following code snippet makes group summary values bold for the UnitPrice column.

Razor

@using Microsoft.EntityFrameworkCore
@inject IDbContextFactory<NorthwindContext> NorthwindContextFactory
@implements IDisposable

<DxGrid Data="@Data" ShowGroupPanel="true">
    <Columns>
        <DxGridDataColumn FieldName="Country" GroupIndex="0" />
        <DxGridDataColumn FieldName="City" />
        <DxGridDataColumn FieldName="OrderDate" GroupIndex="1" />
        <DxGridDataColumn FieldName="UnitPrice" DisplayFormat="c" Width="150px">
            <GroupFooterTemplate>
                @{
                    var summaryItems = context.SummaryItems;
                    if (summaryItems.Any()) {
                        foreach (var i in summaryItems) {
                            @context.Grid.GetGroupSummaryLabel(i, context.GroupRowVisibleIndex)
                            <text>: </text>
                            <b>@context.Grid.GetGroupSummaryFormattedValue(i, context.GroupRowVisibleIndex)</b><br />
                        }
                    }
                }
            </GroupFooterTemplate>
        </DxGridDataColumn>
        <DxGridDataColumn FieldName="Quantity" />
    </Columns>
    <TotalSummary>
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Max" FieldName="UnitPrice" />
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Min" FieldName="UnitPrice" />
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Count" FieldName="Quantity" />
    </TotalSummary>
    <GroupSummary>
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Max" FieldName="UnitPrice" FooterColumnName="UnitPrice" />
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Min" FieldName="UnitPrice" FooterColumnName="UnitPrice" />
        <DxGridSummaryItem SummaryType="GridSummaryItemType.Count" FieldName="Quantity" FooterColumnName="Quantity" />
    </GroupSummary>
</DxGrid>

@code {
    object Data { get; set; }
    NorthwindContext Northwind { get; set; }

    protected override void OnInitialized() {
        Northwind = NorthwindContextFactory.CreateDbContext();
        Data = Northwind.Invoices
            .ToList();
    }

    public void Dispose() {
        Northwind?.Dispose();
    }
}

Invoice

using System;
#nullable disable

namespace Grid.Northwind {
    public partial class Invoice {
        public string ShipName { get; set; }
        public string ShipAddress { get; set; }
        public string ShipCity { get; set; }
        public string ShipRegion { get; set; }
        public string ShipPostalCode { get; set; }
        public string ShipCountry { get; set; }
        public string CustomerId { get; set; }
        public string CustomerName { get; set; }
        public string Address { get; set; }
        public string City { get; set; }
        public string Region { get; set; }
        public string PostalCode { get; set; }
        public string Country { get; set; }
        public string Salesperson { get; set; }
        public int OrderId { get; set; }
        public DateTime? OrderDate { get; set; }
        public DateTime? RequiredDate { get; set; }
        public DateTime? ShippedDate { get; set; }
        public string ShipperName { get; set; }
        public int ProductId { get; set; }
        public string ProductName { get; set; }
        public decimal UnitPrice { get; set; }
        public short Quantity { get; set; }
        public float Discount { get; set; }
        public decimal? ExtendedPrice { get; set; }
        public decimal? Freight { get; set; }
    }
}

NorthwindContext.cs

using Microsoft.EntityFrameworkCore;
#nullable disable

namespace Grid.Northwind {
    public partial class NorthwindContext : DbContext {

        public NorthwindContext(DbContextOptions<NorthwindContext> options)
            : base(options) {
        }

        public virtual DbSet<Category> Categories { get; set; }
        public virtual DbSet<Customer> Customers { get; set; }
        public virtual DbSet<Invoice> Invoices { get; set; }
        public virtual DbSet<Order> Orders { get; set; }
        public virtual DbSet<OrderDetail> OrderDetails { get; set; }
        public virtual DbSet<Product> Products { get; set; }
        public virtual DbSet<Shipper> Shippers { get; set; }
        public virtual DbSet<Supplier> Suppliers { get; set; }
        public virtual DbSet<Employee> Employees { get; set; }

        protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder) {
            if(!optionsBuilder.IsConfigured) {
                optionsBuilder.UseSqlServer("Server=.\\sqlexpress;Database=Northwind;Integrated Security=true");
            }
        }

        protected override void OnModelCreating(ModelBuilder modelBuilder) {
            modelBuilder.HasAnnotation("Relational:Collation", "SQL_Latin1_General_CP1_CI_AS");
            modelBuilder.Entity<Category>(entity => {
                entity.HasIndex(e => e.CategoryName, "CategoryName");
                entity.Property(e => e.CategoryId).HasColumnName("CategoryID");
                entity.Property(e => e.CategoryName)
                    .IsRequired()
                    .HasMaxLength(15);
                entity.Property(e => e.Description).HasColumnType("ntext");
                entity.Property(e => e.Picture).HasColumnType("image");
            });
            modelBuilder.Entity<Customer>(entity => {
                entity.HasIndex(e => e.City, "City");
                entity.HasIndex(e => e.CompanyName, "CompanyName");
                entity.HasIndex(e => e.PostalCode, "PostalCode");
                entity.HasIndex(e => e.Region, "Region");
                entity.Property(e => e.CustomerId)
                    .HasMaxLength(5)
                    .HasColumnName("CustomerID")
                    .IsFixedLength(true);
                entity.Property(e => e.Address).HasMaxLength(60);
                entity.Property(e => e.City).HasMaxLength(15);
                entity.Property(e => e.CompanyName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.ContactName).HasMaxLength(30);
                entity.Property(e => e.ContactTitle).HasMaxLength(30);
                entity.Property(e => e.Country).HasMaxLength(15);
                entity.Property(e => e.Fax).HasMaxLength(24);
                entity.Property(e => e.Phone).HasMaxLength(24);
                entity.Property(e => e.PostalCode).HasMaxLength(10);
                entity.Property(e => e.Region).HasMaxLength(15);
            });
            modelBuilder.Entity<Invoice>(entity => {
                entity.HasNoKey();
                entity.ToView("Invoices");
                entity.Property(e => e.Address).HasMaxLength(60);
                entity.Property(e => e.City).HasMaxLength(15);
                entity.Property(e => e.Country).HasMaxLength(15);
                entity.Property(e => e.CustomerId)
                    .HasMaxLength(5)
                    .HasColumnName("CustomerID")
                    .IsFixedLength(true);
                entity.Property(e => e.CustomerName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.ExtendedPrice).HasColumnType("money");
                entity.Property(e => e.Freight).HasColumnType("money");
                entity.Property(e => e.OrderDate).HasColumnType("datetime");
                entity.Property(e => e.OrderId).HasColumnName("OrderID");
                entity.Property(e => e.PostalCode).HasMaxLength(10);
                entity.Property(e => e.ProductId).HasColumnName("ProductID");
                entity.Property(e => e.ProductName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.Region).HasMaxLength(15);
                entity.Property(e => e.RequiredDate).HasColumnType("datetime");
                entity.Property(e => e.Salesperson)
                    .IsRequired()
                    .HasMaxLength(31);
                entity.Property(e => e.ShipAddress).HasMaxLength(60);
                entity.Property(e => e.ShipCity).HasMaxLength(15);
                entity.Property(e => e.ShipCountry).HasMaxLength(15);
                entity.Property(e => e.ShipName).HasMaxLength(40);
                entity.Property(e => e.ShipPostalCode).HasMaxLength(10);
                entity.Property(e => e.ShipRegion).HasMaxLength(15);
                entity.Property(e => e.ShippedDate).HasColumnType("datetime");
                entity.Property(e => e.ShipperName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.UnitPrice).HasColumnType("money");
            });
            modelBuilder.Entity<Order>(entity => {
                entity.HasIndex(e => e.CustomerId, "CustomerID");
                entity.HasIndex(e => e.CustomerId, "CustomersOrders");
                entity.HasIndex(e => e.EmployeeId, "EmployeeID");
                entity.HasIndex(e => e.EmployeeId, "EmployeesOrders");
                entity.HasIndex(e => e.OrderDate, "OrderDate");
                entity.HasIndex(e => e.ShipPostalCode, "ShipPostalCode");
                entity.HasIndex(e => e.ShippedDate, "ShippedDate");
                entity.HasIndex(e => e.ShipVia, "ShippersOrders");
                entity.Property(e => e.OrderId).HasColumnName("OrderID");
                entity.Property(e => e.CustomerId)
                    .HasMaxLength(5)
                    .HasColumnName("CustomerID")
                    .IsFixedLength(true);
                entity.Property(e => e.EmployeeId).HasColumnName("EmployeeID");
                entity.Property(e => e.Freight)
                    .HasColumnType("money")
                    .HasDefaultValueSql("((0))");
                entity.Property(e => e.OrderDate).HasColumnType("datetime");
                entity.Property(e => e.RequiredDate).HasColumnType("datetime");
                entity.Property(e => e.ShipAddress).HasMaxLength(60);
                entity.Property(e => e.ShipCity).HasMaxLength(15);
                entity.Property(e => e.ShipCountry).HasMaxLength(15);
                entity.Property(e => e.ShipName).HasMaxLength(40);
                entity.Property(e => e.ShipPostalCode).HasMaxLength(10);
                entity.Property(e => e.ShipRegion).HasMaxLength(15);
                entity.Property(e => e.ShippedDate).HasColumnType("datetime");
                entity.HasOne(d => d.Customer)
                    .WithMany(p => p.Orders)
                    .HasForeignKey(d => d.CustomerId)
                    .HasConstraintName("FK_Orders_Customers");
                entity.HasOne(d => d.ShipViaNavigation)
                    .WithMany(p => p.Orders)
                    .HasForeignKey(d => d.ShipVia)
                    .HasConstraintName("FK_Orders_Shippers");
            });
            modelBuilder.Entity<OrderDetail>(entity => {
                entity.HasKey(e => new { e.OrderId, e.ProductId })
                    .HasName("PK_Order_Details");
                entity.ToTable("Order Details");
                entity.HasIndex(e => e.OrderId, "OrderID");
                entity.HasIndex(e => e.OrderId, "OrdersOrder_Details");
                entity.HasIndex(e => e.ProductId, "ProductID");
                entity.HasIndex(e => e.ProductId, "ProductsOrder_Details");
                entity.Property(e => e.OrderId).HasColumnName("OrderID");
                entity.Property(e => e.ProductId).HasColumnName("ProductID");
                entity.Property(e => e.Quantity).HasDefaultValueSql("((1))");
                entity.Property(e => e.UnitPrice).HasColumnType("money");
                entity.HasOne(d => d.Order)
                    .WithMany(p => p.OrderDetails)
                    .HasForeignKey(d => d.OrderId)
                    .OnDelete(DeleteBehavior.ClientSetNull)
                    .HasConstraintName("FK_Order_Details_Orders");
                entity.HasOne(d => d.Product)
                    .WithMany(p => p.OrderDetails)
                    .HasForeignKey(d => d.ProductId)
                    .OnDelete(DeleteBehavior.ClientSetNull)
                    .HasConstraintName("FK_Order_Details_Products");
            });
            modelBuilder.Entity<Product>(entity => {
                entity.HasIndex(e => e.CategoryId, "CategoriesProducts");
                entity.HasIndex(e => e.CategoryId, "CategoryID");
                entity.HasIndex(e => e.ProductName, "ProductName");
                entity.HasIndex(e => e.SupplierId, "SupplierID");
                entity.HasIndex(e => e.SupplierId, "SuppliersProducts");
                entity.Property(e => e.ProductId).HasColumnName("ProductID");
                entity.Property(e => e.CategoryId).HasColumnName("CategoryID");
                entity.Property(e => e.ProductName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.QuantityPerUnit).HasMaxLength(20);
                entity.Property(e => e.ReorderLevel).HasDefaultValueSql("((0))");
                entity.Property(e => e.SupplierId).HasColumnName("SupplierID");
                entity.Property(e => e.UnitPrice)
                    .HasColumnType("money")
                    .HasDefaultValueSql("((0))");
                entity.Property(e => e.UnitsInStock).HasDefaultValueSql("((0))");
                entity.Property(e => e.UnitsOnOrder).HasDefaultValueSql("((0))");
                entity.HasOne(d => d.Category)
                    .WithMany(p => p.Products)
                    .HasForeignKey(d => d.CategoryId)
                    .HasConstraintName("FK_Products_Categories");
                entity.HasOne(d => d.Supplier)
                    .WithMany(p => p.Products)
                    .HasForeignKey(d => d.SupplierId)
                    .HasConstraintName("FK_Products_Suppliers");
            });
            modelBuilder.Entity<Shipper>(entity => {
                entity.Property(e => e.ShipperId).HasColumnName("ShipperID");
                entity.Property(e => e.CompanyName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.Phone).HasMaxLength(24);
            });
            modelBuilder.Entity<Supplier>(entity => {
                entity.HasIndex(e => e.CompanyName, "CompanyName");
                entity.HasIndex(e => e.PostalCode, "PostalCode");
                entity.Property(e => e.SupplierId).HasColumnName("SupplierID");
                entity.Property(e => e.Address).HasMaxLength(60);
                entity.Property(e => e.City).HasMaxLength(15);
                entity.Property(e => e.CompanyName)
                    .IsRequired()
                    .HasMaxLength(40);
                entity.Property(e => e.ContactName).HasMaxLength(30);
                entity.Property(e => e.ContactTitle).HasMaxLength(30);
                entity.Property(e => e.Country).HasMaxLength(15);
                entity.Property(e => e.Fax).HasMaxLength(24);
                entity.Property(e => e.HomePage).HasColumnType("ntext");
                entity.Property(e => e.Phone).HasMaxLength(24);
                entity.Property(e => e.PostalCode).HasMaxLength(10);
                entity.Property(e => e.Region).HasMaxLength(15);
            });
            modelBuilder.Entity<Employee>(entity => {
                entity.HasIndex(e => e.EmployeeId, "EmployeeId");
                entity.HasIndex(e => e.LastName, "LastName");
                entity.HasIndex(e => e.FirstName, "FirstName");
                entity.HasIndex(e => e.Title, "Title");
                entity.HasIndex(e => e.BirthDate, "BirthDate");
                entity.HasIndex(e => e.HireDate, "HireDate");
                entity.HasIndex(e => e.Notes, "Notes");
            });
            OnModelCreatingPartial(modelBuilder);
        }

        partial void OnModelCreatingPartial(ModelBuilder modelBuilder);
    }
}

Program.cs

using Microsoft.EntityFrameworkCore;
// ...
builder.Services.AddDbContextFactory<NorthwindContext>((sp, options) => {
    var env = sp.GetRequiredService<IWebHostEnvironment>();
    var dbPath = Path.Combine(env.ContentRootPath, "Northwind-5e44b51f.mdf");
    options.UseSqlServer("Server=(localdb)\\MSSQLLocalDB;Integrated Security=true;AttachDbFileName=" + dbPath);
});

To specify a template for the column’s footer cell, use the FooterTemplate property.

For more information about templates in the Grid component, refer to the following topic: Templates in Blazor Grid.

Implements

GroupFooterTemplate
