DxSchedulerMonthView.ResourceCaptionOrientation Property

Arranges resource captions horizontally or vertically when appointments are grouped by date.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.2.dll

NuGet Package: DevExpress.Blazor

Declaration

[DefaultValue(Orientation.Vertical)]
[Parameter]
public Orientation ResourceCaptionOrientation { get; set; }

Property Value

Type	Default	Description
Orientation	Vertical	An enumeration value.

Available values:

Name	Description
Horizontal	Sets horizontal orientation.
Vertical	Sets vertical orientation.

Remarks

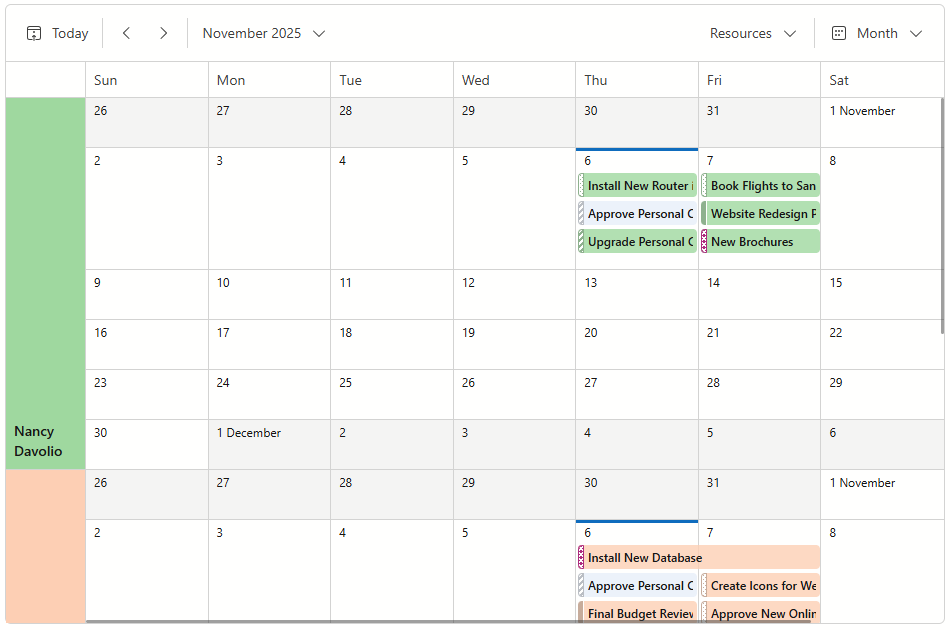

The Scheduler component displays resources in vertical cells when appointments are grouped:

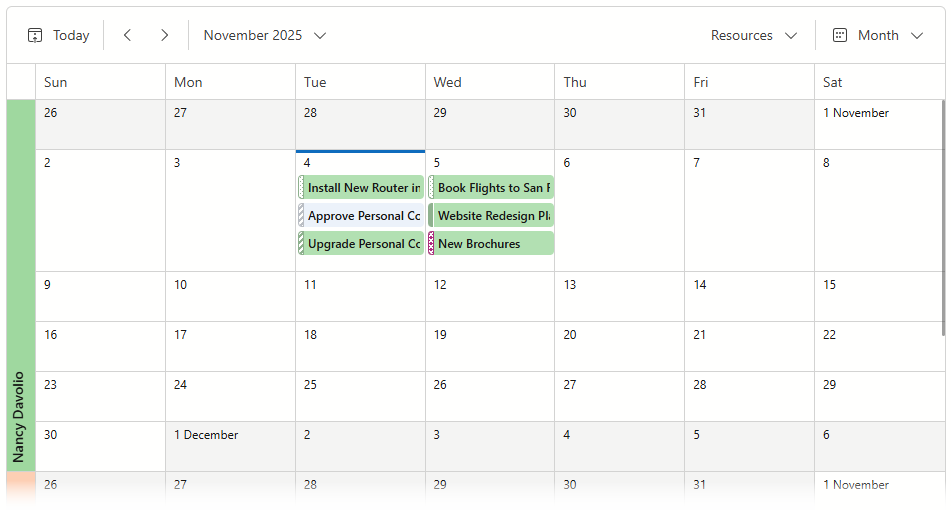

Use the ResourceCaptionOrientation property to display resource captions horizontally:

<DxScheduler @bind-StartDate="@StartDate"
             DataStorage="@DataStorage"
             GroupType="SchedulerGroupType.Date">
    <DxSchedulerMonthView CellMinWidth="120"
                          CellMinHeight="50"
                          ResourceCaptionOrientation="Orientation.Horizontal"
                          VerticalResourceCellWidth="80" />
</DxScheduler>

You can use the following properties to adjust cell size in the month view:

VerticalResourceCellWidth

Specifies the resource cell width when appointments are grouped by date and resource captions are aligned horizontally.

CellMinWidth

Specifies the base width of a day cell in the month view in pixels.

CellMinHeight

Specifies the minimum cell height in the month view.
