DxSchedulerTimelineView.VerticalResourceCellWidth Property

Specifies the resource cell width when appointments are grouped and captions are aligned horizontally.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.2.dll

NuGet Package: DevExpress.Blazor

Declaration

[DefaultValue(null)]
[Parameter]
public int? VerticalResourceCellWidth { get; set; }

Property Value

Type	Default	Description
Nullable<Int32>	null	The cell width in pixels.

Remarks

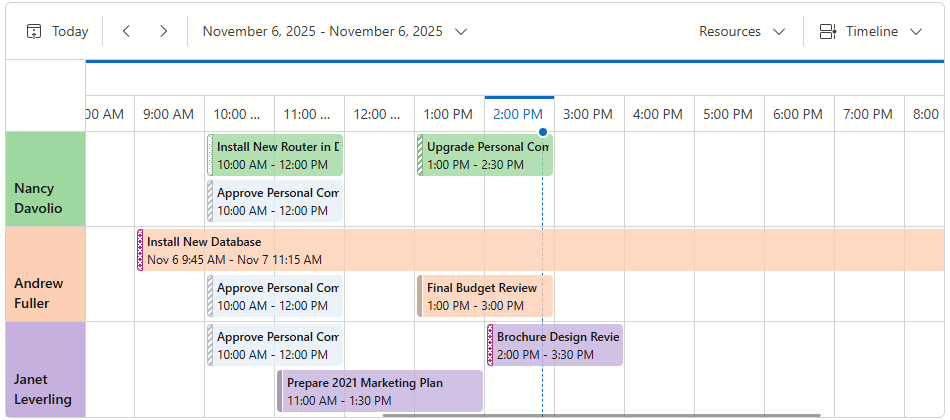

The following example sets the resource cell width to 80:

<DxScheduler @bind-StartDate="@StartDate"
             DataStorage="@DataStorage"
             GroupType="SchedulerGroupType.Date">
    <DxSchedulerTimelineView CellMinWidth="70"
                             CellMinHeight="50"
                             LastAppointmentIndent="3"
                             ResourceCaptionOrientation="Orientation.Horizontal"
                             VerticalResourceCellWidth="80" />
</DxScheduler>
