DxSchedulerTimelineView.CellMinHeight Property

Specifies the minimum cell height in the timeline view.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.2.dll

NuGet Package: DevExpress.Blazor

Declaration

[DefaultValue(0)]
[Parameter]
public int CellMinHeight { get; set; }

Property Value

Type	Default	Description
Int32	0	The minimum cell height in pixels.

Remarks

The CellMinHeight property specifies the minimum height of time/resource cells that display appointments. The Scheduler component can increase the height if the specified value does not accommodate the following elements:

• All appointments.
• Resource caption, if visible.
• Empty space under the last appointment (LastAppointmentIndent). Users can click this area to create new appointments.

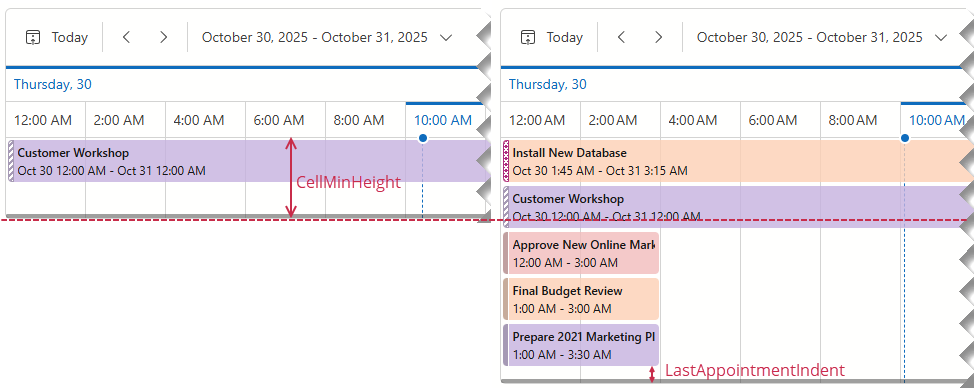

The following image displays two timeline views with the same CellMinHeight but a different number of appointments:

Code Example

The following example sets CellMinHeight to 65:

<DxScheduler @bind-StartDate="@StartDate"
             DataStorage="@DataStorage"
             ResourceNavigatorVisible="false">
    <DxSchedulerTimelineView Duration="@TimeSpan.FromHours(48)"
                             CellMinWidth="80"
                             CellMinHeight="65">
        <Scales>
            <DxSchedulerTimeScale Unit="@SchedulerTimeScaleUnit.Day" UnitCount="1" />
            <DxSchedulerTimeScale Unit="@SchedulerTimeScaleUnit.Hour" UnitCount="2" />
        </Scales>
    </DxSchedulerTimelineView>
</DxScheduler>
