DxChartArgumentAxis.WorkDates Property

Specifies dates that DxChart treats as workdays.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
[Parameter]
public object[] WorkDates { get; set; }

#Property Value

Type Description
Object[]

An array of objects.

#Remarks

Enable the WorkdaysOnly option to display workdays only on the argument axis. Use the WorkDates property to mark select weekend dates as workdays and add them to the argument list.

To specify which days of the week are workdays, use the WorkWeek property.

The following example demonstrates a scenario where a business workweek includes only three days – Monday, Tuesday, and Wednesday. It also marks a weekend date as a workday and a work week date as a holiday.

razor
<DxChart Data="@stockData">
    <DxChartLegend Position="RelativePosition.Outside" />
    <DxChartStockSeries OpenField="(StockDataPoint sdp) => sdp.Open"
                        HighField="sdp => sdp.High"
                        LowField="sdp => sdp.Low"
                        CloseField="sdp => sdp.Close"
                        ArgumentField="@(sdp => new DateTime(
                                        sdp.DateTimeStamp.Year,
                                        sdp.DateTimeStamp.Month,
                                        sdp.DateTimeStamp.Day,
                                        sdp.DateTimeStamp.Hour,
                                        sdp.DateTimeStamp.Minute,
                                        0) )"
                        Name="Eco Supreme" />
    <DxChartArgumentAxis WorkdaysOnly="showWorkdays"
                         TickInterval="ChartAxisInterval.Days(1)"
                         WorkWeek="@(new int[]{1, 2, 3})"
                         WorkDates="@(new object[]{new DateTime(2024, 1, 12)})"
                         Holidays="@(new object[]{new DateTime(2024, 1, 9)})" />
    @* ... *@
</DxChart>

@code {
    IEnumerable<StockDataPoint> stockData;
    bool showWorkdays = true;
    // ...
}

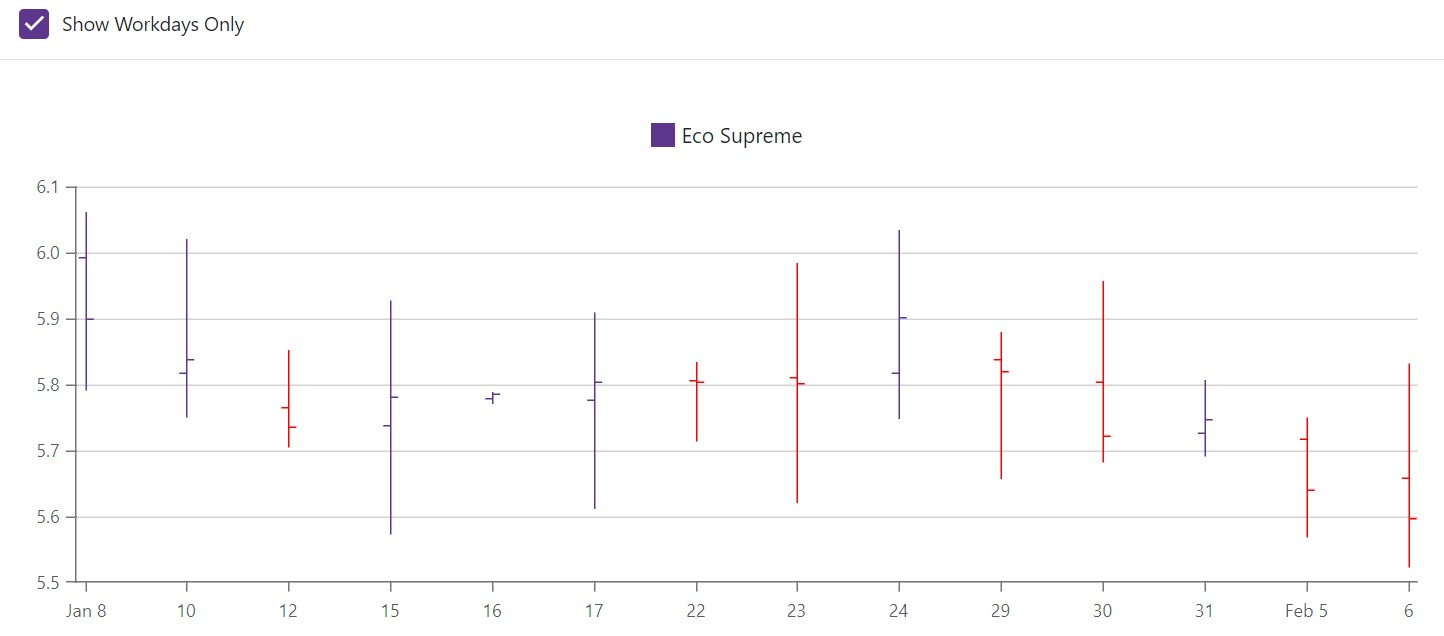

Chart - Workdays on axis
