ChartElementFormat.Millisecond Property

Displays milliseconds.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

Declaration

public static ChartElementFormat Millisecond { get; }

Property Value

Type Description
ChartElementFormat

A ChartElementFormat enumeration value.

Remarks

The default axis label’s format for small time ranges is the following: the Chart component shows hours, minutes, and a time period (AM or PM) under the first tick; hours, minutes and a time period are absent under the other ticks.

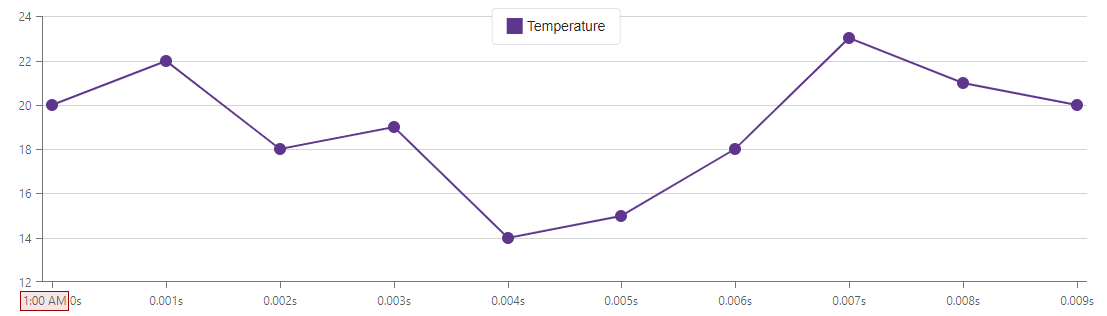

Default axes

Use the Millisecond property to display only milliseconds, for example, 010, and hide hours, minutes, and a time period under all ticks. You can use this property for axis and series labels. The following code snippet calls the method for the argument axis of the Chart:

<DxChart Data="@forecasts">
    <DxChartArgumentAxis>
        <DxChartAxisLabel Format='ChartElementFormat.Millisecond'></DxChartAxisLabel>
    </DxChartArgumentAxis>
    @* ... *@
</DxChart>

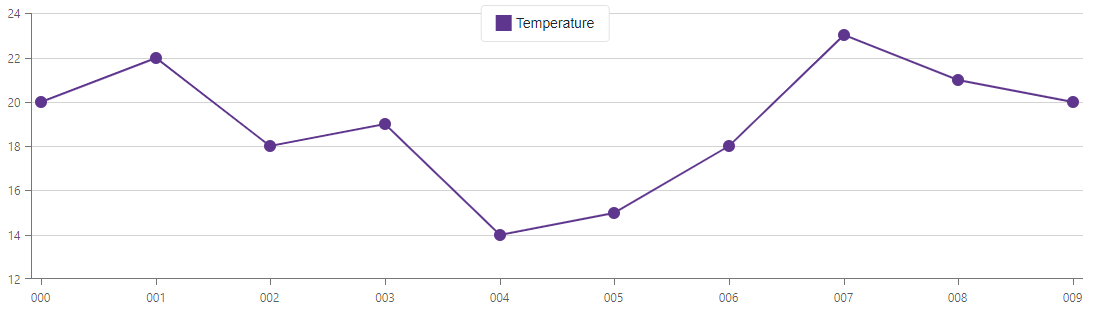

Formatted axis
