ChartElementFormat.Second Property

Displays seconds.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
public static ChartElementFormat Second { get; }

#Property Value

Type Description
ChartElementFormat

A ChartElementFormat enumeration value.

#Remarks

The default axis label’s format for small time ranges is the following: the Chart component shows hours, minutes, and a time period (AM or PM) under the first tick; hours, minutes and a time period are absent under the other ticks.

Default axes

Use the Second property to display only seconds, for example, 00, and hide hours, minutes, seconds, and a time period. You can use this method for axis and series labels. The following code snippet calls the method for the value axis of the Chart:

Razor
<DxChart Data="@forecasts">
    <DxChartArgumentAxis>
        <DxChartAxisLabel Format='ChartElementFormat.Second'></DxChartAxisLabel>
    </DxChartArgumentAxis>
    @* ... *@
</DxChart>

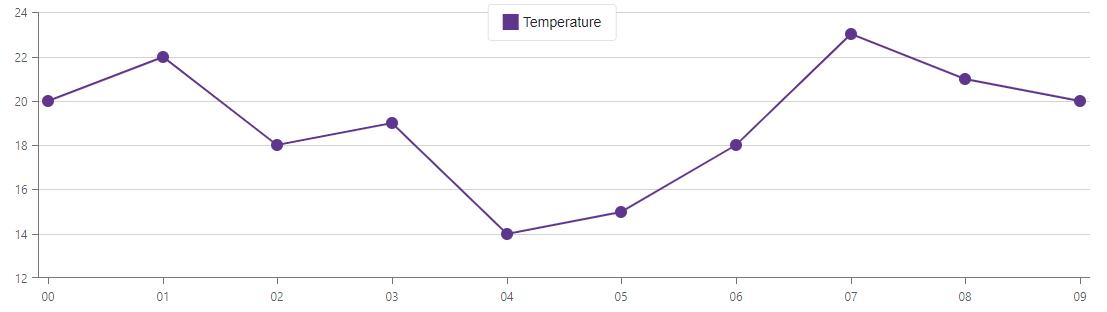

Formatted axis

See Also
