ChartElementFormat.Minute Property

Displays minutes.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
public static ChartElementFormat Minute { get; }

#Property Value

Type Description
ChartElementFormat

A ChartElementFormat enumeration value.

#Remarks

The default axis label’s format for small time ranges is the following: the Chart component shows hours, minutes, and a time period (AM or PM).

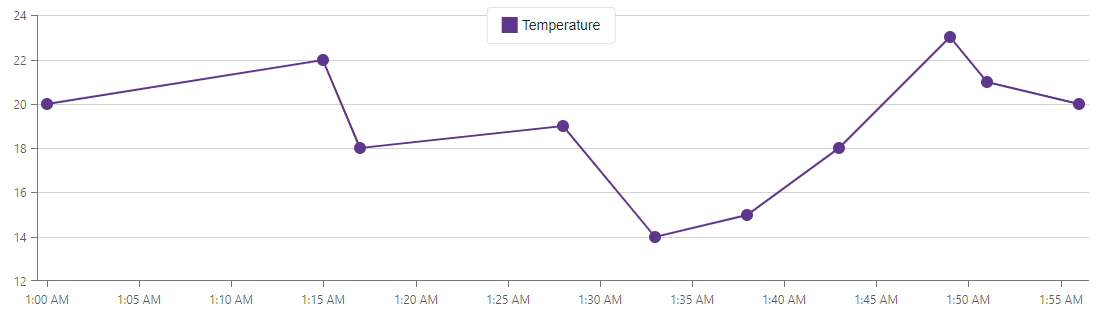

Default axes

Use the Minute property to display only minutes, for example, 01, and hide hours, and a time period under all ticks. You can use this property for axis and series labels. The following code snippet calls the method for the argument axis of the Chart:

Razor
<DxChart Data="@forecasts">
    <DxChartArgumentAxis>
        <DxChartAxisLabel Format='ChartElementFormat.Minute'></DxChartAxisLabel>
    </DxChartArgumentAxis>
    @* ... *@
</DxChart>

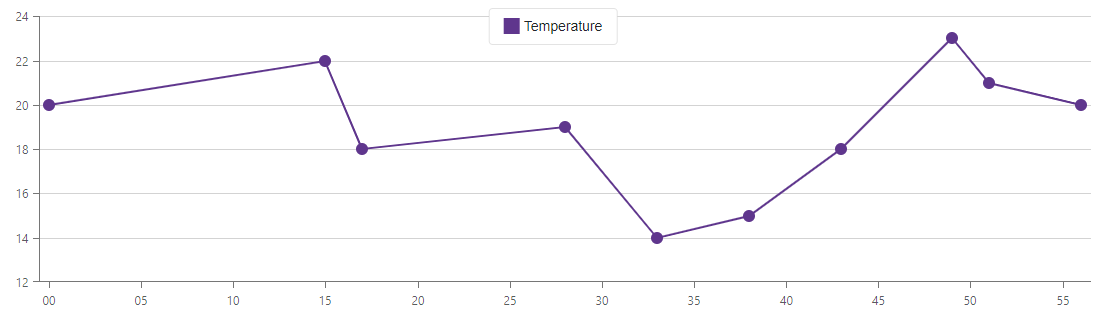

Formatted axis

See Also
