ChartElementFormat.ShortTime Property

Displays a time value in the hh:mm format.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
public static ChartElementFormat ShortTime { get; }

#Property Value

Type Description
ChartElementFormat

A ChartElementFormat enumeration value.

#Remarks

The default axis label’s format for small date ranges: the date, hours, minutes, and a time period (AM or PM) for the first tick, the date is omitted for other ticks.

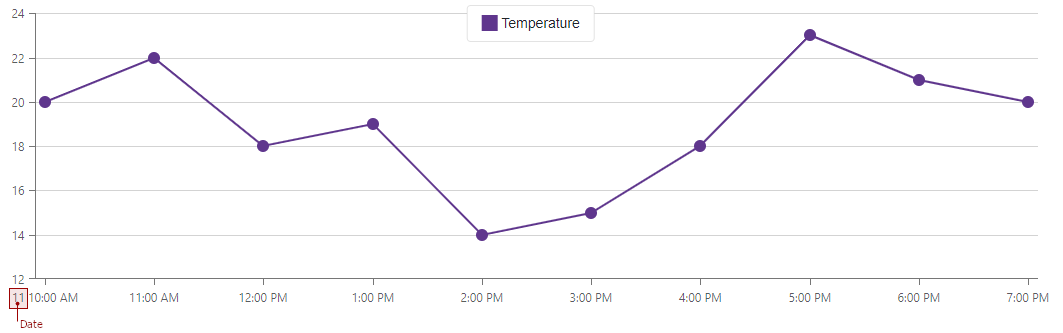

Default axes

Use the ShortTime property to display only time, for example, 12:00 AM, and hide a date. You can use this property for axis and series labels. The following code snippet calls the method for the argument axis of the Chart:

Razor
<DxChart Data="@forecasts">
    <DxChartArgumentAxis>
        <DxChartAxisLabel Format='ChartElementFormat.ShortTime'></DxChartAxisLabel>
    </DxChartArgumentAxis>
    @* ... *@
</DxChart>

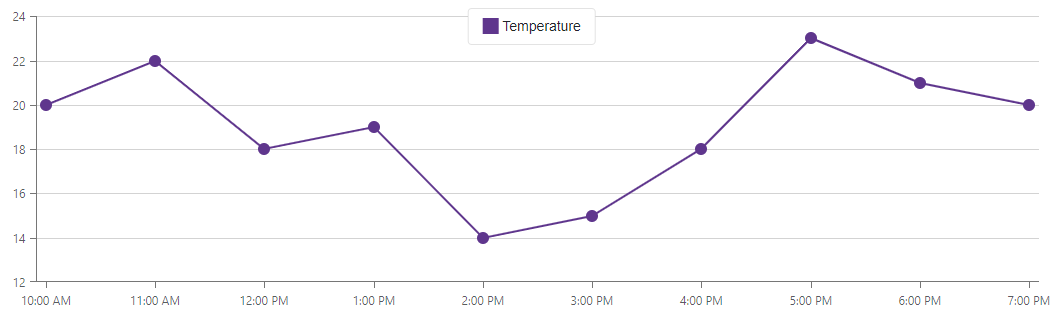

Formatted axis

See Also
