ChartElementFormat.Hour Property

Displays hours.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.2.dll

NuGet Package: DevExpress.Blazor

Declaration

public static ChartElementFormat Hour { get; }

Property Value

Type	Description
ChartElementFormat	A ChartElementFormat enumeration value.

Remarks

For small date ranges, the Chart component formats axis labels as follows:

• Displays the date, hours, minutes, and a time period (AM or PM) under the first tick.
• Hides the date under other ticks.

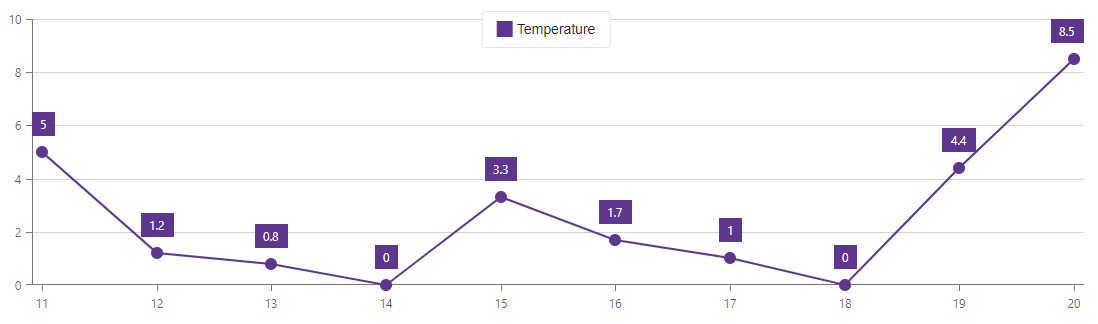

Use the Hour property to display only hours and hide the date for the first tick, for example, 11, 12, and so on. You can use this property for axis and series labels. The following code snippet calls the method for the argument axis of the Chart:

<DxChart Data="@forecasts">
    <DxChartArgumentAxis>
        <DxChartAxisLabel Format='ChartElementFormat.Hour'></DxChartAxisLabel>
    </DxChartArgumentAxis>
    @* ... *@
</DxChart>
