DxChartAxisLabel.Alignment Property

Specifies the horizontal alignment for axis labels.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

#Declaration

C#
[Parameter]
public HorizontalAlignment Alignment { get; set; }

#Property Value

Type Description
HorizontalAlignment

A HorizontalAlignment enumeration value.

Available values:

Name Description
Center

Center alignment.

Left

Left alignment.

Right

Right alignment.

#Remarks

The Alignment property allows you to align axis labels relative to corresponding axis ticks. Center, Left, and Right alignment options are available.

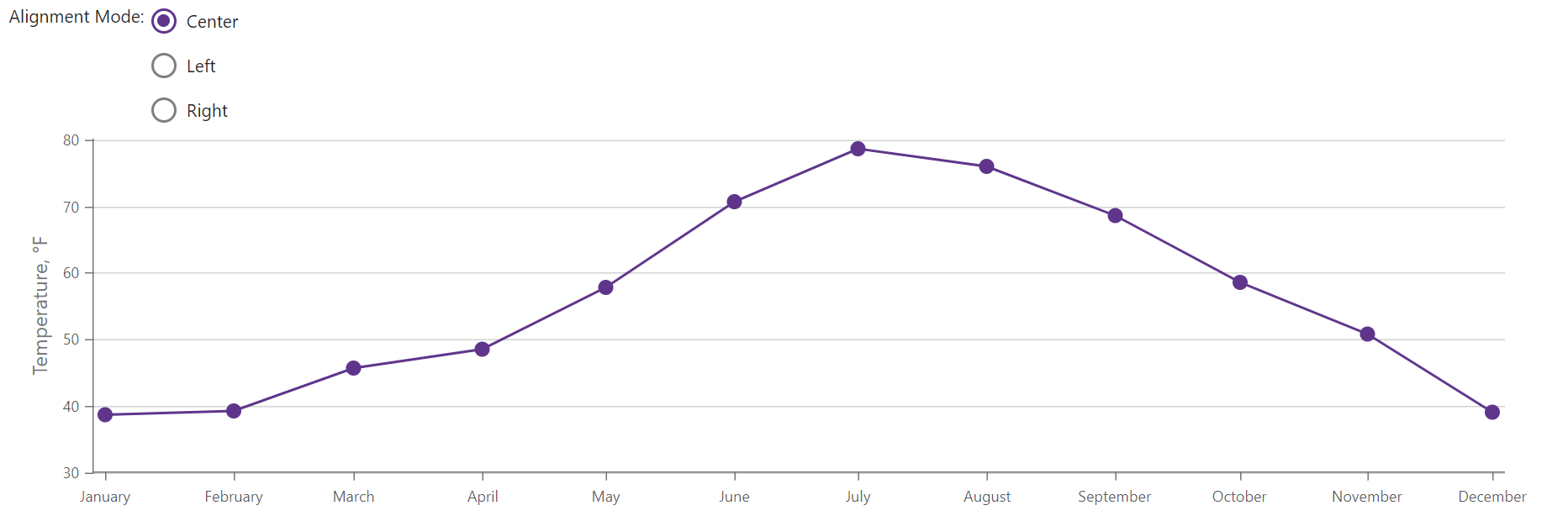

The following example changes axis label alignment:

razor
<div style="display:flex;">
    <label>Alignment Mode:</label>
    <DxRadioGroup Items="@(Enum.GetValues(typeof(HorizontalAlignment)).Cast<HorizontalAlignment>())"
                  @bind-Value="@Alignment" />
</div>

<DxChart Data="@WeatherForecasts"
         Width="100%" >
    <DxChartLineSeries SummaryMethod="@(i => i.Average())"
                       ValueField="@((DetailedWeatherSummary i) => i.AverageTemperatureF)"
                       ArgumentField="@(i => new DateTime(2000, i.Date.Month, 1))"
                       Name="Temperature, F"
                       Filter="@((DetailedWeatherSummary  i) => i.City == "NEW YORK")">
        <DxChartSeriesLabel Visible="false" />
    </DxChartLineSeries>
    <DxChartLegend Visible="false" />
    <DxChartValueAxis>
        <DxChartAxisTitle Text="Temperature, °F" />
    </DxChartValueAxis>
    <DxChartArgumentAxis>
        <DxChartAxisLabel Format="ChartElementFormat.Month"
                          Alignment=@Alignment/>
    </DxChartArgumentAxis>
</DxChart>

@code {
    IEnumerable<DetailedWeatherSummary> WeatherForecasts;

    protected override async Task OnInitializedAsync() {
        WeatherForecasts = await WeatherSummaryDataProvider.GetDataAsync();
    }

    HorizontalAlignment Alignment { get; set; } = HorizontalAlignment.Center;
}
