DxChartAxisLabel.StaggeringSpacing Property

Specifies the space between two rows of axis labels when the Overlap or DisplayMode property is set to Stagger.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.1.dll

NuGet Package: DevExpress.Blazor

Declaration

[DefaultValue(5)]
[Parameter]
public double StaggeringSpacing { get; set; }

Property Value

Type	Default	Description
Double	5	The space between two rows of labels in pixels.

Remarks

The StaggeringSpacing property allows you to specify the space between two rows of axis labels. To enable staggered arrangement, set the Overlap or DisplayMode property to Stagger. Note that the value Stagger applies to horizontal axes only.

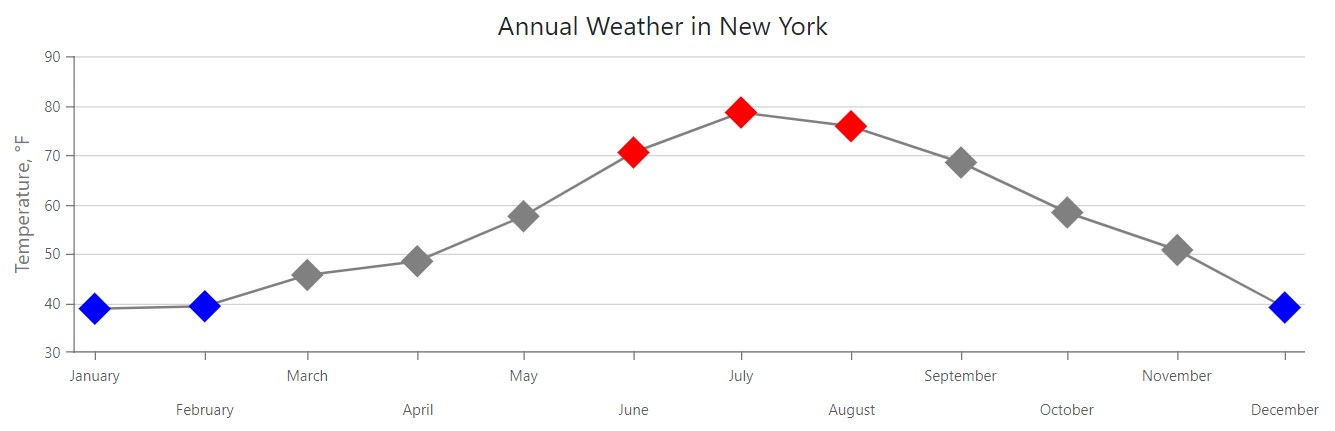

The following example arranges axis labels in two staggered rows:

<DxChart Data="@WeatherForecasts">
    <DxChartTitle Text="Annual Weather in New York" />
    <DxChartLineSeries SummaryMethod="@(i => i.Average())"
                       Color="@Color.Gray"
                       ValueField="@((DetailedWeatherSummary i) => i.AverageTemperatureF)"
                       ArgumentField="@(i => new DateTime(2000, i.Date.Month, 1))"
                       Name="Temperature, °F"
                       Filter="@((DetailedWeatherSummary  i) => i.City == "NEW YORK")">
        @* ... *@
    </DxChartLineSeries>
    <DxChartLegend Visible="false" />
    <DxChartValueAxis>
        <DxChartAxisTitle Text="Temperature, °F" />
    </DxChartValueAxis>
    <DxChartArgumentAxis>
        <DxChartAxisLabel Format="ChartElementFormat.Month"
                          DisplayMode="ChartAxisLabelDisplayMode.Stagger"
                          StaggeringSpacing="10" />
    </DxChartArgumentAxis>
</DxChart>

Run Demo: Chart - Label Overlap
