DxChart<T>.SelectSeries(String) Method

Selects a series with the specified name.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.2.dll

NuGet Package: DevExpress.Blazor

Declaration

public void SelectSeries(
    string seriesName
)

Parameters

Name	Type	Description
seriesName	String	The series name.

Remarks

Set the DxChart.SeriesSelectionMode property to Single or Multiple to enable series selection in <DxChart>.

Call SelectSeries method overloads to select a specific chart series in code. For line and area series, the Chart component applies selection based on the corresponding SelectionMode property value:

• LineSeriesBase.SelectionMode
• AreaSeriesBase.SelectionMode
• RangeAreaSeries.SelectionMode

To deselect a series in code, call DeselectSeries method overloads. You can also call the ClearSelectionAsync() method to reset selection in the entire Chart component.

When you call SelectSeries or DeselectSeries method overloads, <DxChart> raises the SelectionChanged event. You can obtain information about the selected series in the event handler.

Example

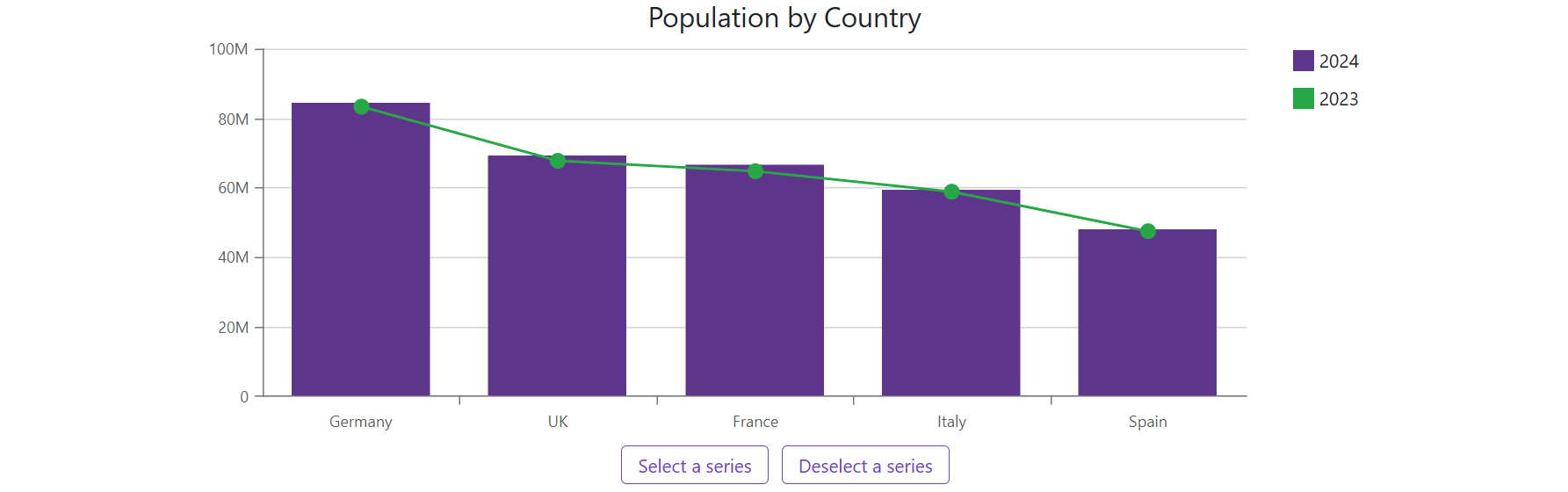

The following code snippet selects and deselects the specified chart series on button clicks:

Razor

<DxChart Data="@DataSource"
         @ref="chart"
         SeriesSelectionMode="ChartSelectionMode.Single">
    <DxChartBarSeries ArgumentField="@((StatisticPoint v) => v.Country)"
                      ValueField="@((StatisticPoint v) => v.Population24)"
                      Name="2024" />
    <DxChartLineSeries ArgumentField="@((StatisticPoint v) => v.Country)"
                       ValueField="@((StatisticPoint v) => v.Population23)"
                       Name="2023" />
    <DxChartLegend Orientation="Orientation.Vertical"
                   HorizontalAlignment="HorizontalAlignment.Right"
                   Position="RelativePosition.Outside" />
    <DxChartTitle Text="Population by Country" />
</DxChart>

<DxButton Text="Select a series"
          Click="SelectSeries"
          RenderStyleMode="ButtonRenderStyleMode.Outline" />
<DxButton Text="Deselect a series"
          Click="DeselectSeries"
          RenderStyleMode="ButtonRenderStyleMode.Outline" />

@code {
    DxChart<StatisticPoint> chart;
    IEnumerable<StatisticPoint> DataSource = Enumerable.Empty<StatisticPoint>();
    protected override void OnInitialized() {
        DataSource = GenerateData();
    }

    void SelectSeries() {
        // Pass the series index (order) as a parameter
        chart.SelectSeries(1);
        // Pass the series name as a parameter
        chart.SelectSeries("2023");
    }
    void DeselectSeries() {
        // Pass the series index (order) as a parameter
        chart.DeselectSeries(1);
        // Pass the series name as a parameter
        chart.DeselectSeries("2023");
    }
}

DataSource

public static List<StatisticPoint> GenerateData() {
    return new List<StatisticPoint>() {
        new StatisticPoint("Germany", 84552242, 83294633),
        new StatisticPoint("UK", 69138192, 67736802),
        new StatisticPoint("France", 66548530, 64756584),
        new StatisticPoint("Italy", 59342867, 58870763),
        new StatisticPoint("Spain", 47910526, 47519628),
    };
}
public class StatisticPoint {
    public string Country { get; set; }
    public int Population24 { get; set; }
    public int Population23 { get; set; }
    public StatisticPoint(string country, int population24, int population23) {
        Country = country;
        Population24 = population24;
        Population23 = population23;
    }
}
