  • DxFilterBuilder.SizeMode Property

    Specifies the size of the Filter Builder component and its inner elements.

    Namespace: DevExpress.Blazor

    Assembly: DevExpress.Blazor.v25.1.dll

    NuGet Package: DevExpress.Blazor

    Declaration

    [DefaultValue(null)]
    [Parameter]
    public SizeMode? SizeMode { get; set; }

    Property Value

    Type Default Description
    Nullable<SizeMode> null

    The size mode. If the property is not specified (the value is null), the size is determined by the SizeMode global option.

    Available values:

    Name Description
    Small

    Small size.

    Medium

    Medium size.

    Large

    Large size.

    Remarks

    The SizeMode property allows you to apply different size modes to the <DxFilterBuilder> component and its items:

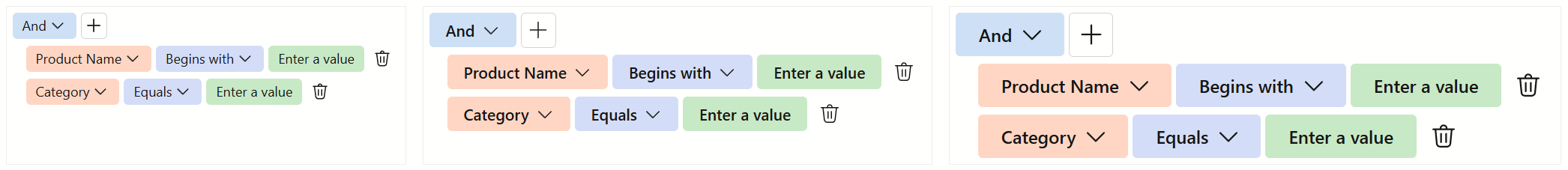

    Filter Builder - Size Modes

    <div style="margin:20px;display:flex;">
        <div style="margin-right:15px;padding:5px;border:1px solid #eeeeee;">
            <DxFilterBuilder SizeMode="SizeMode.Small">
                <Fields>
                    <DxFilterBuilderField FieldName="ProductName" Caption="Product Name" Type="@typeof(string)" />
                    <DxFilterBuilderField FieldName="CategoryId" Caption="Category" Type="@typeof(int)" />
                </Fields>
            </DxFilterBuilder>
        </div>
        <div style="margin-right:15px;padding:5px;border:1px solid #eeeeee;">
            <DxFilterBuilder SizeMode="SizeMode.Medium">
                <Fields>
                    <DxFilterBuilderField FieldName="ProductName" Caption="Product Name" Type="@typeof(string)" />
                    <DxFilterBuilderField FieldName="CategoryId" Caption="Category" Type="@typeof(int)" />
                </Fields>
            </DxFilterBuilder>
        </div>
        <div style="padding:5px;border:1px solid #eeeeee;">
            <DxFilterBuilder SizeMode="SizeMode.Large">
                <Fields>
                    <DxFilterBuilderField FieldName="ProductName" Caption="Product Name" Type="@typeof(string)" />
                    <DxFilterBuilderField FieldName="CategoryId" Caption="Category" Type="@typeof(int)" />
                </Fields>
            </DxFilterBuilder>
        </div>
    </div>
