DxChartSeriesLabel.ShowForZeroValues Property

Specifies whether to show labels for series points with zero values.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v25.1.dll

NuGet Package: DevExpress.Blazor

Declaration

C#

[DefaultValue(true)]
[Parameter]
public bool ShowForZeroValues { get; set; }

Property Value

Type	Default	Description
Boolean	true	true to show labels for series points with zero values; otherwise, false.

Remarks

Set the ShowForZeroValues property to false to hide labels for series points with zero values.

Note

The ShowForZeroValues property affects bar-based series in DxChart and DxPolarChart components.

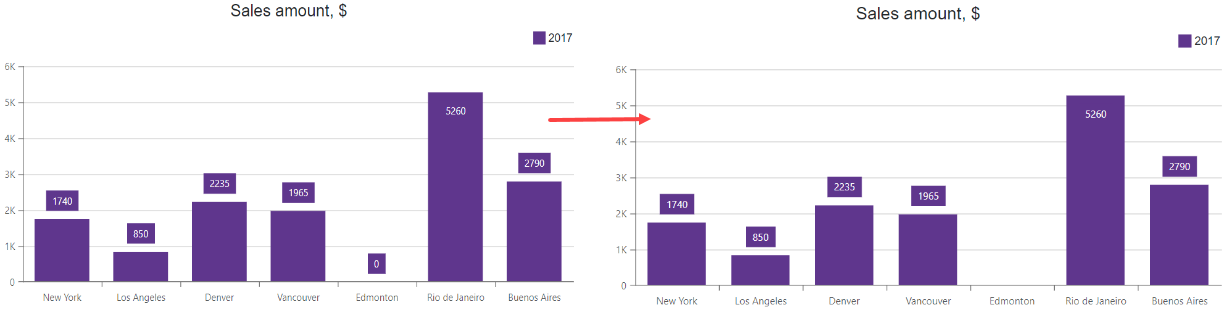

The following example hides the label for the bar with a zero sales amount value:

Razor

<DxChart Data="@SalesData">
    <DxChartTitle Text="Sales amount, $" />
    <DxChartBarSeries Name="2017"
                      Filter="@((SaleInfo s) => s.Date.Year == 2017)"
                      ArgumentField="@(s => s.City)"
                      ValueField="@(s => s.Amount)"
                      SummaryMethod="Enumerable.Sum">
         <DxChartSeriesLabel Visible="true"
                             Position="RelativePosition.Outside"
                             ShowForZeroValues="false"/>
    </DxChartBarSeries>
    <DxChartLegend Position="RelativePosition.Outside"
                   HorizontalAlignment="HorizontalAlignment.Right" />
</DxChart>

@code {
    IEnumerable<SaleInfo> SalesData;

    protected override async Task OnInitializedAsync() {
        SalesData = await Sales.GetSalesAsync();
    }
}

Sales.cs

namespace Char.Data {

    public class SaleInfo {
        public int OrderId { get; set; }
        public string Region { get; set; }
        public string Country { get; set; }
        public string City { get; set; }
        public int Amount { get; set; }
        public DateTime Date { get; set; }
    }
    public class Sales {
        static IList<SaleInfo> dataSource;
        static Sales() {
            CreateDataSource();
        }

        public static Task<IQueryable<SaleInfo>> GetSalesAsync() {
            return Task.FromResult(dataSource.AsQueryable());
        }

        static void CreateDataSource() {
            dataSource = new List<SaleInfo> {
                new SaleInfo {
                    OrderId = 10248,
                    Region = "North America",
                    Country = "United States",
                    City = "New York",
                    Amount = 1740,
                    Date = DateTime.Parse("2017/01/06")
                },
                new SaleInfo {
                    OrderId = 10249,
                    Region = "North America",
                    Country = "United States",
                    City = "Los Angeles",
                    Amount = 850,
                    Date = DateTime.Parse("2017/01/13")
                },
                new SaleInfo {
                    OrderId = 10250,
                    Region = "North America",
                    Country = "United States",
                    City = "Denver",
                    Amount = 2235,
                    Date = DateTime.Parse("2017/01/07")
                },
                new SaleInfo {
                    OrderId = 10251,
                    Region = "North America",
                    Country = "Canada",
                    City = "Vancouver",
                    Amount = 1965,
                    Date = DateTime.Parse("2017/01/03")
                },
                new SaleInfo {
                    OrderId = 10252,
                    Region = "North America",
                    Country = "Canada",
                    City = "Edmonton",
                    Amount = 0,
                    Date = DateTime.Parse("2017/01/10")
                },
                new SaleInfo {
                    OrderId = 10253,
                    Region = "South America",
                    Country = "Brazil",
                    City = "Rio de Janeiro",
                    Amount = 5260,
                    Date = DateTime.Parse("2017/01/17")
                },
                new SaleInfo {
                    OrderId = 10254,
                    Region = "South America",
                    Country = "Argentina",
                    City = "Buenos Aires",
                    Amount = 2790,
                    Date = DateTime.Parse("2017/01/21")
                },
            };
        }
    }
}
