  • ChartAxisInterval.Numeric(Double) Method

    Specifies the interval between two ticks for Continuous axes with numeric values.

    Namespace: DevExpress.Blazor

    Assembly: DevExpress.Blazor.v25.1.dll

    NuGet Package: DevExpress.Blazor

    Declaration

    public static ChartAxisInterval Numeric(
        double interval
    )

    Parameters

    Name Type Description
    interval Double

    The distance between ticks.

    Returns

    Type Description
    ChartAxisInterval

    A ChartAxisInterval structure object.

    Remarks

    The Chart automatically calculates the interval between major and minor ticks based on the axis values. Use the TickInterval and MinorTickInterval properties to specify custom intervals.

    Use the Numeric method to specify the distance in numeric values. You can also omit the method call and pass the value to the property directly. In this case, the Chart automatically converts this value to the ChartAxisInterval enumeration value.

    The following example shows both variants how to specify the numeric tick interval:

    <DxChart Data="@forecasts">
        <DxChartLineSeries ArgumentField="@((WeatherForecast i) => i.Date)"
                           ValueField="@((WeatherForecast i) => i.TemperatureC)"
                           Name="Temperature, C" />
        <DxChartLineSeries ArgumentField="@((WeatherForecast i) => i.Date)"
                           ValueField="@((WeatherForecast i) => i.TemperatureF)"
                           Name="Temperature, F" />
        @* The following markups of the value axis are equivalent *@
        <DxChartValueAxis TickInterval="ChartAxisInterval.Numeric(12)"
                          MinorTickInterval="ChartAxisInterval.Numeric(3)">
            <DxChartAxisMinorTick Visible="true" />
        </DxChartValueAxis>
        <DxChartValueAxis TickInterval="12"
                          MinorTickInterval="3">
            <DxChartAxisMinorTick Visible="true" />
        </DxChartValueAxis>
    </DxChart>

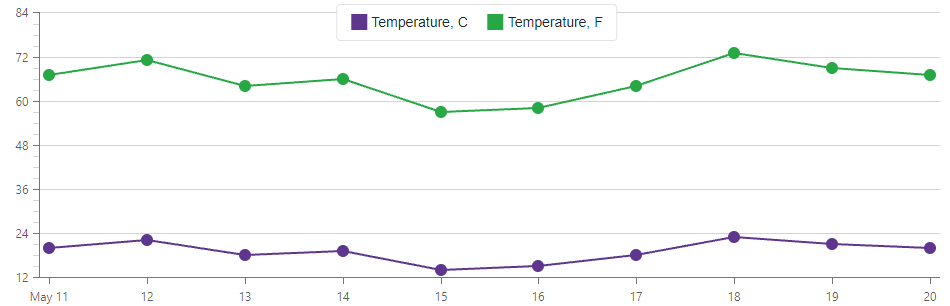

    Tick Interval in Quarters
