ChartAxisInterval.Minutes(Int32) Method

Returns the interval between two ticks of the specified number of minutes.

Namespace: DevExpress.Blazor

Assembly: DevExpress.Blazor.v24.1.dll

NuGet Package: DevExpress.Blazor

Declaration

public static ChartAxisInterval Minutes(
    int interval
)

Parameters

Name	Type	Description
interval	Int32	The number of minutes.

Returns

Type	Description
ChartAxisInterval	A ChartAxisInterval structure object.

Remarks

The Chart automatically calculates the interval between major and minor ticks based on the axis values. Use the TickInterval and MinorTickInterval properties to specify custom intervals.

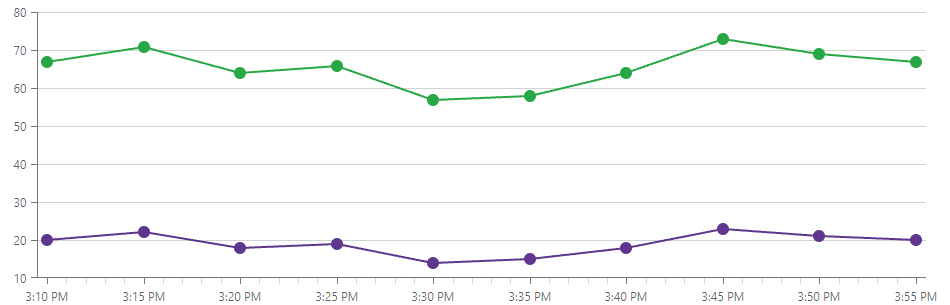

The following example sets the tick interval to 5 minutes for major ticks and one minute for minor ticks:

<DxChart Data="@forecasts">
    <DxChartLineSeries ArgumentField="@((WeatherForecast i) => i.Date)"
                       ValueField="@((WeatherForecast i) => i.TemperatureC)"
                       Name="Temperature, C" />
    <DxChartLineSeries ArgumentField="@((WeatherForecast i) => i.Date)"
                       ValueField="@((WeatherForecast i) => i.TemperatureF)"
                       Name="Temperature, F" />
    <DxChartArgumentAxis TickInterval="ChartAxisInterval.Minutes(5)"
                         MinorTickInterval="ChartAxisInterval.Minute">
        <DxChartAxisMinorTick Visible="true" />
    </DxChartArgumentAxis>
    <DxChartLegend Visible="false" />
</DxChart>
